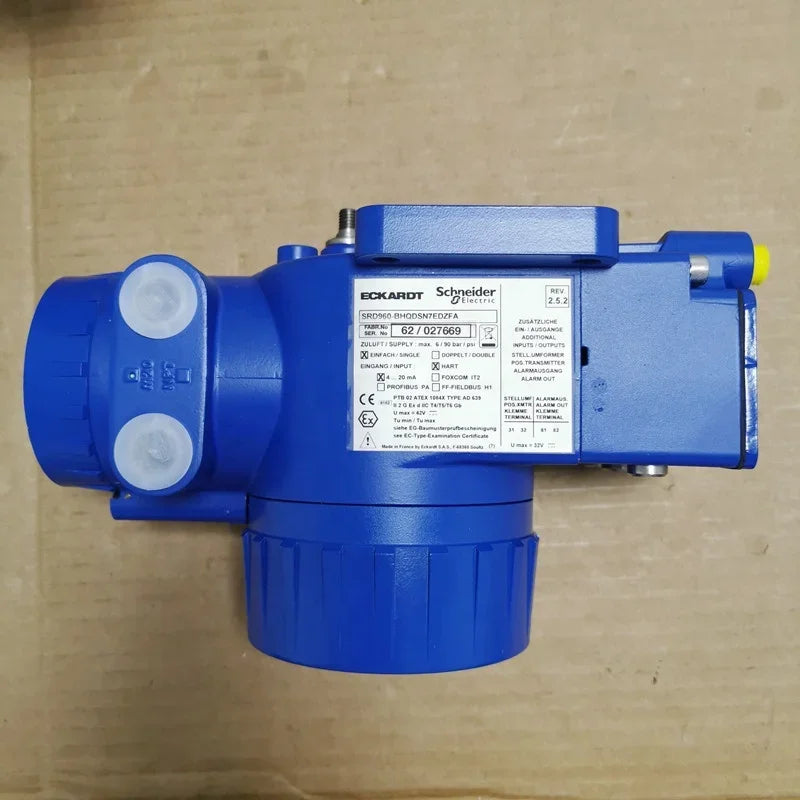

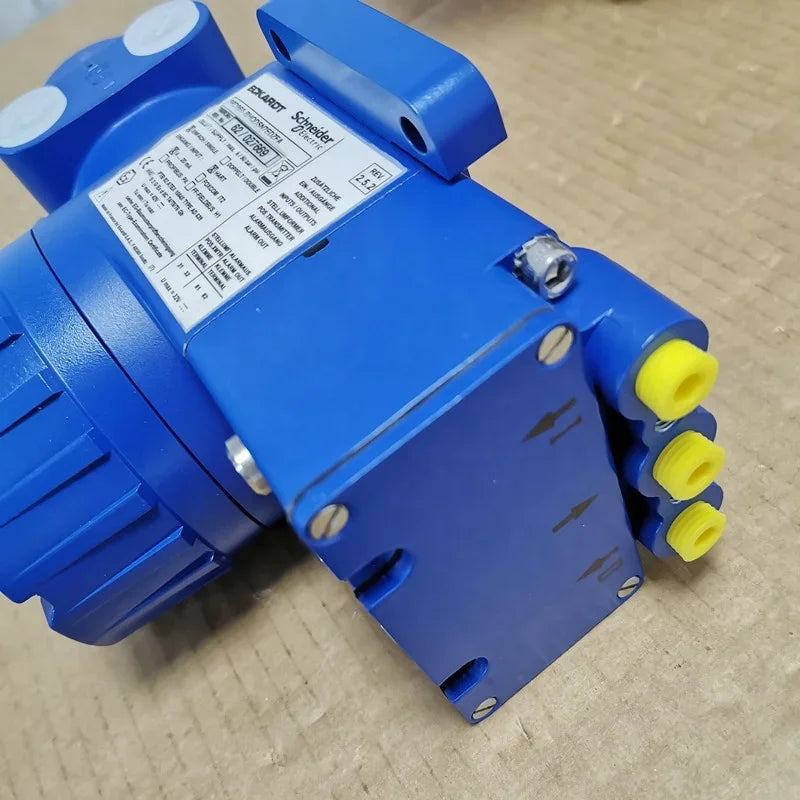

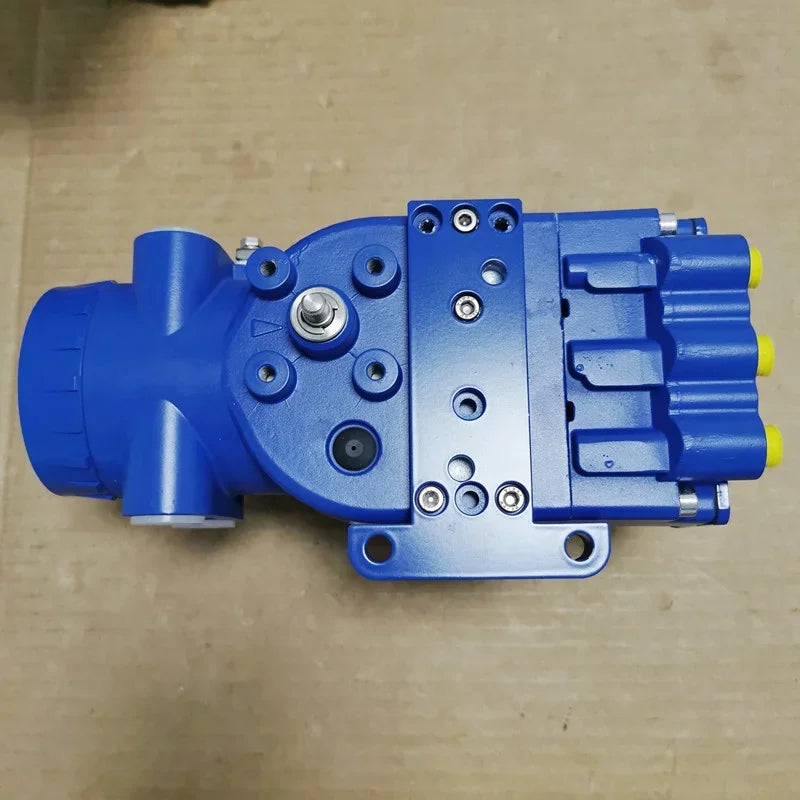

Schneider Foxboro Eckardt SRD960-BHQDSN7EDZFA Intelligent Digital Valve Positioner
The Schneider Electric Foxboro Eckardt SRD960-BHQDSN7EDZFA Intelligent Digital Valve Positioner is designed for accurate positioning and automated control of pneumatic valve actuators in industrial process systems.
- 1.4–6 Bar (20–90 psi) Supply Air Pressure
- Single Acting and Double Acting Pneumatic Operation, Series
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Schneider Electric Foxboro Eckardt SRD960-BHQDSN7EDZFA Intelligent Digital Valve Positioner is designed for accurate positioning and automated control of pneumatic valve actuators in industrial process systems. Part of the Foxboro SRD960 series, this intelligent electropneumatic positioner continuously monitors valve movement and adjusts pneumatic output pressure to maintain the required valve position. Its microprocessor-based technology supports precise flow regulation, responsive actuator movement, and dependable control in demanding industrial environments.
The SRD960 series combines automatic calibration, self-diagnostics, electronic position monitoring, and local configuration through a graphical display. Depending on the ordered configuration, the series supports HART, PROFIBUS PA, or FOUNDATION Fieldbus communication. Its robust industrial enclosure and compatibility with linear and rotary pneumatic actuators make it suitable for oil and gas facilities, chemical processing plants, power generation, water treatment, and manufacturing applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
Schneider Electric / Foxboro Eckardt |
|
Main Model |
SRD960-BHQDSN7EDZFA |
|
Series |
SRD960 |
|
Product Type |
Intelligent Digital Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Positioning Function |
Automatic Pneumatic Valve Position Control |
|
Communication Options, Series |
HART, PROFIBUS PA, FOUNDATION Fieldbus |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Pneumatic Operation, Series |
Single Acting and Double Acting |
|
Supply Air Pressure |
1.4–6 Bar (20–90 psi) |
|
Maximum Supply Pressure |
6 Bar |
|
Linear Stroke Range |
8–260 mm |
|
Rotary Operating Angle |
0–95° |
|
Housing Material |
Aluminium Alloy |
|
Enclosure Protection |
IP66 / NEMA 4X |
|
Linearity |
Less Than 0.4% of Travel Span |
|
Maximum Hysteresis |
0.3% |
|
Ambient Operating Temperature |
−40°C to +80°C |
|
Calibration |
Automatic Calibration |
|
Local Interface |
Graphical LCD and Configuration Keys |
|
Diagnostics |
Self-Diagnostics and Valve Performance Monitoring |
|
Advanced Diagnostics |
Available According to Configuration |
|
Safety Applications |
SRD960 Series Supports SIL 3 Applications, Subject to Certification |
|
Pneumatic Connection Options |
G 1/4 or 1/4 Inch NPT |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Related Model |
SRI986-BIDS7ZZZNA |
|
Related Model |
SRI986-BIDS7FAANA |
|
Application Scope |
Industrial Pneumatic Valve Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital positioning for precise control of industrial pneumatic valve actuators.
-
Microprocessor-based control system for responsive and repeatable valve movement.
-
Automatic calibration for simplified installation and commissioning.
-

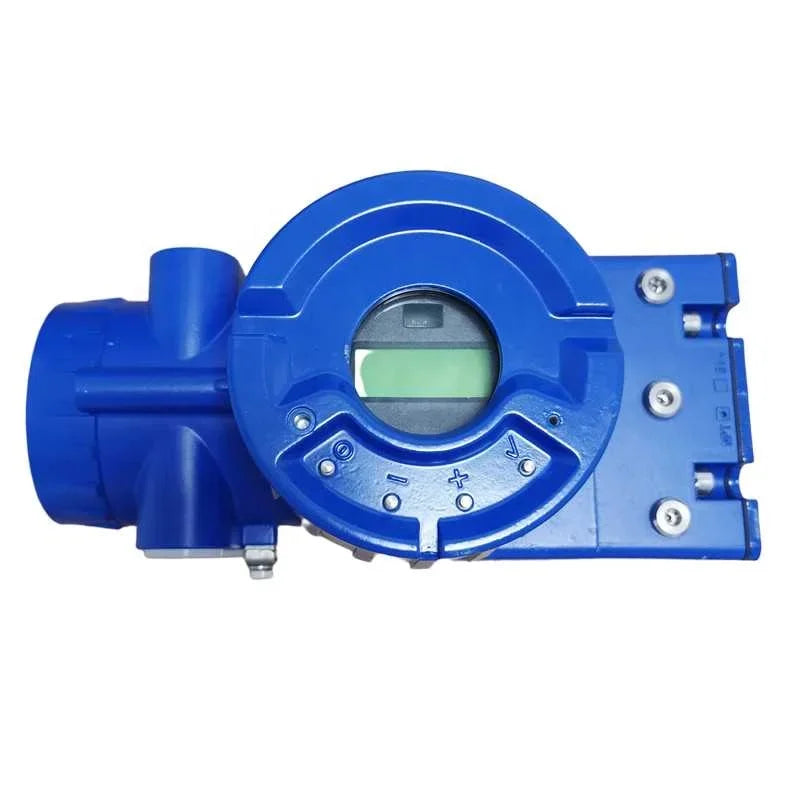

Integrated graphical display for local configuration and instrument monitoring.
-
Self-diagnostic functions for identifying positioner faults and operating abnormalities.
-
Advanced valve performance diagnostics available within the SRD960 family.
-
Supports compatible industrial digital communication systems according to the installed configuration.
-
Pneumatic supply pressure range of 1.4–6 bar.
-
Compatible with suitable linear and rotary pneumatic actuator assemblies.
-
Durable aluminium alloy construction for industrial environments.
-
IP66 / NEMA 4X protection against dust and water ingress.
-
Low hysteresis and high positioning accuracy for industrial control applications.
-
Supports valve travel monitoring and actuator performance assessment.
-
Configurable positioner operation to suit compatible valve and actuator characteristics.
-
Suitable for preventive maintenance and process instrumentation upgrades.
Typical Applications
-
Industrial process automation systems
-
Pneumatic control valve assemblies
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Petroleum refining installations
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Rotary ball and butterfly valve automation
-
Linear globe valve positioning
-
Industrial flow and pressure regulation
-
Distributed control systems
-
Valve performance monitoring and maintenance
-
Industrial instrumentation replacement projects
