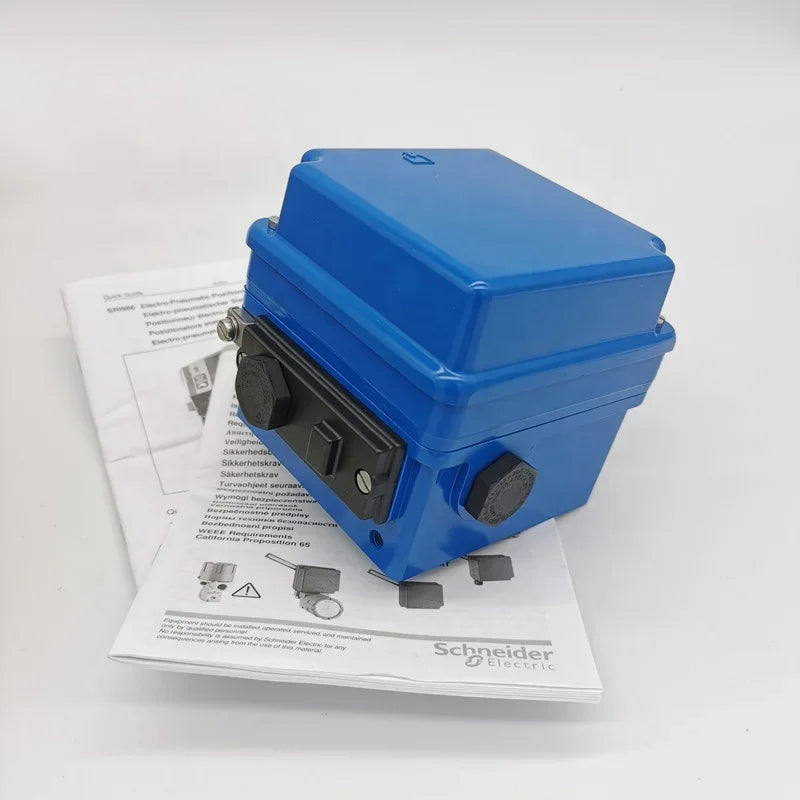

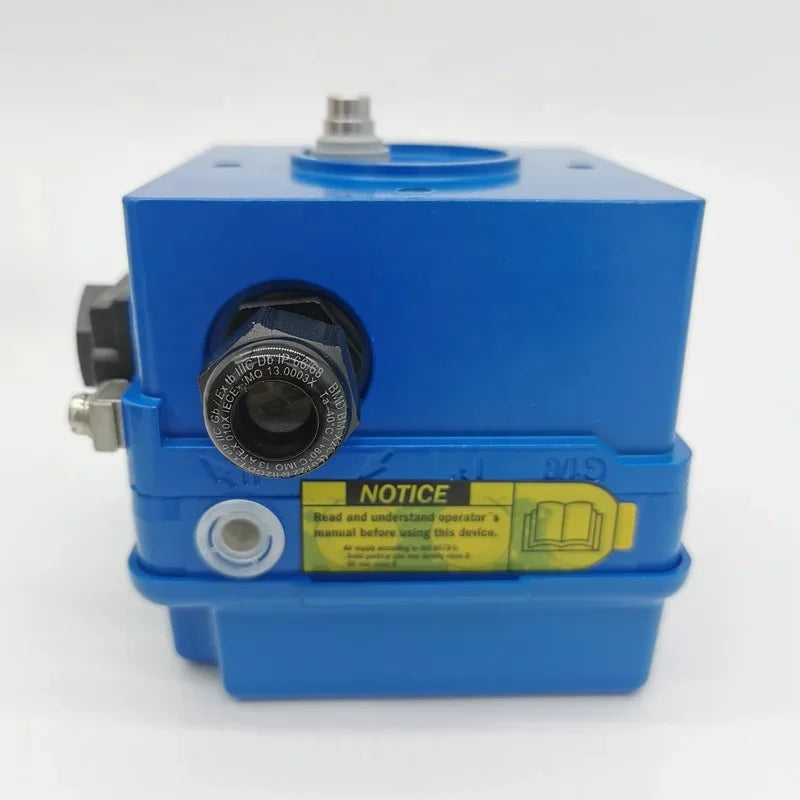

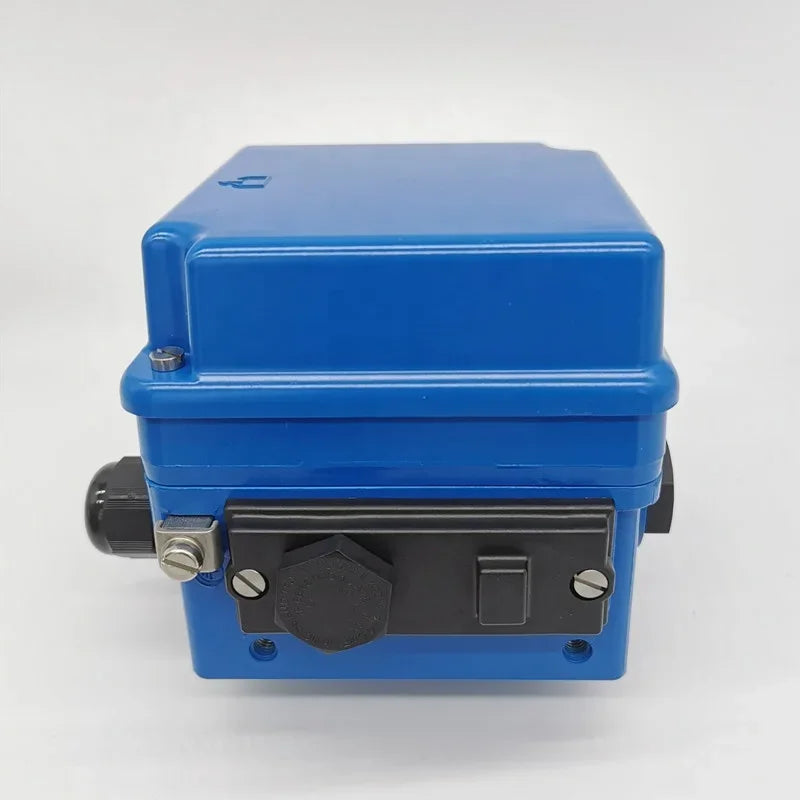

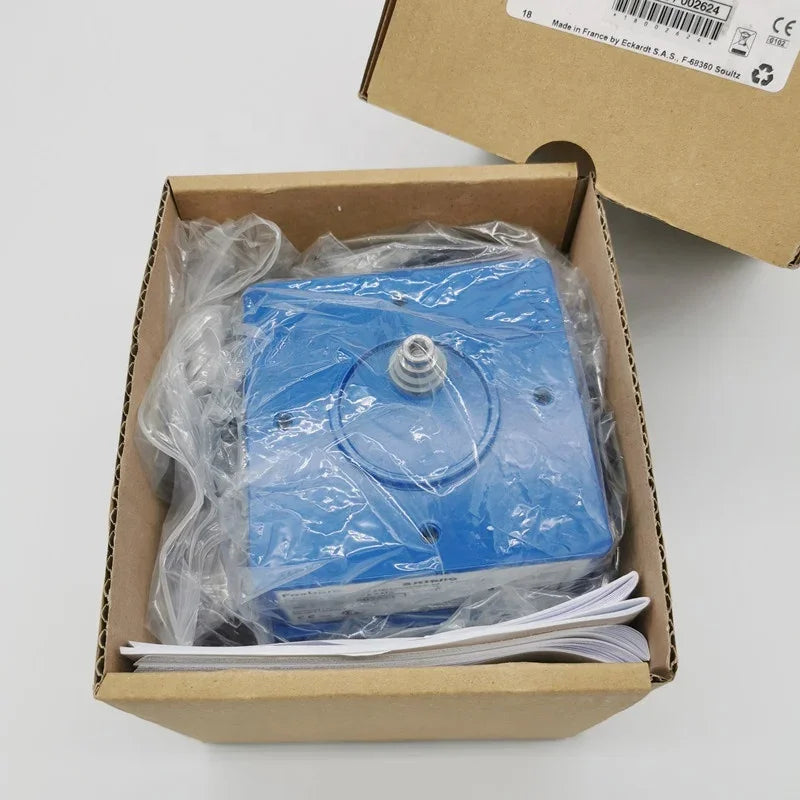

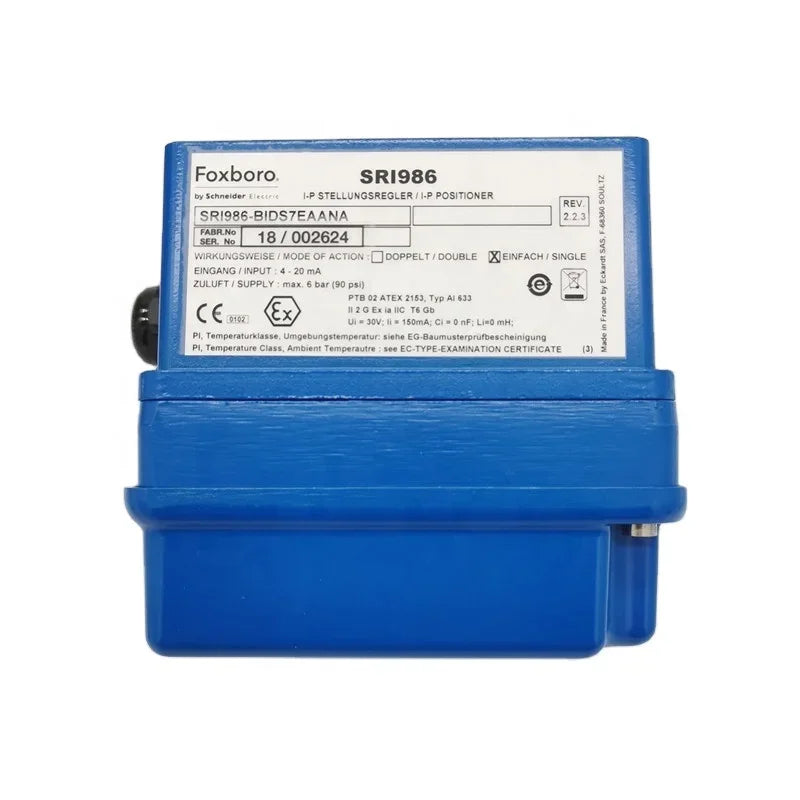

Foxboro Eckardt SRI986-BIDS7ZZZNA Electro pneumatic Valve Positioner
The Foxboro Eckardt SRI986-BIDS7ZZZNA Electropneumatic Valve Positioner is designed for accurate positioning and automatic control of pneumatic valve actuators in industrial process systems.
- Single Acting Actuator Configuration
- 1.4–6 Bar (20–90 psi) Pneumatic Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Foxboro Eckardt SRI986-BIDS7ZZZNA Electropneumatic Valve Positioner is designed for accurate positioning and automatic control of pneumatic valve actuators in industrial process systems. Manufactured under the Foxboro Eckardt brand, associated with Schneider Electric, this analogue positioner operates using a 4–20 mA electrical control signal to regulate pneumatic output pressure and maintain precise valve positioning. Its mechanical feedback system supports stable flow regulation, responsive actuator movement, and reliable industrial process control.
Part of the SRI986 Series, the BIDS7ZZZNA features a single-acting pneumatic configuration, direct-acting control, adjustable zero and span, and independent gain and damping adjustments. Its aluminium housing, M20 × 1.5 electrical cable entry, and G 1/8 pneumatic connections support installation on compatible linear and rotary actuators. The positioner is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
Foxboro Eckardt / Schneider Electric |
|
Model Number |
SRI986-BIDS7ZZZNA |
|
Product Series |
SRI986 |
|
Product Type |
Analogue Electropneumatic Valve Positioner |
|
Electrical Input |
4–20 mA DC |
|
Communication Protocol |
Analogue, No HART |
|
Actuator Configuration |
Single Acting |
|
Control Action |
Direct Acting |
|
Input Resistance |
Less Than 200 Ω |
|
Pneumatic Supply Pressure |
1.4–6 Bar (20–90 psi) |
|
Pneumatic Connections |
G 1/8 |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Cable Gland |
Plastic, Grey |
|
Valve Travel Range |
8–100 mm, Standard |
|
Rotary Travel Range |
30–120° |
|
Mounting Standards |
NAMUR / VDI/VDE 3845 |
|
Calibration |
Adjustable Zero and Span |
|
Gain and Damping |
Independently Adjustable |
|
Split-Range Control |
Up to Threefold |
|
Electrical Certification |
Standard, No Hazardous-Area Approval |
|
Enclosure Protection |
IP54; IP65 Optional |
|
Operating Temperature |
−40°C to +80°C, Subject to Version |
|
Approximate Weight |
1.5 kg |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Related Model |
SRI986-BIDS7EAANA |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Standard 4–20 mA analogue electropneumatic control
Single-acting pneumatic output configuration
Direct-acting control for responsive valve operation
Adjustable zero and span for simplified calibration
Independent gain and damping adjustments
Supports split-range control configurations
Compatible with linear and rotary pneumatic actuators
Standard G 1/8 pneumatic connections
M20 × 1.5 electrical cable entry with plastic gland
Mechanical feedback for accurate valve positioning
Suitable for NAMUR and VDI/VDE 3845 mounting arrangements
Designed for reliable industrial process automation
Typical Applications
Industrial pneumatic control valve positioning
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing automation
Linear globe valve positioning
Rotary ball and butterfly valve control
Industrial flow and pressure regulation
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
