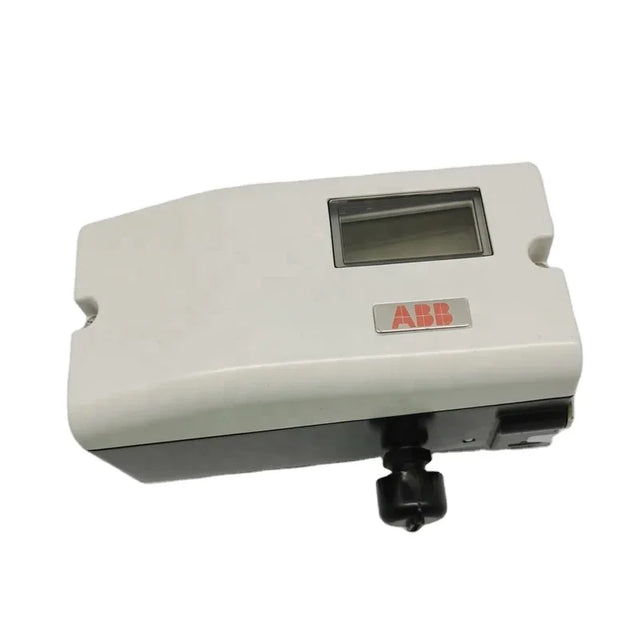

V18345-1020221001 TZIDC Intelligent Digital Valve Positioner
The ABB V18345-1020221001 TZIDC Intelligent Digital Valve Positioner is designed for precise positioning and automatic control of pneumatic valve actuators in industrial process systems.
- Single Acting Actuator Configuration
- 1.4–6 Bar (20–90 psi) Pneumatic Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The ABB V18345-1020221001 TZIDC Intelligent Digital Valve Positioner is designed for precise positioning and automatic control of pneumatic valve actuators in industrial process systems. Manufactured by ABB, this intelligent electropneumatic positioner uses a standard 4–20 mA electrical control signal to regulate pneumatic output pressure and maintain accurate valve positioning. Its microprocessor-based control system continuously monitors valve movement and adjusts the pneumatic signal to support stable flow regulation, responsive actuator operation, and reliable industrial process control.
Part of ABB's TZIDC series, the V18345-1020221001 features a single-acting pneumatic configuration with fail-freeze functionality, an integrated operator panel, and an optional-module configuration that includes analogue position feedback. Its aluminium housing, local LCD interface, automatic adjustment functions, and compatibility with linear and rotary pneumatic actuators make it suitable for industrial automation applications. The positioner includes an interface for HART communication through the appropriate FSK module, offering additional configuration and communication capabilities. It is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial control valve systems.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
ABB |
|
Model |
V18345-1020221001 |
|
Series |
TZIDC |
|
Product Type |
Intelligent Digital Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Input Signal |
4–20 mA DC |
|
Operating Mode |
Two-Wire |
|
Communication Interface |
LKS Adapter and FSK Module Interface for HART |
|
Actuator Configuration |
Single Acting |
|
Failure Mode |
Fail Freeze |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Pneumatic Supply Pressure |
1.4–6 Bar (20–90 psi) |
|
Pneumatic Output Pressure |
0–6 Bar (0–90 psi) |
|
Nominal Air Capacity |
3.9 Nm³/h |
|
Housing Material |
Aluminium |
|
Housing Finish |
Protective Varnish |
|
Mounting for Linear Actuators |
DIN / IEC 534 / NAMUR |
|
Mounting for Rotary Actuators |
VDI/VDE 3845 |
|
Electrical Cable Connection |
1/2-14 NPT |
|
Pneumatic Connection |
1/4-18 NPT |
|
Analogue Position Feedback |
4–20 mA, Two-Wire |
|
Explosion Protection Configuration |
Without Special Explosion Protection |
|
Local User Interface |
LCD Display and Operator Panel |
|
Position Measurement |
Electronic Actuator Position Feedback |
|
Calibration |
Automatic Adjustment |
|
Approximate Weight |
1.7 kg |
|
Working Medium |
Clean, Dry Instrument Air |
|
Application Scope |
Industrial Pneumatic Valve Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital valve positioning for accurate industrial pneumatic actuator control.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
Single-acting pneumatic configuration for compatible control valve actuators.
-
Fail-freeze function designed to retain the actuator pressure condition during specified electrical failures.
-
Integrated analogue position feedback module with a 4–20 mA output.
-
Microprocessor-based control technology for consistent and responsive valve positioning.
-
HART communication interface through a compatible FSK module.
-
Automatic adjustment functions for simplified installation and commissioning.
-
Integrated LCD display and operator panel for local configuration and monitoring.
-
Durable aluminium housing with a protective finish.
-
Pneumatic supply pressure range of 1.4–6 bar.
-
Standard 1/4-inch NPT pneumatic connections for compatible instrument air systems.
-
Standard 1/2-inch NPT electrical cable entry.
-
Compatible with linear pneumatic actuators using appropriate NAMUR mounting arrangements.
-
Supports rotary actuator installations using VDI/VDE 3845 mounting interfaces.
-
Electronic actuator position measurement for accurate valve travel control.
-
Suitable for industrial process instrumentation, control valve maintenance, and automated fluid handling systems.
Typical Applications
-
Industrial process automation systems
-
Single-acting pneumatic control valve assemblies
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Pneumatic linear actuator positioning
-
Rotary ball and butterfly valve automation
-
Industrial flow and pressure regulation systems
-
Distributed control systems
-
Industrial valve maintenance and replacement
-
Process instrumentation and control assemblies
-
Automated fluid handling and production equipment
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
