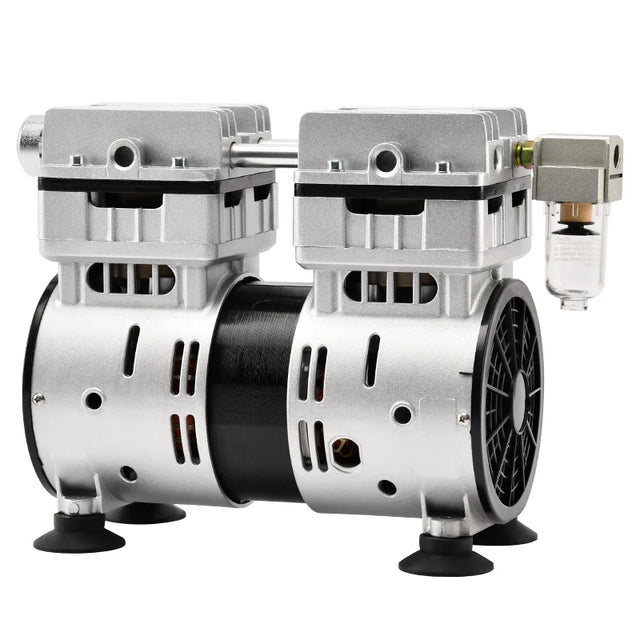

VN-120H YCZX Oil-Free Vacuum Pump, 80 L/min Piston Pump -99 kPa 370W
The VN-120H oil-free piston vacuum pump by YCZX is a portable and high-performance solution designed for HVAC and industrial vacuum applications.
- 0.49 HP Horsepower
- 80 L/min Pumping Speed
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The VN-120H oil-free piston vacuum pump by YCZX is a portable and high-performance solution designed for HVAC and industrial vacuum applications. Delivering an impressive vacuum level of -99 kPa, it ensures efficient air extraction and reliable system performance.
With its compact design and oil-free operation, this pump provides clean, low-maintenance performance, making it ideal for environments where contamination-free operation is essential.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Oil-Free Piston Vacuum Pump |
| Model | VN-120H |
| Brand | YCZX |
| Pump Type | Piston Vacuum Pump |
| Structure | Reciprocating (Piston) |
| Vacuum Level | -99 kPa |
| Pumping Speed | 80 L/min |
| Power Source | Electric |
| Voltage | 220V |
| Power | 370 W |
| Horsepower | 0.49 HP |
| Motor Type | AC Motor |
| Inner Diameter | 5 mm |
| Dimensions | 255 × 130 × 200 mm |
| Weight | 8 kg |
| Operation Type | Oil-Free |
| Customization | OEM, ODM, OBM Available |
| MOQ | 1 Piece |
| Application Scope | HVAC & Industrial |
| Warranty | 1 Year |
Key Features
- High vacuum performance up to -99 kPa
- Oil-free operation for clean and maintenance-free use
- Compact and portable design
- Efficient 370W AC motor
- Stable and reliable performance
- Suitable for continuous-duty applications
Typical Applications
- HVAC systems and servicing
- Industrial vacuum processes
- Air extraction and pressure systems
- Laboratory and technical equipment
- General-purpose vacuum applications
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
