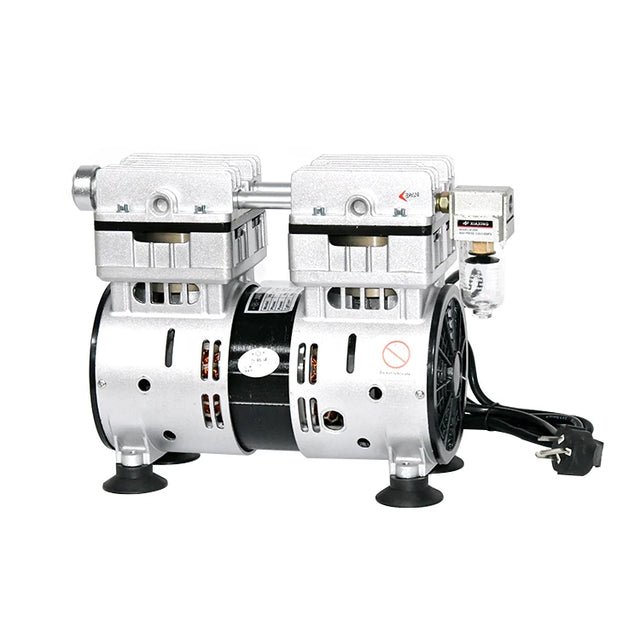

VN-180V Jianyue Oil-Free Silent Vacuum Pump, 160 L/min Dry Piston Pump -91 kPa
The VN-180V oil-free vacuum pump by Jianyue is a compact and efficient dry piston pump designed for quiet and reliable operation.
- -91 kPa Pressure
- 600 W Horsepower
- 160 L/min Pumping Speed
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 3 MonthsWarranty
Product Overview
The VN-180V oil-free vacuum pump by Jianyue is a compact and efficient dry piston pump designed for quiet and reliable operation. Engineered for applications such as robotic systems, coating machines, and light industrial use, it delivers consistent vacuum performance without the need for oil lubrication.
With its silent operation and maintenance-free design, this pump is ideal for environments where noise reduction and cleanliness are critical.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Oil-Free Vacuum Pump |
| Model | VN-180V |
| Brand | Jianyue |
| Pump Type | Dry Piston Vacuum Pump |
| Structure | Single-stage Pump |
| Pressure | -91 kPa |
| Pumping Speed | 160 L/min |
| Power Source | Electric |
| Voltage | 220V |
| Power | 600 W |
| Horsepower | 600 W |
| Material | Plastic |
| Weight | 10 kg |
| Dimensions | 25.5 × 13 × 21.5 cm |
| Operation Type | Oil-Free, Silent |
| Application Scope | Industrial & Domestic |
| Customization | OBM Available |
| Warranty | 3 Months |
Key Features
- Oil-free design for clean and maintenance-free operation
- Low-noise (silent) performance
- Stable vacuum up to -91 kPa
- Compact and lightweight structure
- Reliable dry piston technology
- Suitable for continuous-duty use
Typical Applications
- Robotic arms and automation systems
- Coating and processing machines
- Food and beverage handling
- Marine and light industrial systems
- Household and general-purpose vacuum use
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 3-month warranty
