VN-30-1 Jianyue Oil-Free Vacuum Pump, 20 L/min Mini Piston Pump -83 kPa
The VN-30-1 oil-free vacuum pump by Jianyue is a compact and lightweight piston pump designed for small-scale vacuum applications.
- -83 kPa Pressure
- 85 W Horsepower
- 20 L/min Pumping Speed
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 3 MonthsWarranty
Product Overview

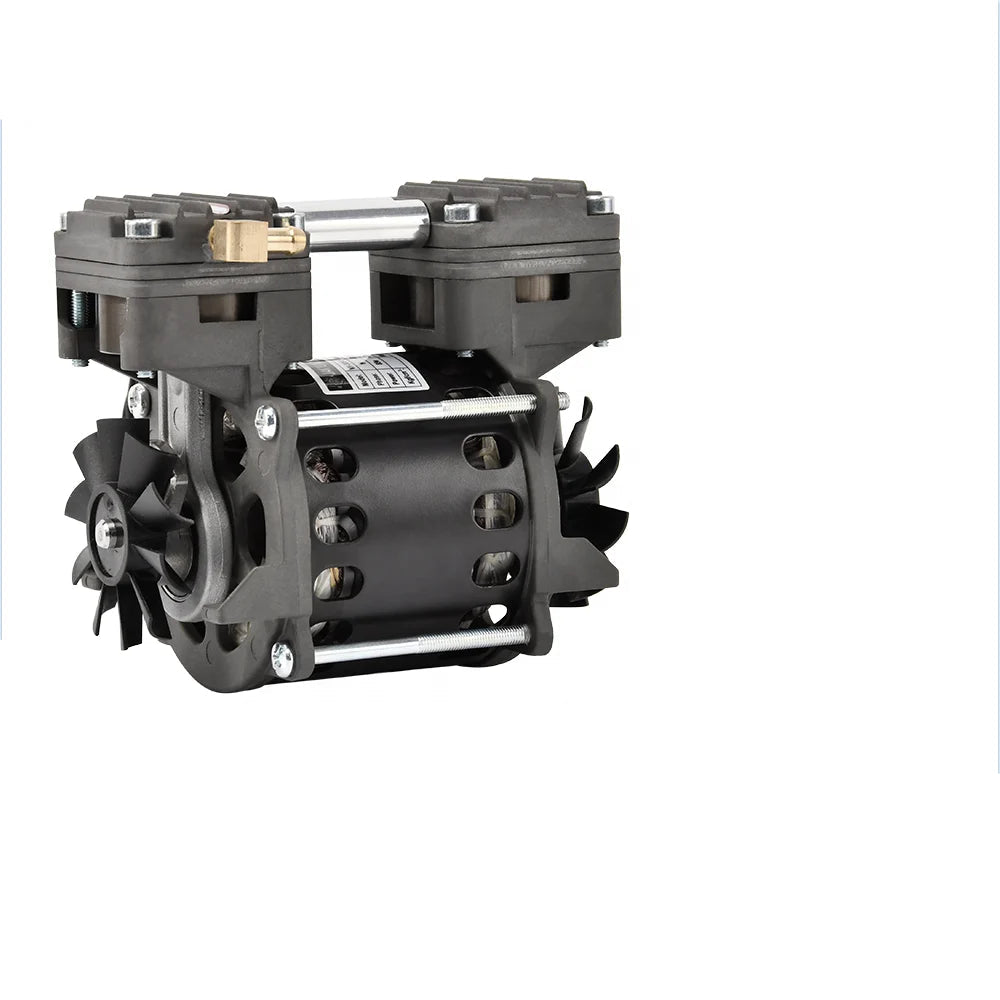

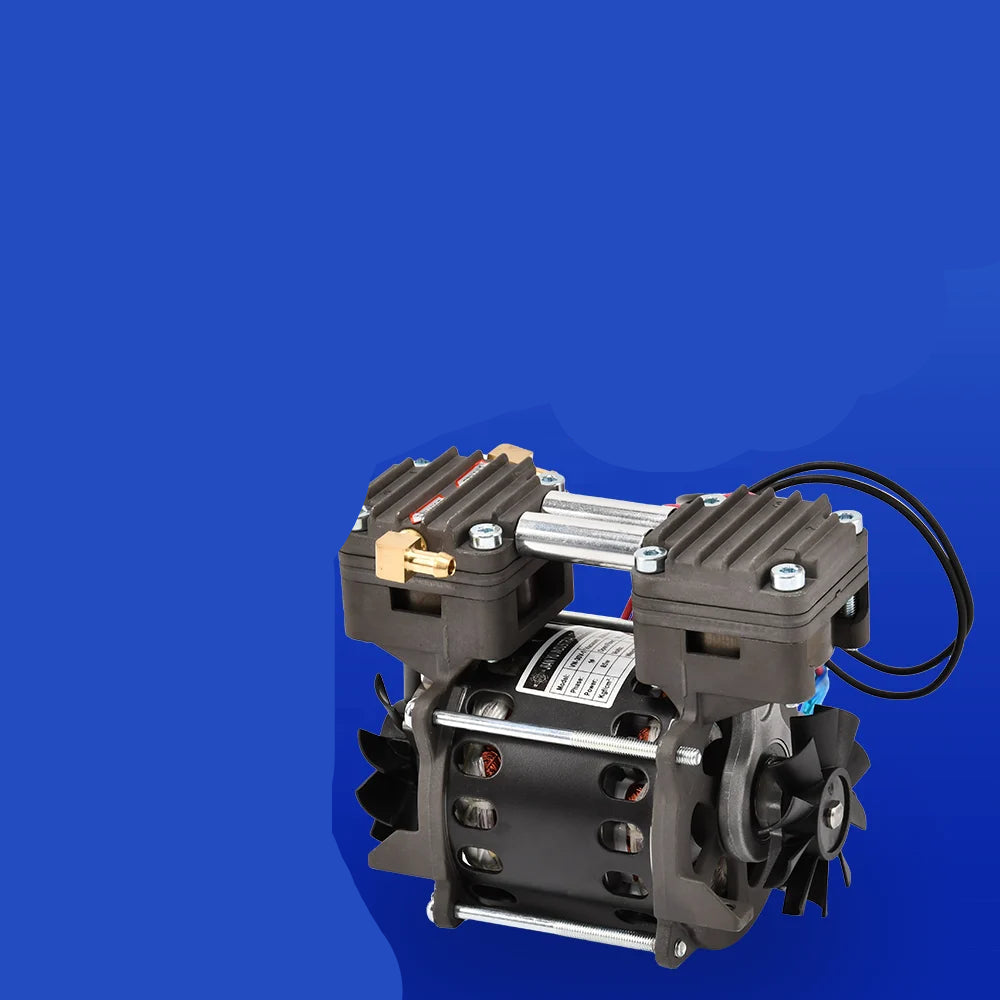

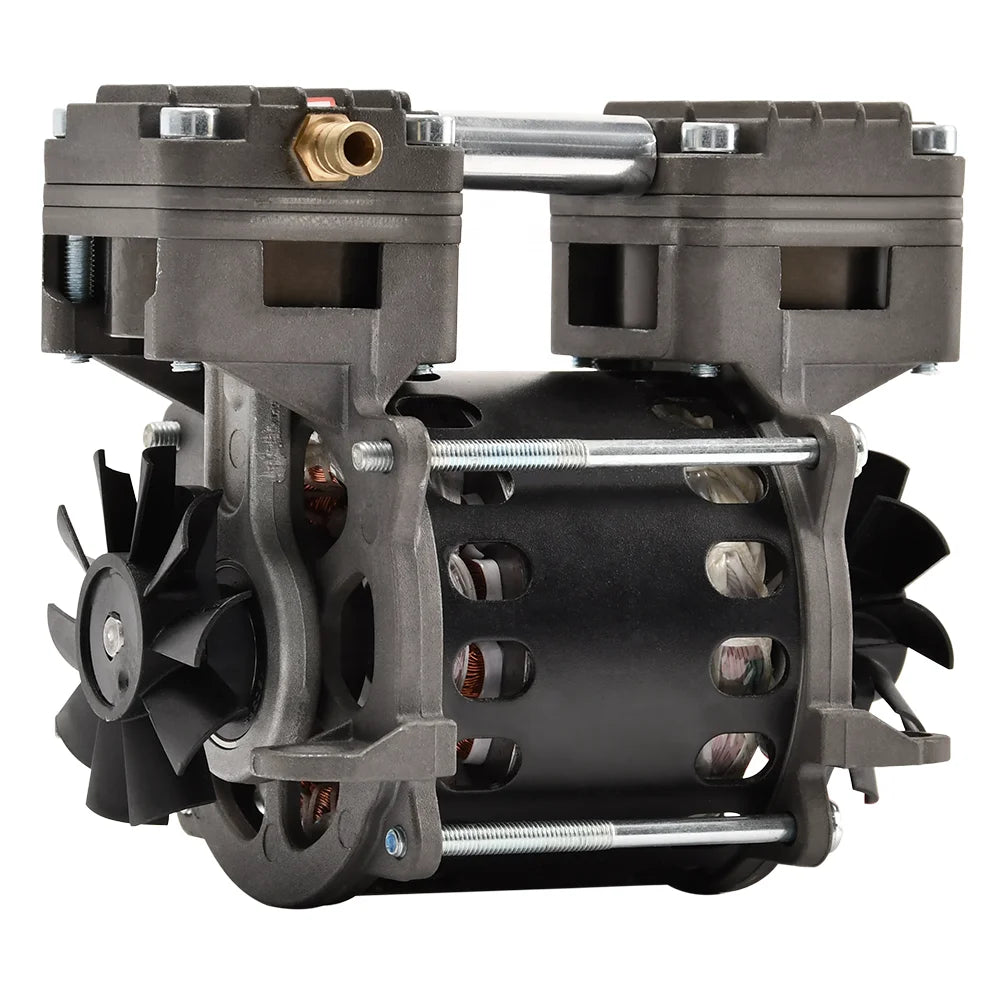

The VN-30-1 oil-free vacuum pump by Jianyue is a compact and lightweight piston pump designed for small-scale vacuum applications. Featuring dry piston technology, it ensures clean, oil-free operation while maintaining low noise and minimal maintenance requirements.
Its portable design and efficient performance make it ideal for laboratory, light industrial, and general-purpose vacuum tasks.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Oil-Free Vacuum Pump |
| Model | VN-30-1 |
| Brand | Jianyue |
| Pump Type | Dry Piston Vacuum Pump |
| Structure | Single-stage Pump |
| Pressure | -83 kPa |
| Pumping Speed | 20 L/min |
| Power Source | Electric |
| Voltage | 220V / 380V |
| Power | 85 W |
| Horsepower | 85 W |
| Connection Size | 7.5 mm |
| Material | Plastic |
| Weight | 2.3 kg |
| Dimensions | 14.3 × 12.7 × 8.8 cm |
| Operation Type | Oil-Free |
| Customization | OBM Available |
| Application Scope | Light Industrial & General Use |
| Warranty | 3 Months |
Key Features
- Compact and lightweight mini vacuum pump
- Oil-free design for clean and maintenance-free operation
- Low power consumption at 85W
- Quiet performance suitable for indoor use
- Stable vacuum up to -83 kPa
- Easy installation and portability
Typical Applications
- Laboratory and testing equipment
- Small vacuum systems
- Household and light industrial use
- Food and beverage applications
- General air extraction and vacuum tasks
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 3-month warranty
