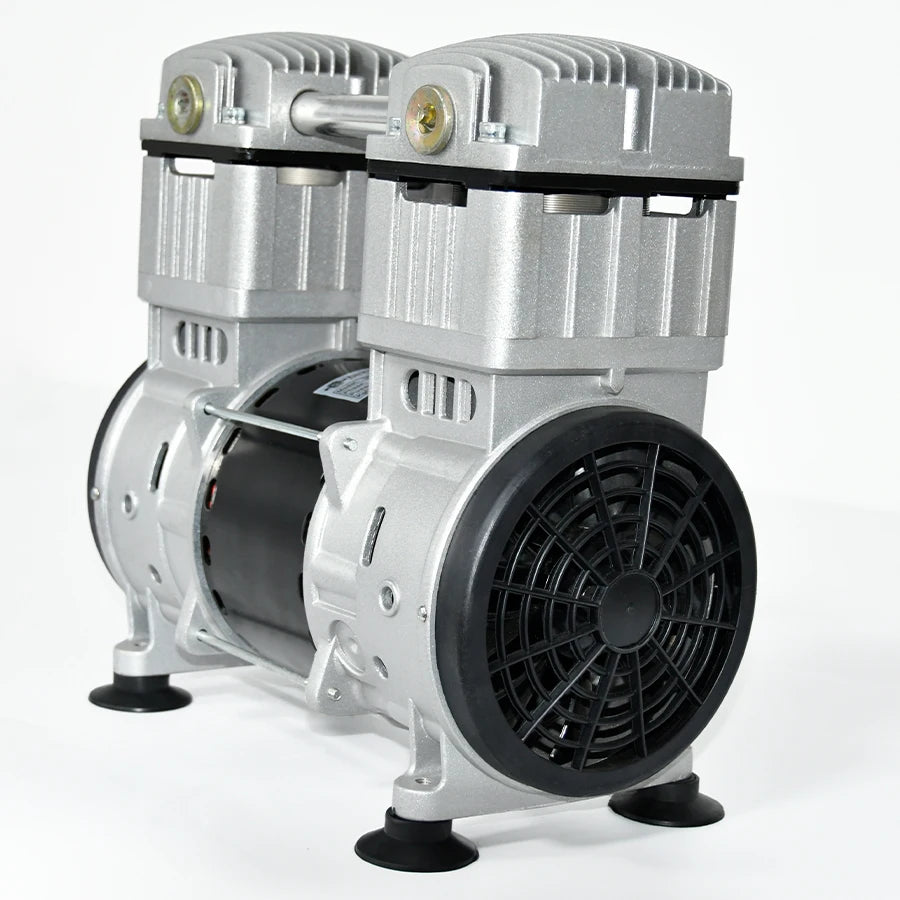

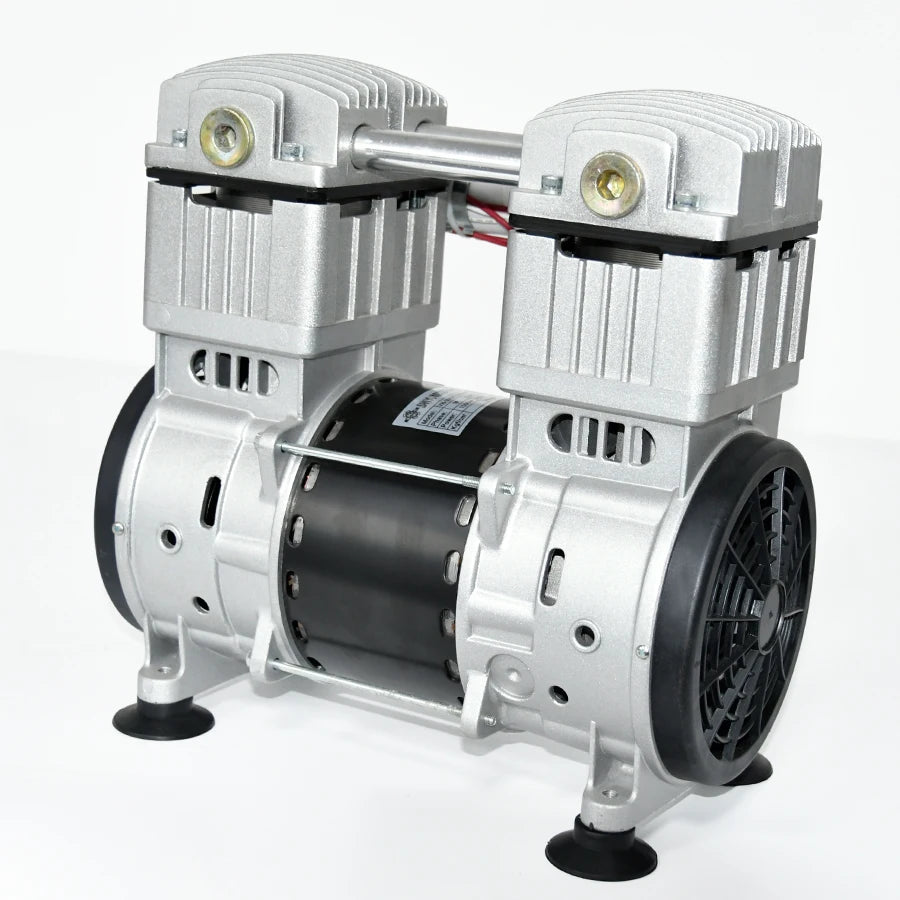

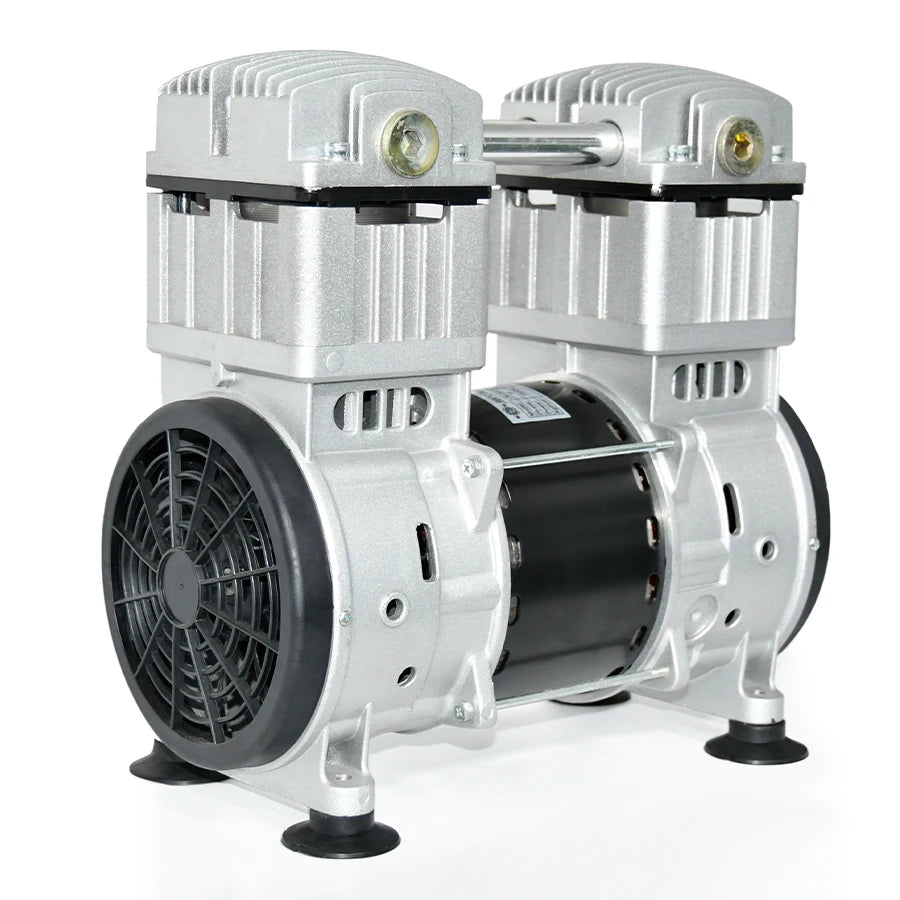

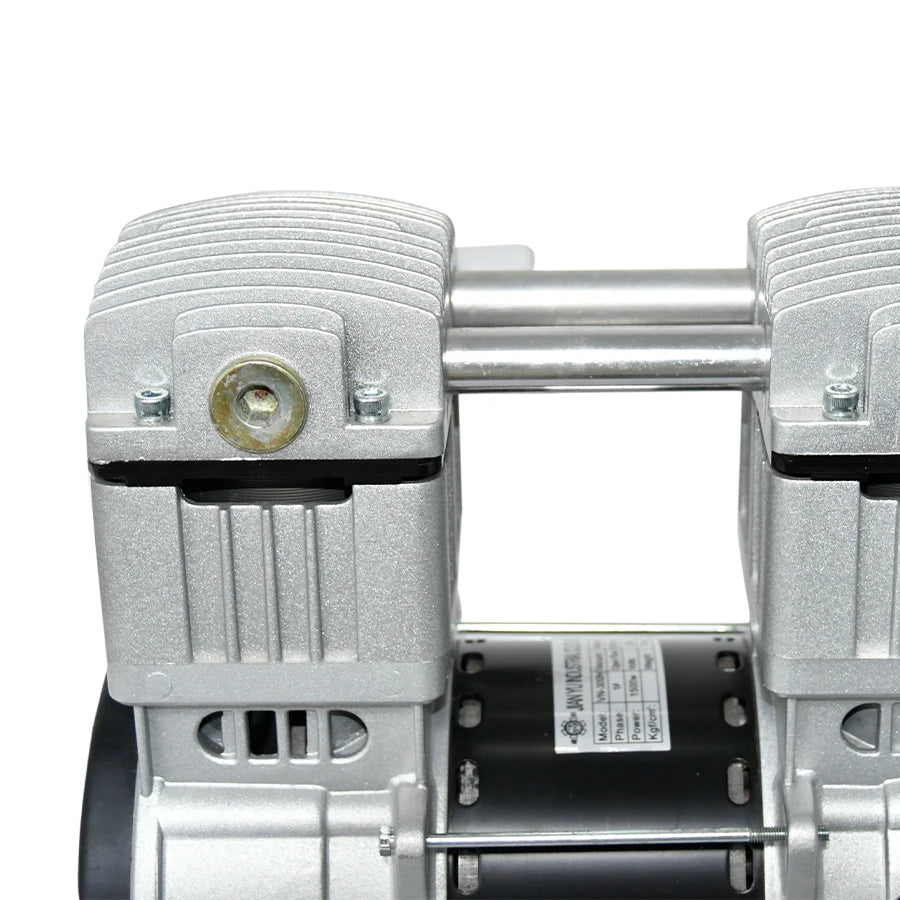

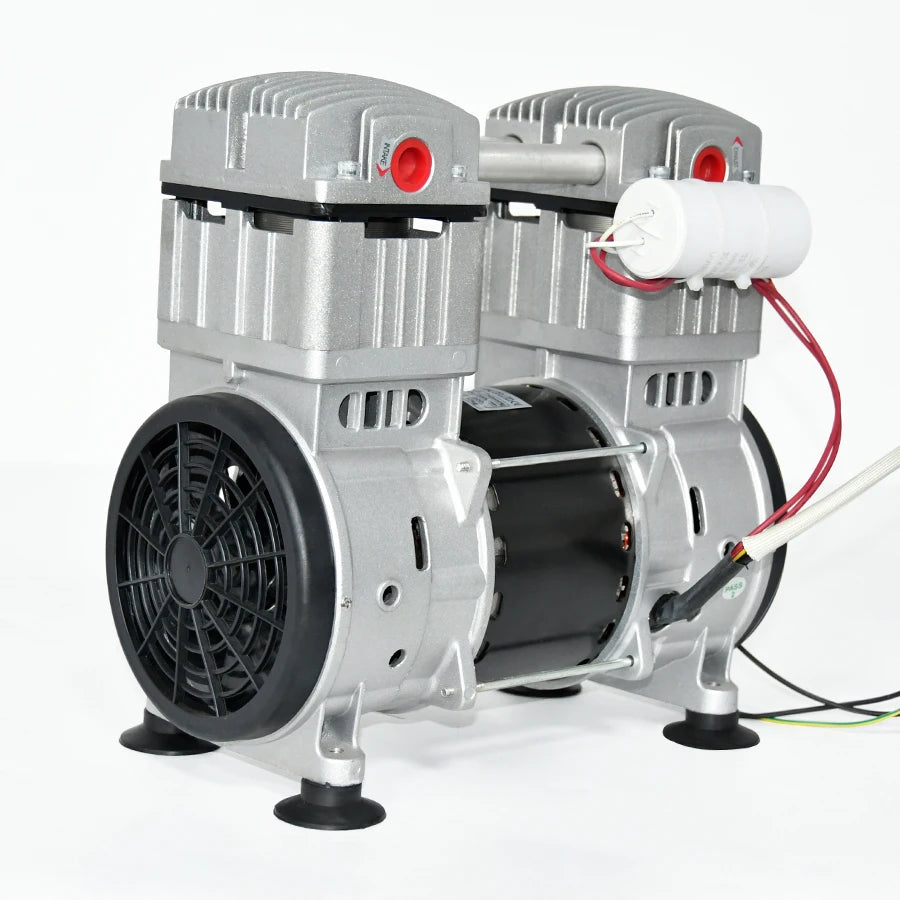

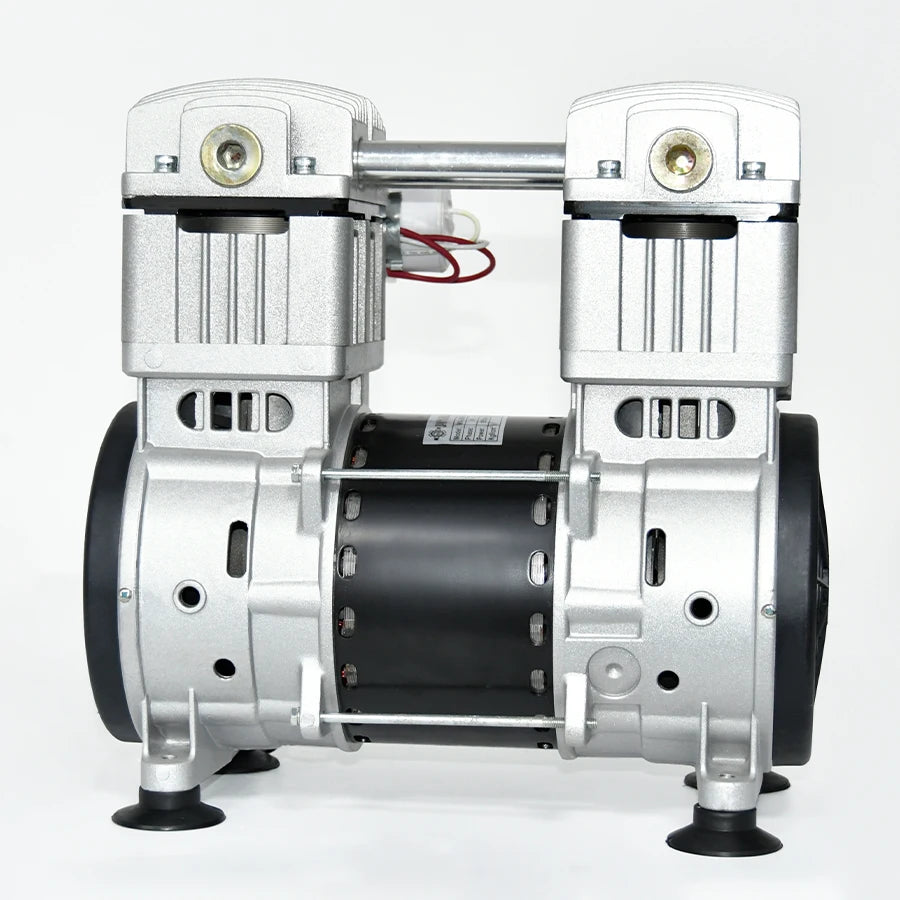

VN-300H Jianyue Oil-Free Vacuum Pump, 200 L/min High Vacuum Piston Pump -99 kPa
The VN-300H oil-free vacuum pump by Jianyue is a high-capacity piston pump engineered for demanding vacuum applications.
- 1500 W Horsepower
- 200 L/min Pumping Speed
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 3 MonthsWarranty
Product Overview
The VN-300H oil-free vacuum pump by Jianyue is a high-capacity piston pump engineered for demanding vacuum applications. With a powerful 1.5 kW motor and a vacuum level of -99 kPa, it delivers strong suction performance while maintaining low noise and oil-free operation.
Designed for reliability and efficiency, this pump is suitable for industrial environments where clean, continuous vacuum performance is required.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Oil-Free Vacuum Pump |
| Model | VN-300H |
| Brand | Jianyue |
| Pump Type | Dry Piston Vacuum Pump |
| Structure | Single-stage Pump |
| Vacuum Level | -99 kPa |
| Pumping Speed | 200 L/min |
| Power Source | Electric |
| Voltage | 220V |
| Power | 1500 W |
| Horsepower | 1500 W |
| Material | Plastic |
| Weight | 17 kg |
| Dimensions | 31.5 × 16.8 × 31.4 cm |
| Operation Type | Oil-Free, Low Noise |
| Customization | OEM, ODM, OBM Available |
| Application Scope | Industrial & Commercial |
| Warranty | 3 Months |
Key Features
- High vacuum capability up to -99 kPa
- Powerful 1.5 kW motor for demanding tasks
- Oil-free operation for clean and maintenance-free use
- Low-noise performance for improved working conditions
- High flow rate of 200 L/min
- Durable and compact industrial design
Typical Applications
- Industrial vacuum systems
- Food and beverage processing
- Pharmaceutical and laboratory use
- Mining and manufacturing operations
- HVAC and boiler systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 3-month warranty
