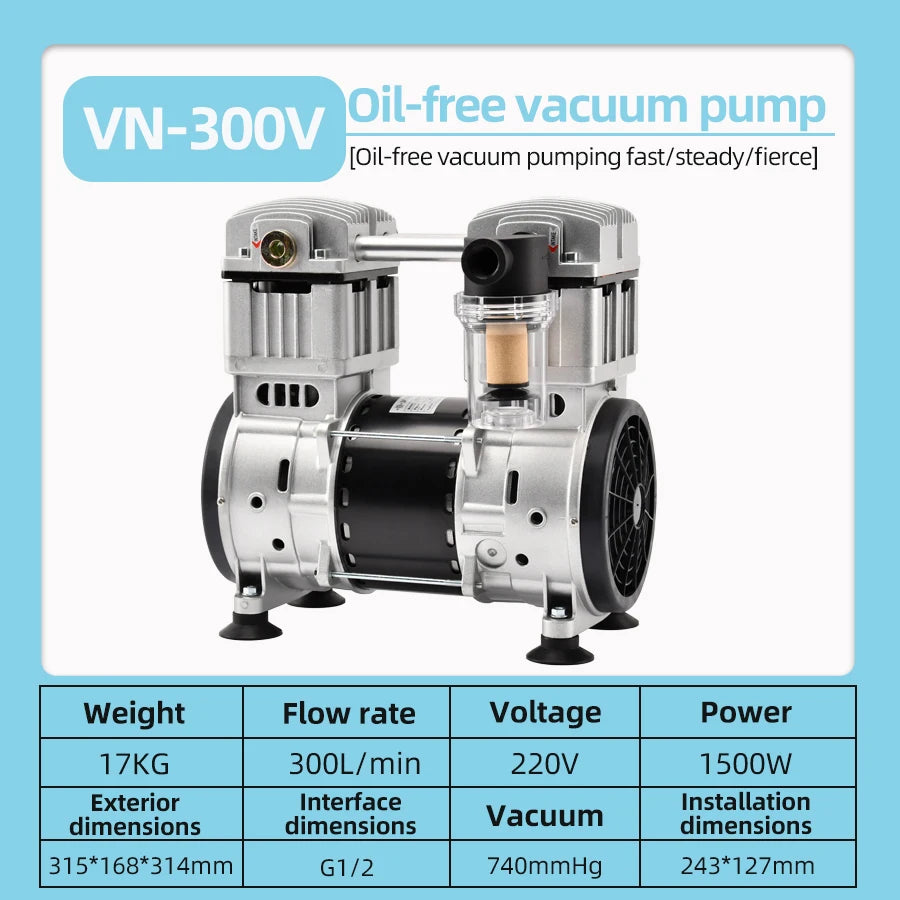

VN-300V YCZX Oil-Free Vacuum Pump, 300 L/min Piston Pump -91 kPa 1500W
The VN-300V oil-free vacuum pump by YCZX is a high-performance piston pump designed for demanding industrial and commercial applications.
- 1500 W Power
- 300 L/min Pumping Speed
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The VN-300V oil-free vacuum pump by YCZX is a high-performance piston pump designed for demanding industrial and commercial applications. With a powerful 1500W motor and high pumping capacity, it delivers efficient and stable vacuum performance without the need for oil lubrication.
Its robust construction and high flow rate make it ideal for large-scale vacuum systems requiring reliability, cleanliness, and continuous operation.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Oil-Free Vacuum Pump |
| Model | VN-300V |
| Brand | YCZX |
| Pump Type | Piston Vacuum Pump |
| Structure | Reciprocating (Piston) |
| Vacuum Level | -91 kPa |
| Pumping Speed | 300 L/min |
| Power Source | Electric |
| Voltage | 220V |
| Power | 1500 W |
| Weight | 17 kg |
| Dimensions | 315 × 168 × 314 mm |
| Operation Type | Oil-Free |
| Customization | OEM Available |
| Application Scope | Industrial & Commercial |
| Warranty | 1 Year |
Key Features
- High-performance 1500W motor for demanding applications
- Oil-free operation for clean and maintenance-free use
- High flow rate of 300 L/min
- Stable vacuum performance up to -91 kPa
- Durable and robust industrial design
- Suitable for continuous-duty operation
Typical Applications
- Industrial vacuum systems
- HVAC and temperature control
- Water treatment and distribution
- Automotive and manufacturing processes
- Marine and heavy-duty applications
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
