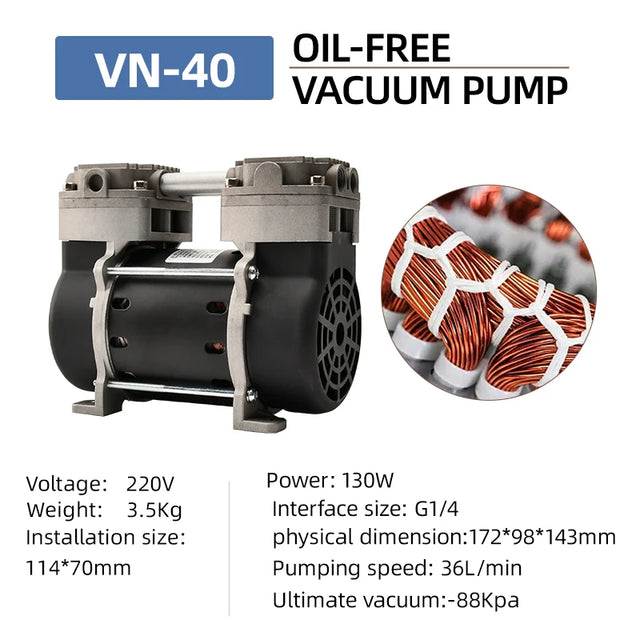

VN-40 Jianyue Oil-Free Vacuum Pump, 36 L/min Silent Piston Pump -88 kPa
The VN-40 oil-free vacuum pump by Jianyue is a compact and efficient dry piston pump designed for quiet and reliable operation.
- -88 kPa Pressure
- 130 W Horsepower
- 36 L/min Pumping Speed
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 3 MonthsWarranty
Product Overview
The VN-40 oil-free vacuum pump by Jianyue is a compact and efficient dry piston pump designed for quiet and reliable operation. Ideal for light-duty industrial and domestic applications, it delivers stable vacuum performance without the need for oil lubrication.
With its lightweight design and low power consumption, this pump is well-suited for environments requiring clean and maintenance-free vacuum solutions.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Oil-Free Vacuum Pump |
| Model | VN-40 |
| Brand | Jianyue |
| Pump Type | Dry Piston Vacuum Pump |
| Structure | Single-stage Pump |
| Pressure | -88 kPa |
| Pumping Speed | 36 L/min |
| Power Source | Electric |
| Voltage | 220V |
| Power | 130 W |
| Horsepower | 130 W |
| Material | Plastic |
| Weight | 3.5 kg |
| Dimensions | 17.2 × 14.3 × 9.8 cm |
| Operation Type | Oil-Free, Silent |
| Application Scope | Industrial & Domestic |
| Customization | OBM Available |
| Warranty | 3 Months |
Key Features
- Oil-free design for clean and maintenance-free operation
- Low-noise (silent) performance
- Compact and lightweight construction
- Energy-efficient 130W motor
- Stable vacuum performance up to -88 kPa
- Easy to install and operate
Typical Applications
- Household vacuum applications
- Food and beverage handling
- Marine and light industrial systems
- Small vacuum systems and equipment
- General-purpose air pumping
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 3-month warranty
