VN-50V Jianyue Oil-Free Vacuum Pump, 53 L/min Silent Piston Pump -88 kPa
The VN-50V oil-free vacuum pump is a compact and low-noise piston pump designed for industrial air and vacuum applications.
- 53 L/min Open Flow Rate
- -88 kPa Negative Pressure
- 230 W Power
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 3 MonthsWarranty
Product Overview

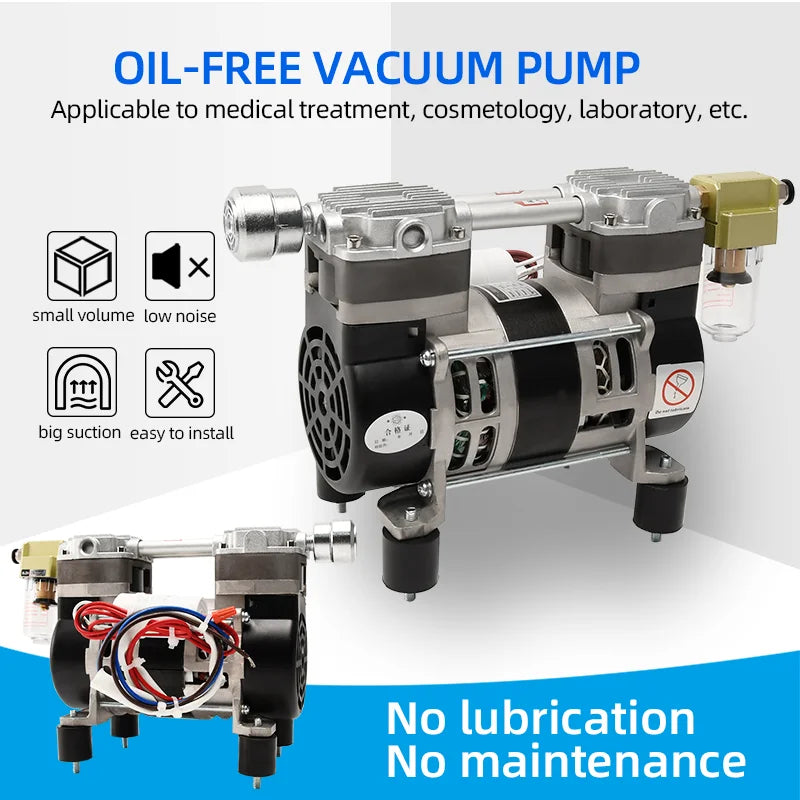

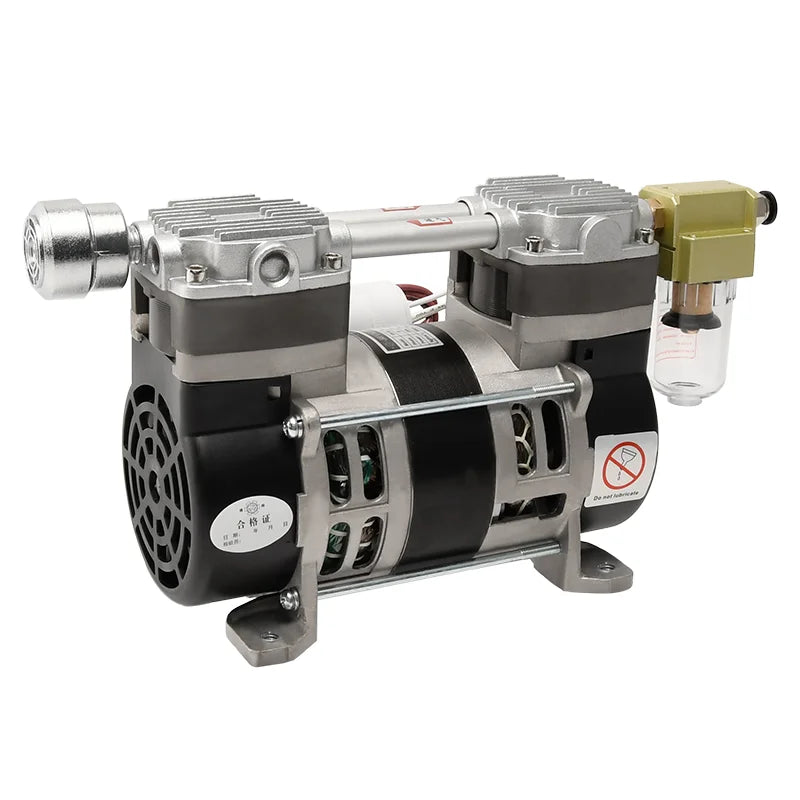

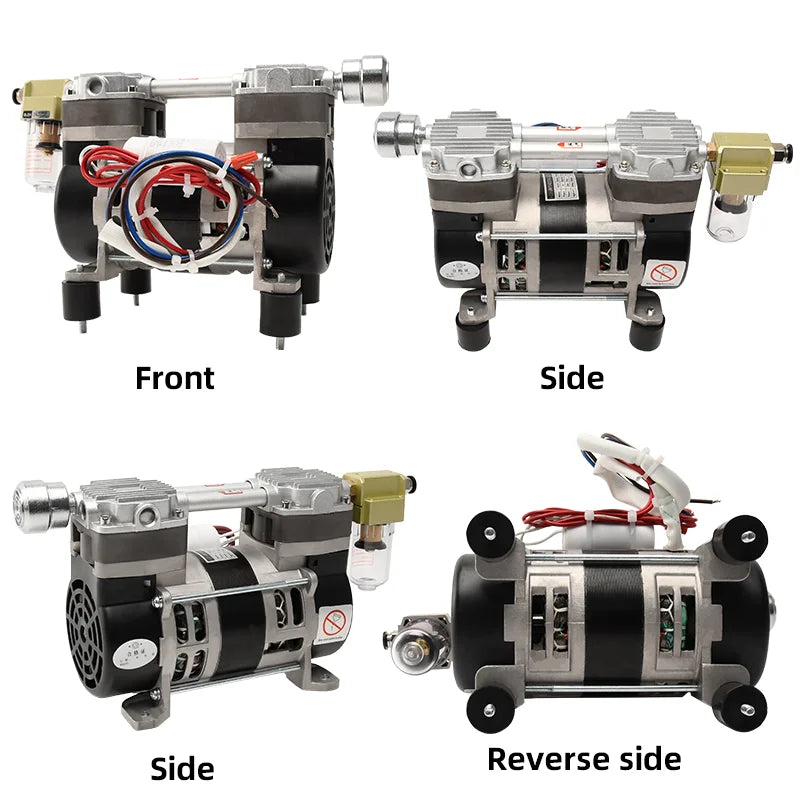

The VN-50V oil-free vacuum pump is a compact and low-noise piston pump designed for industrial air and vacuum applications. Built with a durable aluminum alloy body, it provides reliable performance while maintaining a lightweight and portable form.
With its oil-free operation and stable vacuum output, this pump is ideal for environments requiring clean air, minimal maintenance, and quiet performance.

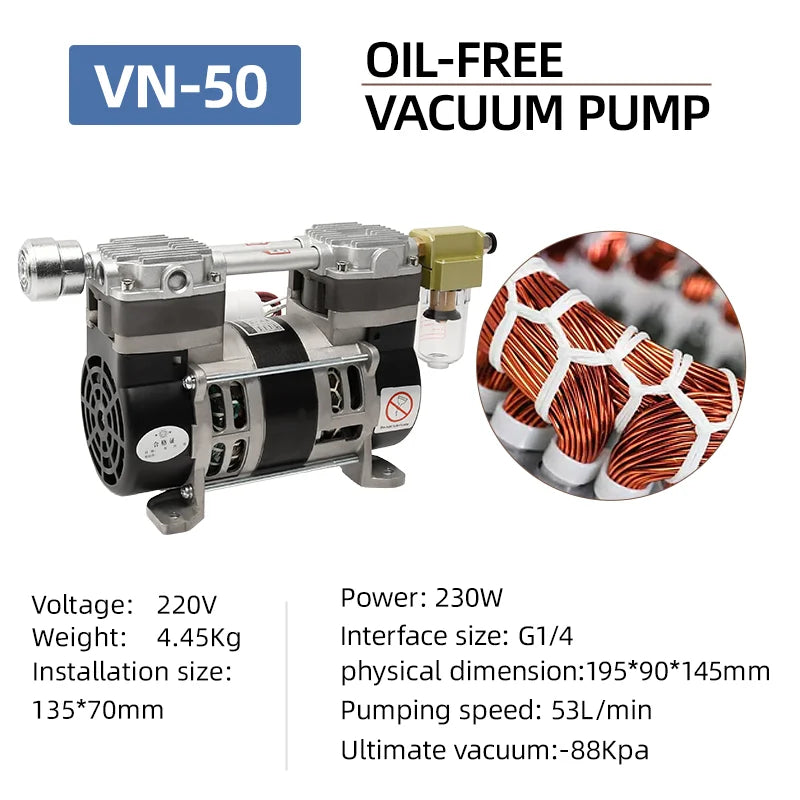

Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Oil-Free Vacuum Pump |
| Model | VN-50V |
| Brand | Jianyue / YCZX |
| Pump Type | Piston Vacuum Pump |
| Structure | Reciprocating (Piston) |
| Negative Pressure | -88 kPa |
| Open Flow Rate | 53 L/min |
| Power Source | Electric |
| Voltage | 220V |
| Power | 230 W |
| Material | Aluminum Alloy |
| Connection Size | G1/4 |
| Installation Size | 114 × 70 mm |
| Dimensions | 189 × 110 × 149 mm |
| Weight | 4 kg |
| Operation Type | Oil-Free, Low Noise |
| Customization | OEM, ODM, OBM Available |
| Application Scope | Industrial |
| Warranty | 3 Months |
Key Features
- Oil-free design for clean and maintenance-free operation
- Low-noise performance suitable for indoor use
- Compact and portable structure
- Stable vacuum performance up to -88 kPa
- Durable aluminum alloy construction
- Easy installation with standard connection size

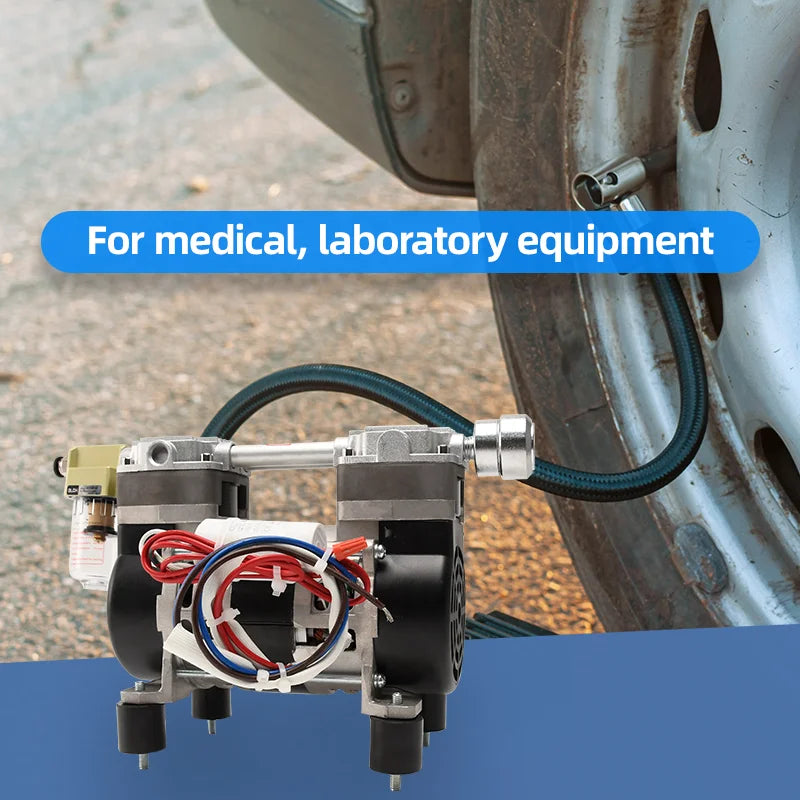

Typical Applications
- Industrial air and vacuum systems
- Automotive equipment
- Laboratory and testing equipment
- HVAC and temperature control systems
- General-purpose vacuum applications
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 3-month warranty
