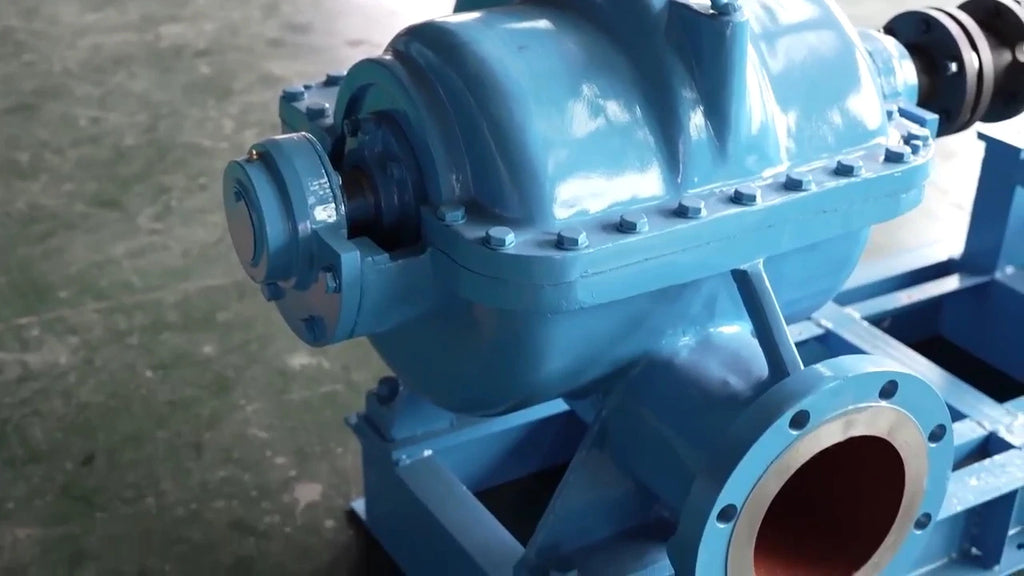

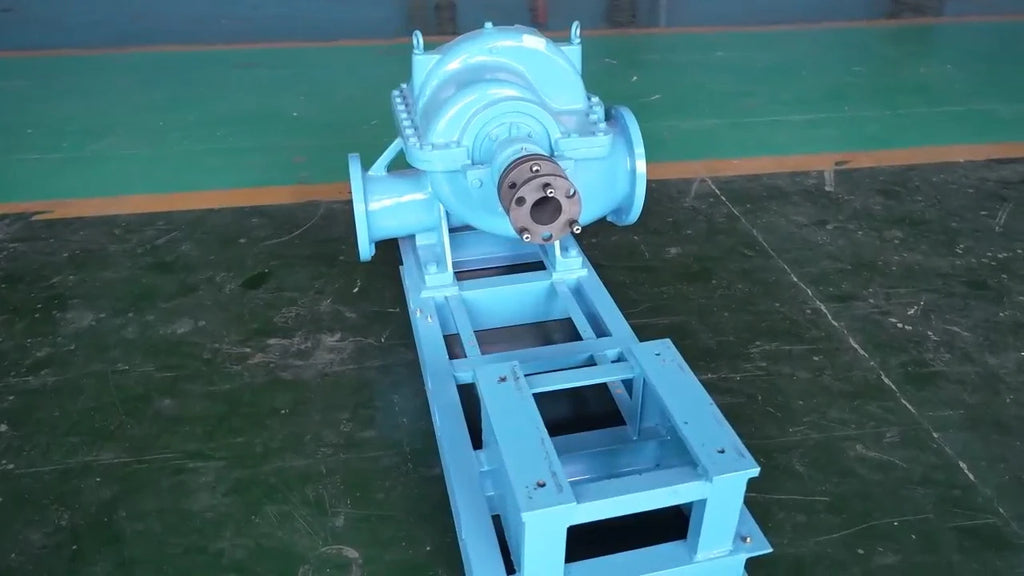

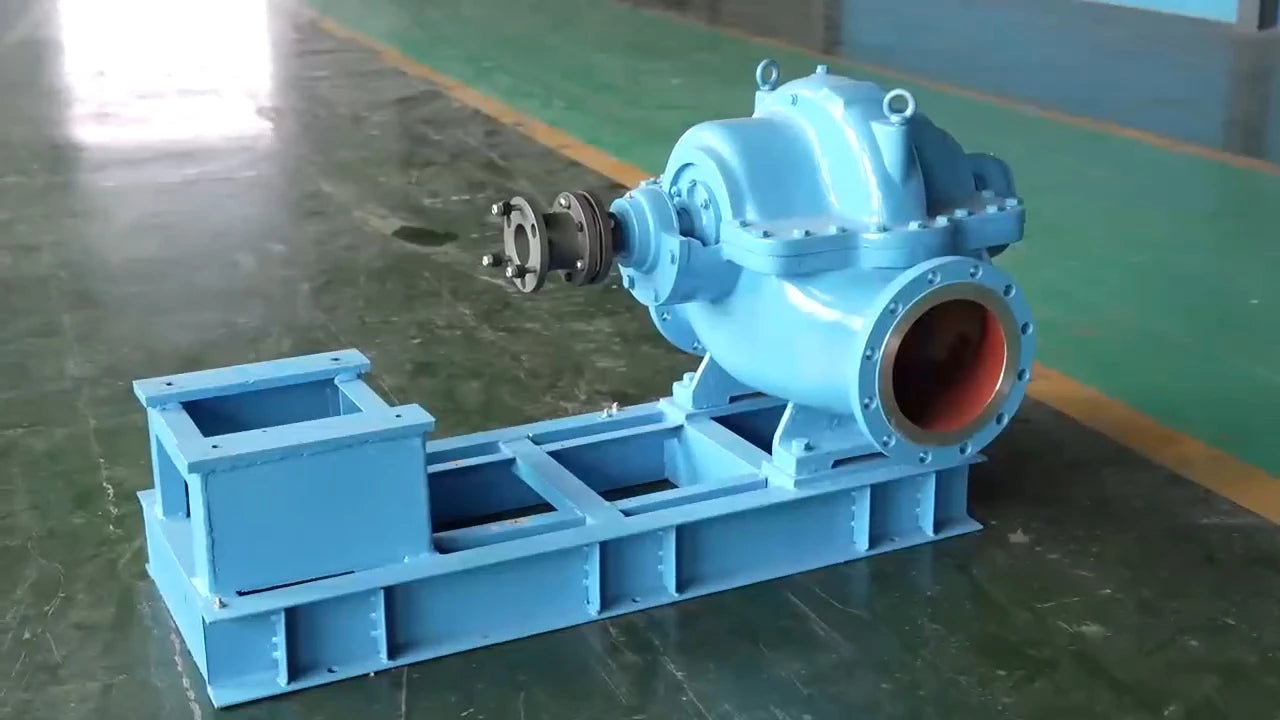

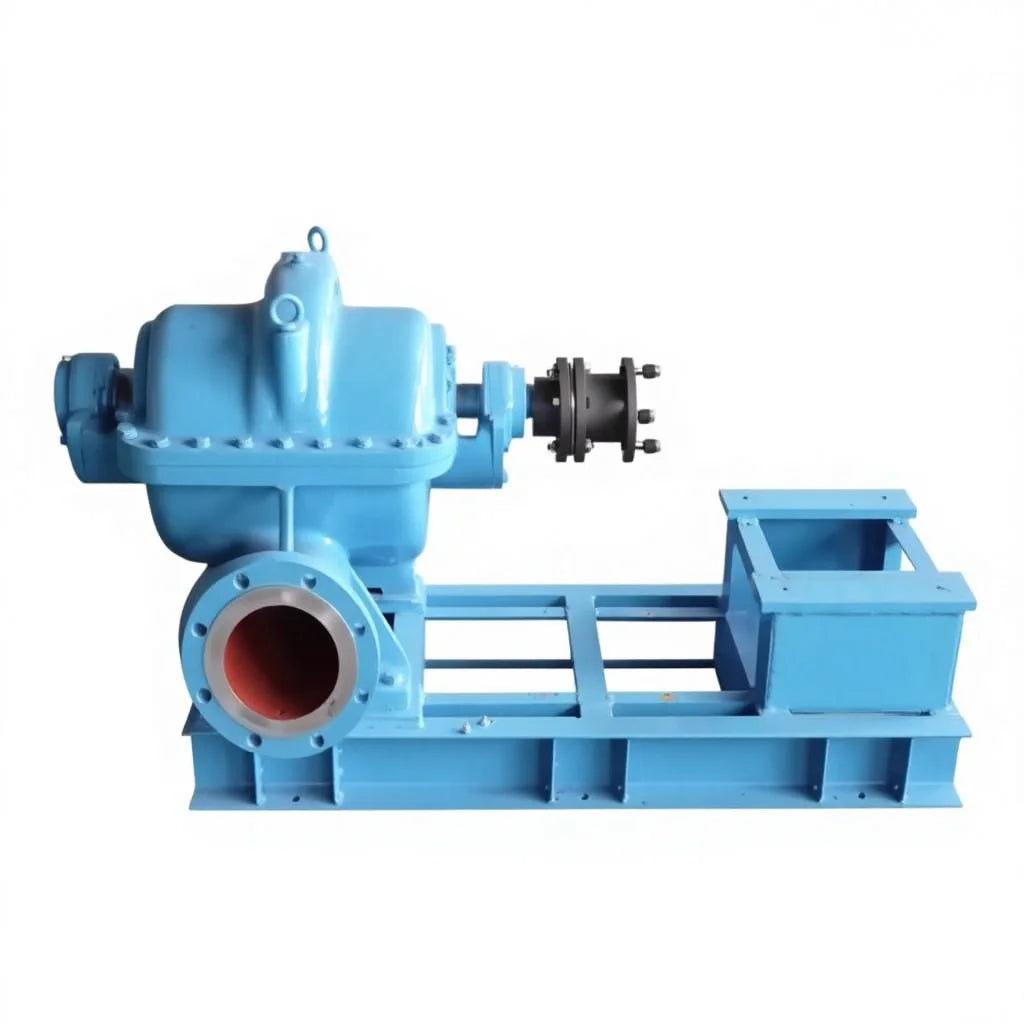

XXS Series, Single-Stage Double-Suction Split Case Centrifugal Pump, 200m Head
The XXS Series single-stage double-suction split case pump is designed for high-efficiency water transfer in large-scale industrial and municipal systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The XXS Series single-stage double-suction split case pump is designed for high-efficiency water transfer in large-scale industrial and municipal systems. With a balanced double-suction impeller and up to 200m head capability, it ensures stable operation and high flow performance in demanding environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Double-Suction Split Case Centrifugal Pump |
| Model | XXS Series |
| Pump Type | Centrifugal Pump |
| Structure | Horizontal Split Case |
| Pressure | High Pressure |
| Max Continuous Pressure | Designed for high-head systems |
| Flow Rate | High-capacity flow |
| Head | Up to 200 m |
| Speed Range | Standard operating speeds |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Voltage | 380V |
| Impeller Type | Double Suction |
| Pump Body Material | Cast Iron / Alloy Steel |
| Connector Size | Large pipe connections |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Double-suction impeller for balanced operation
- High head capability up to 200m
- Split case design for easy maintenance
- High efficiency for large-scale systems
- Reliable continuous-duty performance
- Suitable for industrial and municipal use
Typical Applications
- Waterworks systems
- Municipal water supply
- Industrial circulation
- Irrigation systems
- Power plants
- Pumping stations
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
