YCZX VN-50-1 Oil-Free Piston Vacuum Pump, 53 L/min Silent Compressor -88 kPa
The YCZX VN-50-1 is a compact oil-free piston vacuum pump designed for portable and quiet operation in laboratory, medical, and industrial environments.
- 53 L/min Open Flow Rate
- -88 kPa Negative Pressure
- 230 W Power
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 3 MonthsWarranty
Product Overview
The YCZX VN-50-1 is a compact oil-free piston vacuum pump designed for portable and quiet operation in laboratory, medical, and industrial environments. Built with an aluminum alloy body, it offers durability while maintaining a lightweight and space-efficient design.
With a stable vacuum level of -88 kPa and low-noise performance, this pump is ideal for applications requiring clean, oil-free air and consistent vacuum output.

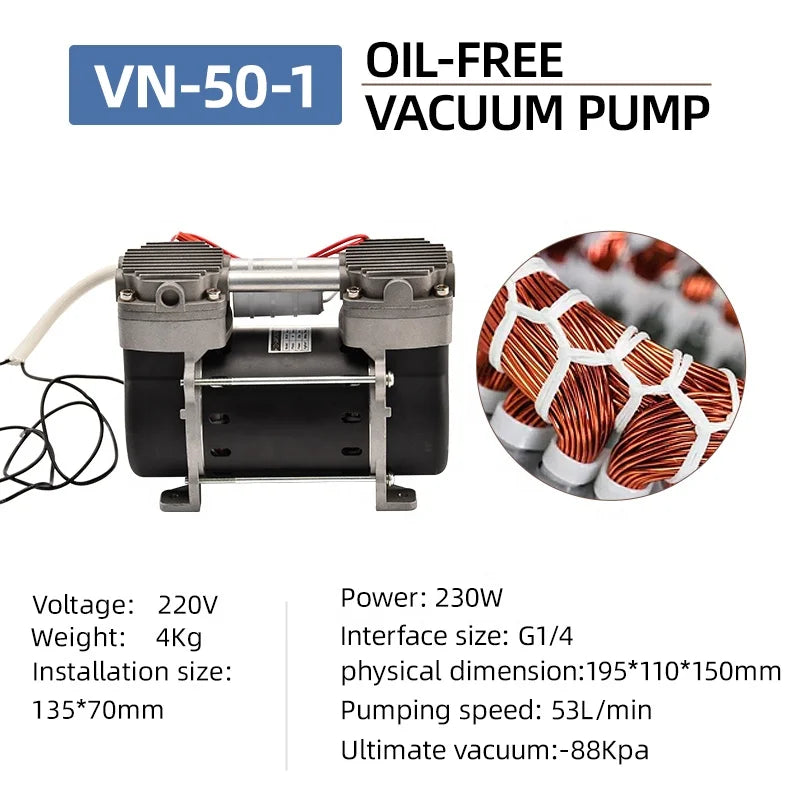

Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Oil-Free Piston Vacuum Pump |
| Model | VN-50-1 |
| Brand | YCZX |
| Pump Type | Piston Pump |
| Structure | Reciprocating (Piston) |
| Negative Pressure | -88 kPa |
| Open Flow Rate | 53 L/min |
| Power Source | Electric |
| Voltage | 220V |
| Power | 230 W |
| Material | Aluminum Alloy |
| Connection Size | G1/4 |
| Installation Size | 135 × 70 mm |
| Dimensions | 195 × 110 × 150 mm |
| Weight | 4 kg |
| Operation Type | Oil-Free, Silent |
| Customization | OEM, ODM, OBM Available |
| Warranty | 3 Months |
Key Features
- Oil-free operation for clean and contamination-free air
- Low-noise (silent) performance
- Compact and portable design
- Durable aluminum alloy construction
- Stable vacuum performance up to -88 kPa
- Easy installation with standard connection size
Typical Applications
- Medical and laboratory equipment
- Vacuum systems and instrumentation
- Industrial automation and machinery
- HVAC and temperature control systems
- Water treatment and fluid handling
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 3-month warranty
