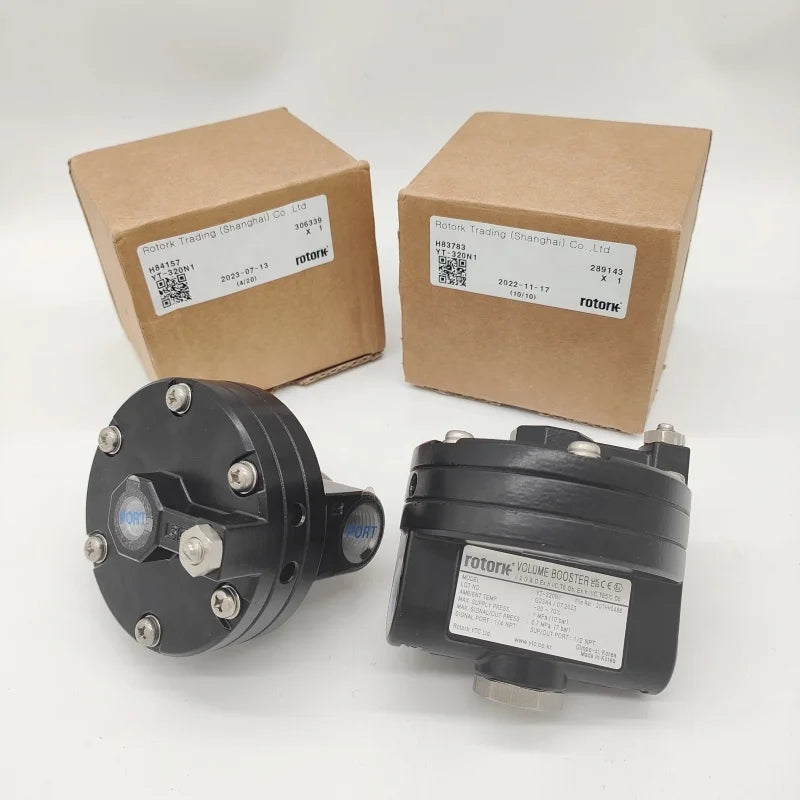

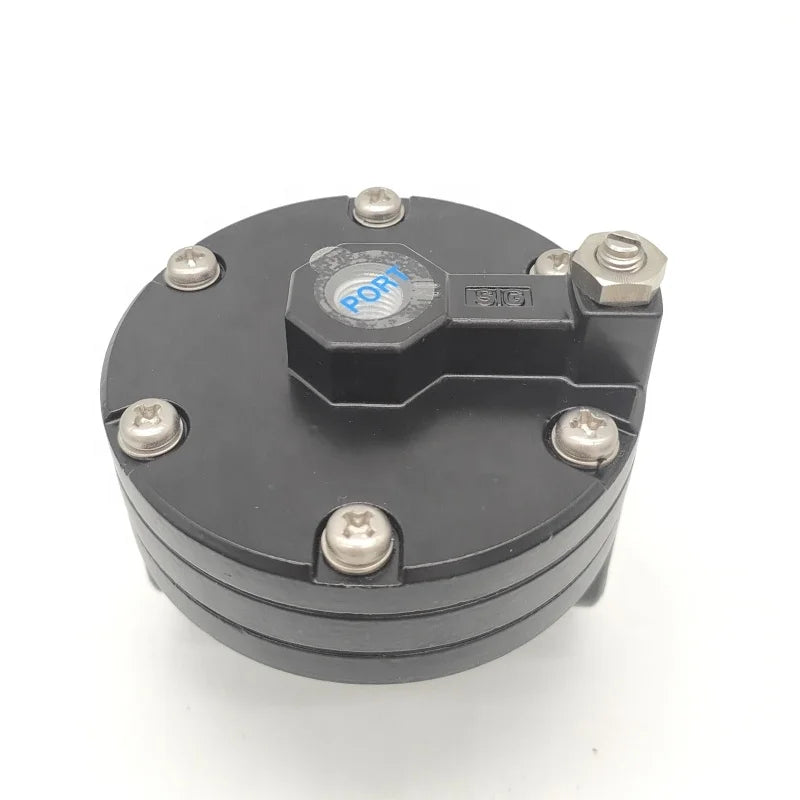

YTC Pneumatic Amplifier Stainless Steel ROTORK Amplifier YT-320N1 New Original YT320N1
The YTC ROTORK YT-320N1 Pneumatic Volume Booster Relay is designed to improve the operating speed and responsiveness of pneumatic control valve actuators in industrial process automation systems.
- 10 Bar (1 MPa / 145 psi) Maximum Supply Pressure
- Cv 2.72 Output Flow Capacity
- Pneumatic Pressure and Airflow Control Control Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview

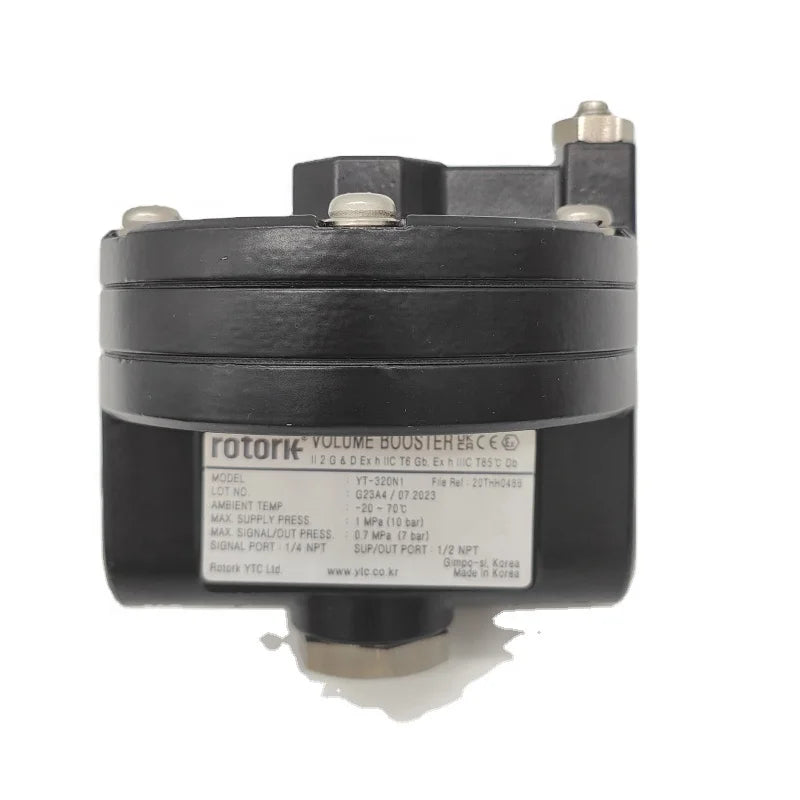

The YTC ROTORK YT-320N1 Pneumatic Volume Booster Relay is designed to improve the operating speed and responsiveness of pneumatic control valve actuators in industrial process automation systems. Manufactured by YTC, part of the ROTORK product range, this pneumatic amplifier receives an air pressure signal from a valve positioner and delivers a higher volume of compressed air to the actuator. Its 1:1 signal-to-output pressure ratio helps maintain proportional pressure control while increasing airflow capacity, reducing actuator response time and supporting accurate valve positioning in demanding industrial environments.
Part of the YTC YT-320 series, the YT-320N1 features a durable aluminium alloy housing, an internal bypass adjustment mechanism, and a pneumatic relay design that responds to changes in positioner output pressure. The booster includes a built-in 100-mesh screen for filtering particles from the air supply and provides stable operation when used with compatible valve positioners. With 1/2-inch NPT supply and output connections, a 1/4-inch NPT signal connection, and a maximum supply pressure of 10 bar, this pneumatic volume booster is suitable for industrial control valve assemblies, pneumatic actuator systems, and process automation applications requiring faster valve operation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Pneumatic Volume Booster Relay |
|
Brand |
YTC / ROTORK |
|
Model |
YT-320N1 |
|
Series |
YT-320 |
|
Product Type |
Pneumatic Volume Booster |
|
Component Type |
Pneumatic Relay Amplifier |
|
Operating Principle |
Pneumatic Signal Amplification |
|
Control Type |
Pneumatic Pressure and Airflow Control |
|
Power Source |
Compressed Instrument Air |
|
Housing Material |
Aluminium Alloy |
|
Maximum Supply Pressure |
10 Bar (1 MPa / 145 psi) |
|
Maximum Signal Pressure |
7 Bar (0.7 MPa / 102 psi) |
|
Maximum Output Pressure |
7 Bar (0.7 MPa / 102 psi) |
|
Signal-to-Output Pressure Ratio |
1:1 |
|
Supply Connection |
1/2 Inch NPT |
|
Output Connection |
1/2 Inch NPT |
|
Signal Connection |
1/4 Inch NPT |
|
Output Flow Capacity |
Cv 2.72 |
|
Exhaust Flow Capacity |
Cv 2.08 |
|
Linearity |
±1% Full Scale |
|
Operating Temperature |
-20°C to +70°C |
|
Internal Filter |
100-Mesh Screen |
|
Bypass Function |
Adjustable Internal Bypass |
|
Approximate Weight |
0.77 kg |
|
Working Medium |
Clean, Dry Compressed Air |
|
Installation Type |
Pneumatic Actuator and Positioner Assembly |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
High-flow pneumatic volume booster for improving industrial control valve actuator response.
-
Maintains a 1:1 signal-to-output pressure ratio for proportional pneumatic pressure control.
-
Maximum supply pressure of 10 bar for compatible industrial pneumatic systems.
-
Maximum signal and output pressure of 7 bar for controlled actuator operation.
-
Durable aluminium alloy housing suitable for demanding industrial environments.
-
Adjustable internal bypass mechanism for improving valve positioning stability.
-
Responds to small changes in input pressure for accurate pneumatic output control.
-
High output flow capacity to reduce valve actuator opening and closing times.
-
Built-in 100-mesh screen for reducing particle contamination in the compressed air supply.
-
Standard 1/2-inch NPT supply and output connections for installation in compatible pneumatic systems.
-
1/4-inch NPT signal connection for integration with suitable electropneumatic valve positioners.
-
Compact construction for installation in industrial valve assemblies.
-
Suitable for pneumatic control systems requiring improved airflow capacity and faster actuator movement.
-
Mechanical pneumatic operation without requiring a separate electrical power supply.
Typical Applications
-
Industrial pneumatic control valve systems
-
Pneumatic actuator response improvement
-
Valve positioner pneumatic output amplification
-
Oil and gas processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Ball and butterfly valve actuator assemblies
-
Industrial flow and pressure regulation systems
-
Pneumatic valve automation equipment
-
Process instrumentation and control systems
