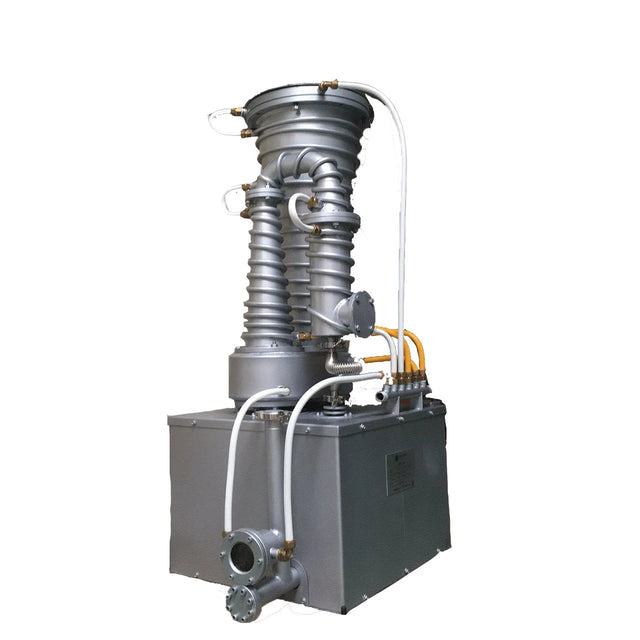

Z-400 Super Q Roots Vacuum Pump, 15kW 7×10⁻²Pa DN400 Booster Pump
The Z-400 Super Q roots vacuum pump is a high-performance booster pump designed for industrial vacuum systems requiring enhanced pumping speed and deep vacuum levels.
- 7 × 10⁻² Pa Ultimate Pressure
- 14 – 20 kW (Typical 15 kW) Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Z-400 Super Q roots vacuum pump is a high-performance booster pump designed for industrial vacuum systems requiring enhanced pumping speed and deep vacuum levels. Engineered for integration with forepump systems, it delivers efficient gas transfer and stable vacuum performance.
With an ultimate pressure of 7×10⁻² Pa and robust construction, the Z-400 is ideal for vacuum coating, machining, and heavy industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Roots Vacuum Booster Pump |
| Model | Z-400 |
| Brand | Super Q |
| Pump Type | Vacuum Pump |
| Structure | Booster (Roots Type) |
| Pressure | Low Pressure (Vacuum) |
| Ultimate Pressure | 7 × 10⁻² Pa |
| Fore Pump Pressure | 133 – 267 Pa |
| Flow Rate | High capacity (booster type) |
| Speed Range | Standard motor speed |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 14 – 20 kW (Typical 15 kW) |
| Voltage | 380V |
| Pump Body Material | Industrial Alloy |
| Sealing Type | Dry Operation |
| Outlet Size | DN100 / DN400 |
| Connection Type | Flange |
| Cable Length | Customizable |
| Suitable Media | Air / Gas |
| Application Scope | Industrial vacuum systems |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Roots booster design for enhanced vacuum performance
- Ultimate vacuum down to 7 × 10⁻² Pa
- High efficiency when paired with forepump systems
- Large flange connections (DN100 / DN400)
- Suitable for continuous industrial operation
- Durable and robust construction
Typical Applications
- Vacuum coating systems
- Machining processes
- Mining industry
- Pharmaceutical production
- Industrial utilities
- Metal processing systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
