Z Series KingGo Sanitary Rotary Lobe Pump, SS Food Grade 2.2kW High Viscosity
The Z Series KingGo sanitary rotary lobe pump is designed for hygienic transfer of high-viscosity fluids in food and beverage processing.
- 300 – 43,000 L/h Flow Rate
- 0.55 – 22 kW Motor Power
- Up to 1450 r/min Speed Range
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview

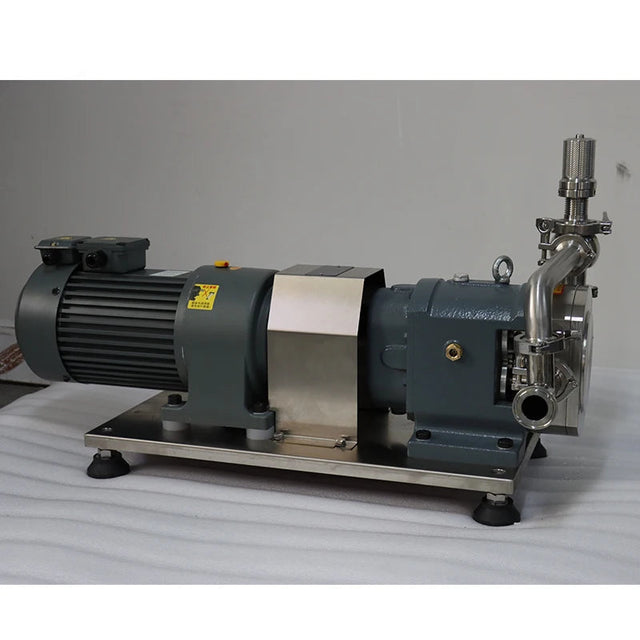

The Z Series KingGo sanitary rotary lobe pump is designed for hygienic transfer of high-viscosity fluids in food and beverage processing. Built with stainless steel construction and equipped with an ABB motor, it ensures reliable, low-shear performance while maintaining product integrity.
With flow rates up to 43,000 L/h and operating temperatures up to 150°C, this pump is ideal for demanding sanitary applications requiring precision, durability, and safety.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Sanitary Rotary Lobe Pump |
| Model | Z Series |
| Brand | KingGo |
| Pump Type | Positive Displacement Pump |
| Structure | Rotary Lobe |
| Pressure | Low Pressure |
| Max Continuous Pressure | Designed for sanitary systems |
| Flow Rate | 300 – 43,000 L/h |
| Speed Range | Up to 1450 r/min |
| Motor Type | ABB Electric Motor |
| Power Source | Electric |
| Power Rating | 0.55 – 30 kW |
| Motor Power | 0.55 – 22 kW |
| Voltage | 220 – 480V |
| Pump Body Material | Stainless Steel |
| Sealing Material | SIC/SIC/EPDM / TC/TC/EPDM |
| Outlet Size | 1" – 4" |
| Max Temperature | 150°C |
| Connector Type | Sanitary fittings |
| MOQ | 1 Set |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Stainless steel food-grade construction
- Suitable for high-viscosity fluids
- Flow capacity up to 43,000 L/h
- ABB motor for reliable performance
- Low-shear and gentle product handling
- High temperature resistance up to 150°C
Typical Applications
- Food and beverage processing
- Dairy production
- Sauce and syrup transfer
- Cosmetic manufacturing
- Pharmaceutical processing
- Viscous fluid handling
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
