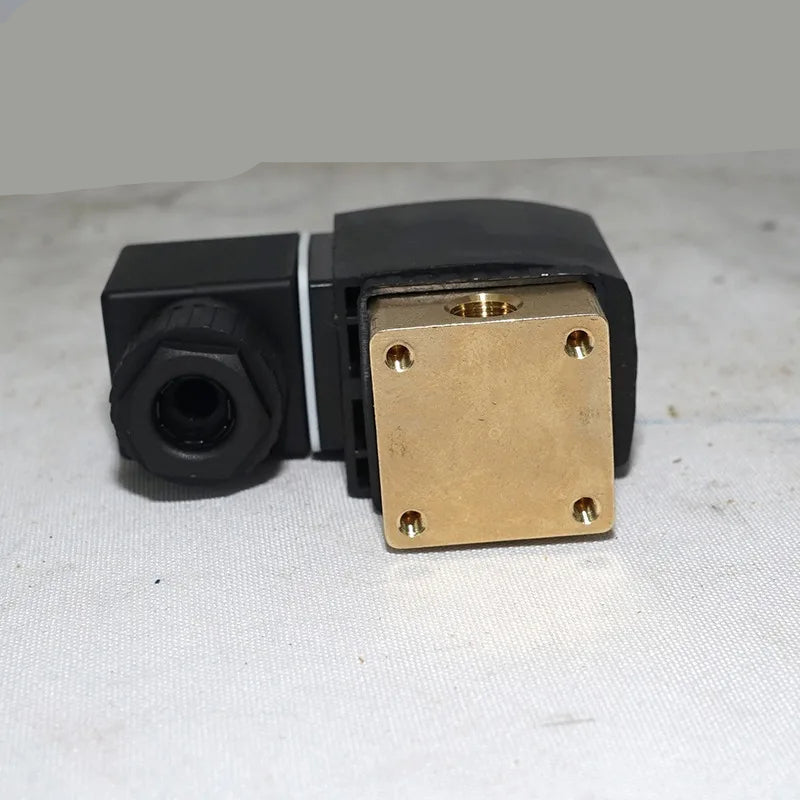

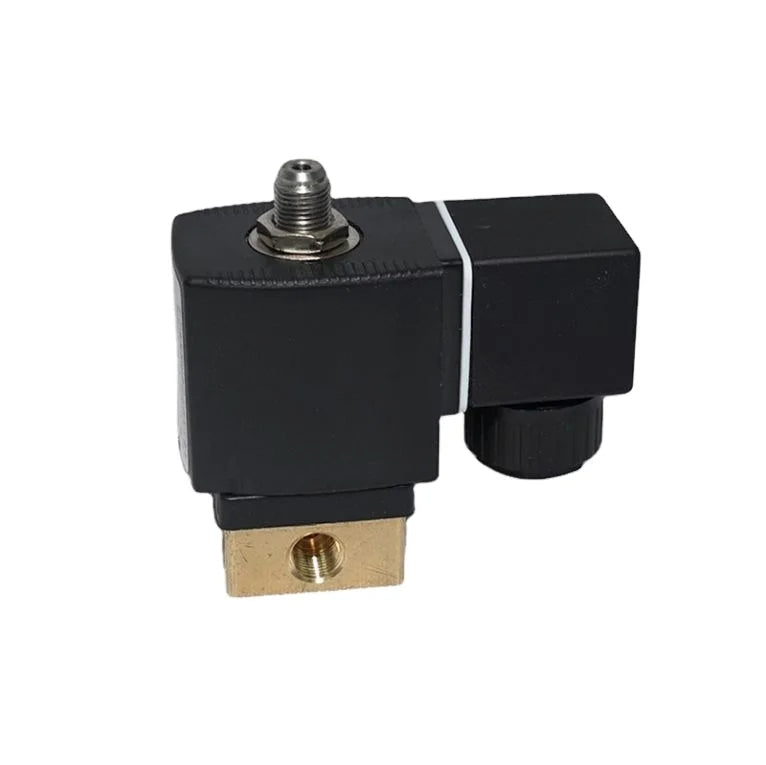

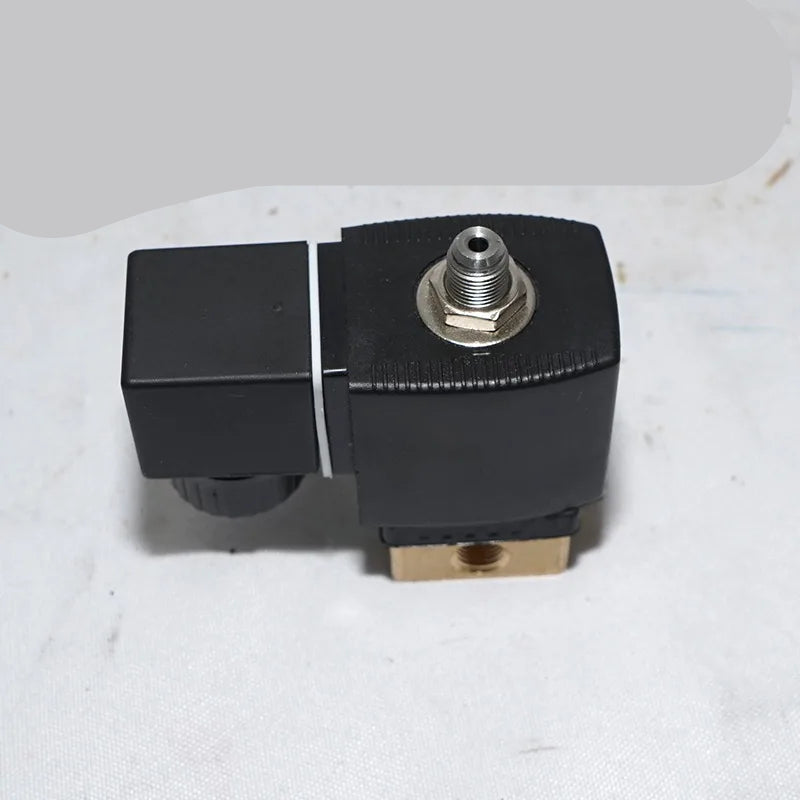

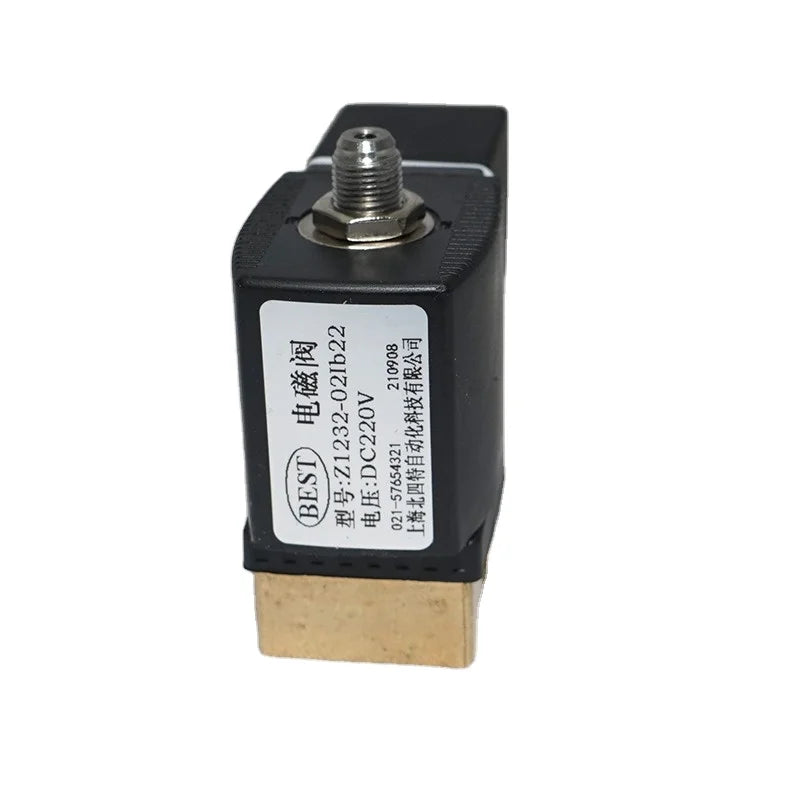

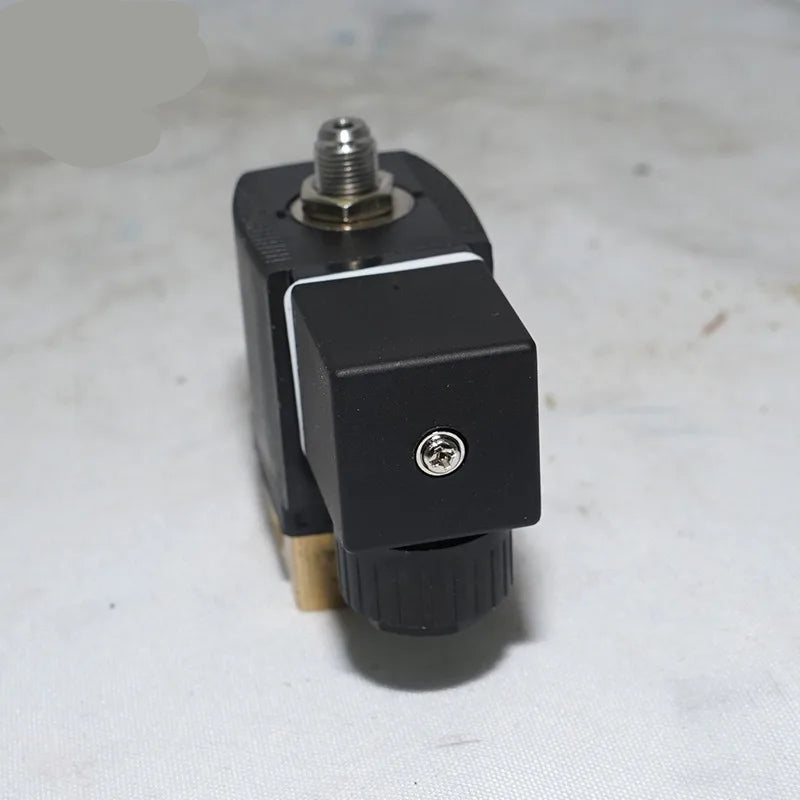

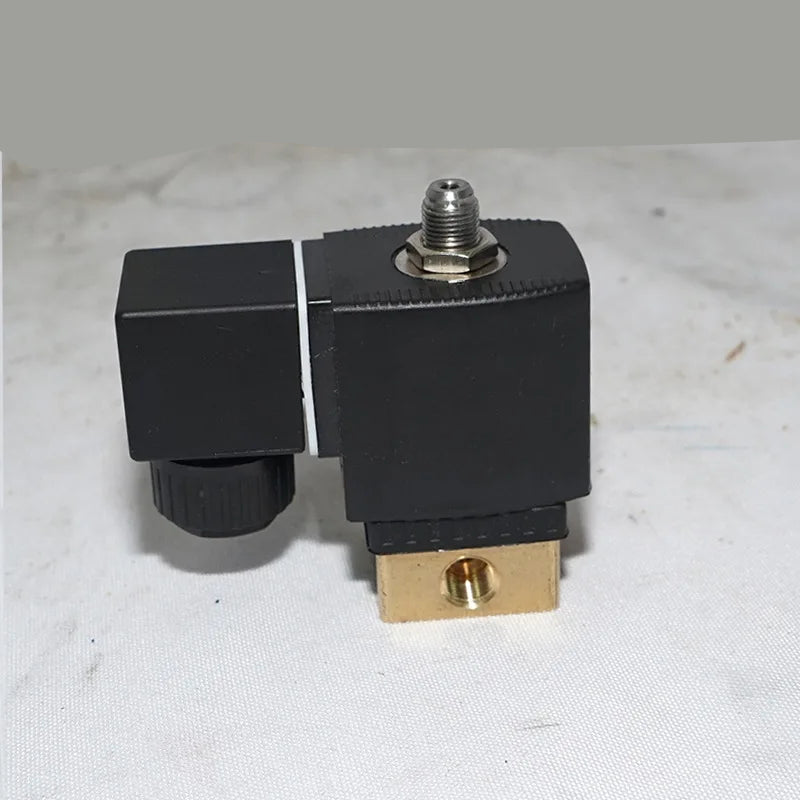

Z1232 Brass Solenoid Valve, 3 Way, Mini Thread Valve, 16 Bar
The Z1232 brass solenoid valve is a compact three-way electric valve designed for reliable control of water and hydraulic fluids in industrial and automation systems.
- Solenoid Valve Valve Type
- 16 Bar Maximum Pressure
- 12V / 24V DC, 110V / 220V AC Voltage Options
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Z1232 brass solenoid valve is a compact three-way electric valve designed for reliable control of water and hydraulic fluids in industrial and automation systems. Its miniature design with threaded connections allows easy installation in tight spaces while maintaining stable fluid switching performance.
Constructed from durable brass with corrosion-resistant components, the Z1232 valve supports multiple voltage options including 12V, 24V DC and 110V / 220V AC, making it suitable for a wide range of control systems. With a maximum pressure rating of 16 bar, the valve delivers dependable operation in fluid transfer and automation environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Mini Brass Solenoid Valve |
| Model | Z1232 |
| Valve Type | Solenoid Valve |
| Configuration | 3 Way |
| Body Material | Brass |
| Connection Type | Thread |
| Port Size | DN01 / DN03 |
| Maximum Pressure | 16 Bar |
| Voltage Options | 12V / 24V DC, 110V / 220V AC |
| Working Medium | Water / Hydraulic Fluids |
| Application Type | Fluid Control |
| Condition | New |
| Warranty | 1 Year |
Key Features
• Compact mini solenoid valve design
• Three-way configuration for flexible fluid routing
• Durable brass body construction
• Compatible with AC and DC voltage options
• Stable switching performance under pressure
• Suitable for industrial automation systems
Typical Applications
• Hydraulic control systems
• Industrial automation equipment
• Water control systems
• Small fluid transfer systems
• Pneumatic and hydraulic circuits
Shipping & Support
• Fast dispatch – Australia & world-wide shipping
• Technical assistance available
• 1-year manufacturer warranty
