ZHRR Series AOGU Roots Blower, 220–380V 98–196kPa Three-Lobe High Pressure
The ZHRR Series AOGU roots blower is a high-pressure, three-lobe industrial air blower designed for continuous-duty applications requiring stable airflow and elevated pressure performance.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview

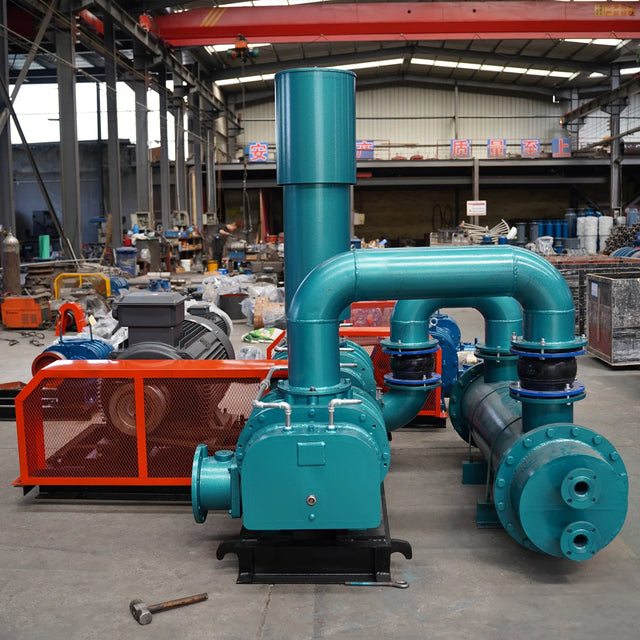

The ZHRR Series AOGU roots blower is a high-pressure, three-lobe industrial air blower designed for continuous-duty applications requiring stable airflow and elevated pressure performance. Built with cast iron construction and powered by an induction motor, it ensures durability and long service life.
With pressure capability up to 196 kPa and flexible speed operation, this blower is ideal for demanding industrial systems including wastewater treatment, pneumatic conveying, and air supply networks.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Roots Blower |
| Model | ZHRR Series |
| Brand | AOGU |
| Pump Type | Roots Blower |
| Structure | Three-Lobe Positive Displacement |
| Pressure | High Pressure |
| Max Continuous Pressure | 98 – 196 kPa |
| Flow Rate | Model dependent |
| Speed | 730 – 3000 RPM (Typical 850 RPM) |
| Motor Type | Induction Motor |
| Power Source | Electric |
| Voltage | 220V / 380V |
| Current Type | AC |
| Pump Body Material | Cast Iron |
| Impeller Material | Cast Iron |
| Noise Level | 70 – 85 dB |
| Weight | 310 – 13,400 kg |
| Cable Length | 7 ft (2.13 m) |
| Certification | CE / ISO9001 |
| Color | Customizable |
| MOQ | 1 Set |
| Application Scope | Industrial air systems |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Three-lobe roots blower design
- High pressure up to 196 kPa
- Wide speed range for flexible operation
- Durable cast iron construction
- Certified CE and ISO9001 quality
- Suitable for continuous industrial use
Typical Applications
- Wastewater treatment
- Pneumatic conveying systems
- Industrial air supply
- Environmental engineering
- Manufacturing processes
- Chemical processing
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
