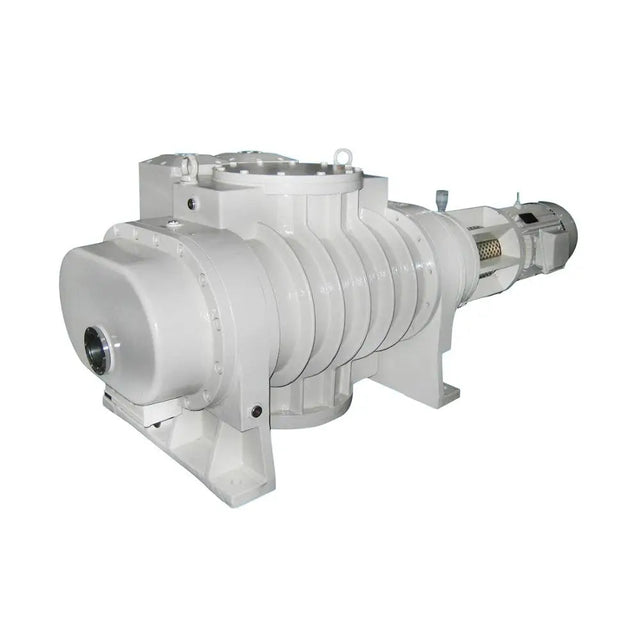

ZJP-1200 Super Q Roots Vacuum Pump, 1200L/s 11kW 0.05Pa High Vacuum
The ZJP-1200 Super Q roots vacuum pump is a high-performance vacuum solution designed for industrial and HVAC applications requiring deep vacuum and high pumping speed.
- 1200 L/s Flow Rate
- 0.05 Pa Ultimate Pressure
- 11 kW (14.75 HP) Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The ZJP-1200 Super Q roots vacuum pump is a high-performance vacuum solution designed for industrial and HVAC applications requiring deep vacuum and high pumping speed. Built with advanced roots technology, it delivers stable and efficient vacuum performance for demanding environments.
With a pumping capacity of 1200 L/s and ultimate pressure down to 0.05 Pa, this pump is ideal for high-vacuum systems such as metal processing, equipment manufacturing, and industrial utilities.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Roots Vacuum Pump |
| Model | ZJP-1200 |
| Brand | Super Q |
| Pump Type | Vacuum Pump |
| Structure | Roots (Mechanical Booster) |
| Pressure | High Vacuum |
| Ultimate Pressure | 0.05 Pa |
| Flow Rate | 1200 L/s |
| Speed | 3000 RPM |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Power Rating | 11 kW (14.75 HP) |
| Voltage | 380V |
| Cooling Method | Water Cooling |
| Pump Body Material | Industrial Alloy |
| Outlet Size | 200 / 250 mm |
| Cable Length | 3 m |
| Certification | CE |
| Suitable Media | Air / Gas |
| Application Scope | Industrial / HVAC |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- High vacuum capability down to 0.05 Pa
- Large pumping speed of 1200 L/s
- High-speed operation at 3000 RPM
- Water-cooled system for thermal stability
- Robust industrial construction
- Suitable for continuous operation
Typical Applications
- HVAC systems
- Industrial utilities
- Metal processing
- Equipment manufacturing
- Vacuum systems
- High-vacuum processing
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
