Hydraulic Piston Pumps: Axial and Radial Designs

Why Engineers Choose Piston Pumps

A piston pump seals each chamber with a close-fitting piston, not a gear tooth or a vane tip. Less oil slips past, so more of your motor power turns into useful flow. That is why piston pumps lead on efficiency, often reaching 90% or more overall.

The other big win is control. Most piston pumps can change their displacement while running. They make full flow when the machine moves, then drop to almost nothing when it holds pressure. You save power, and your oil runs cooler.

The trade-off is cost and care. Piston pumps cost more than gear or vane pumps and need clean, well-filtered oil to reach their full life.

Axial or Radial? The Two Main Families

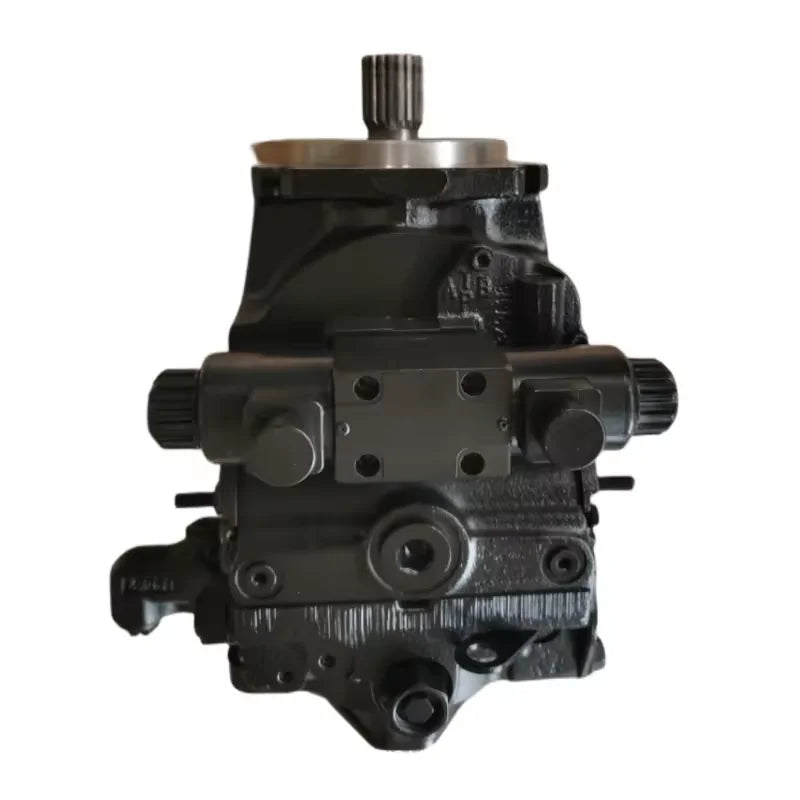

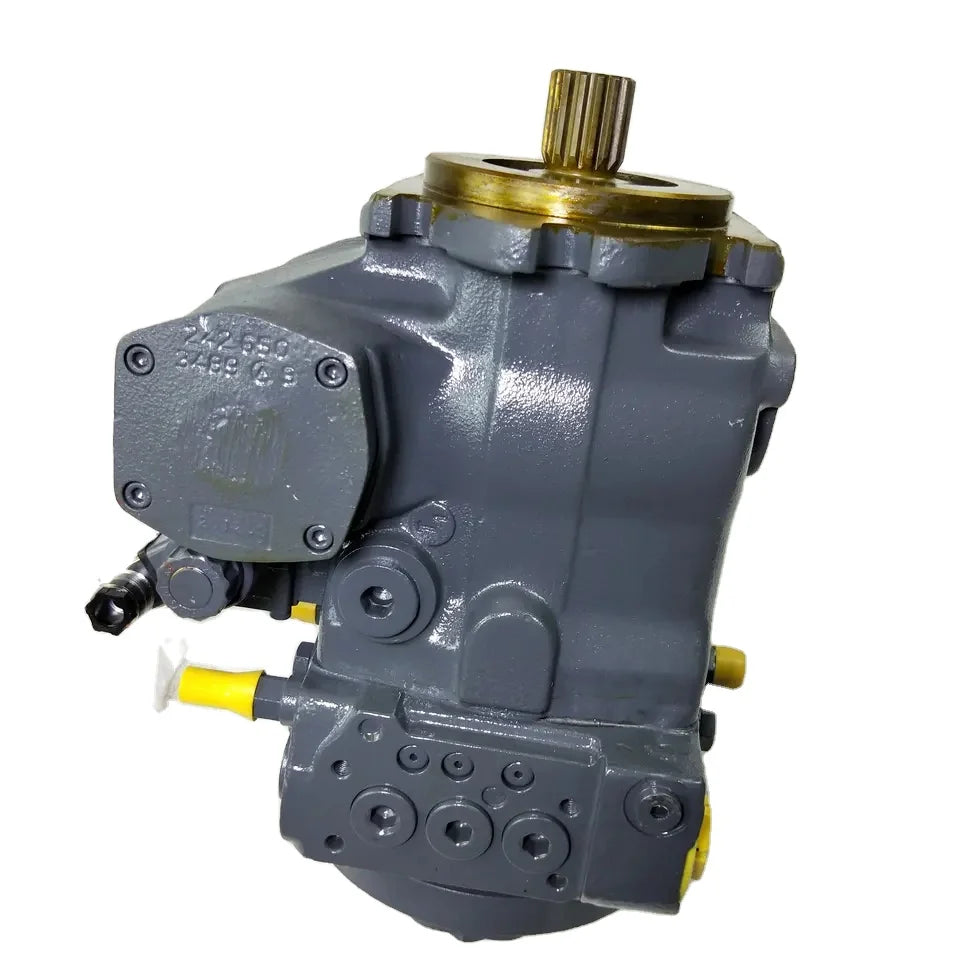

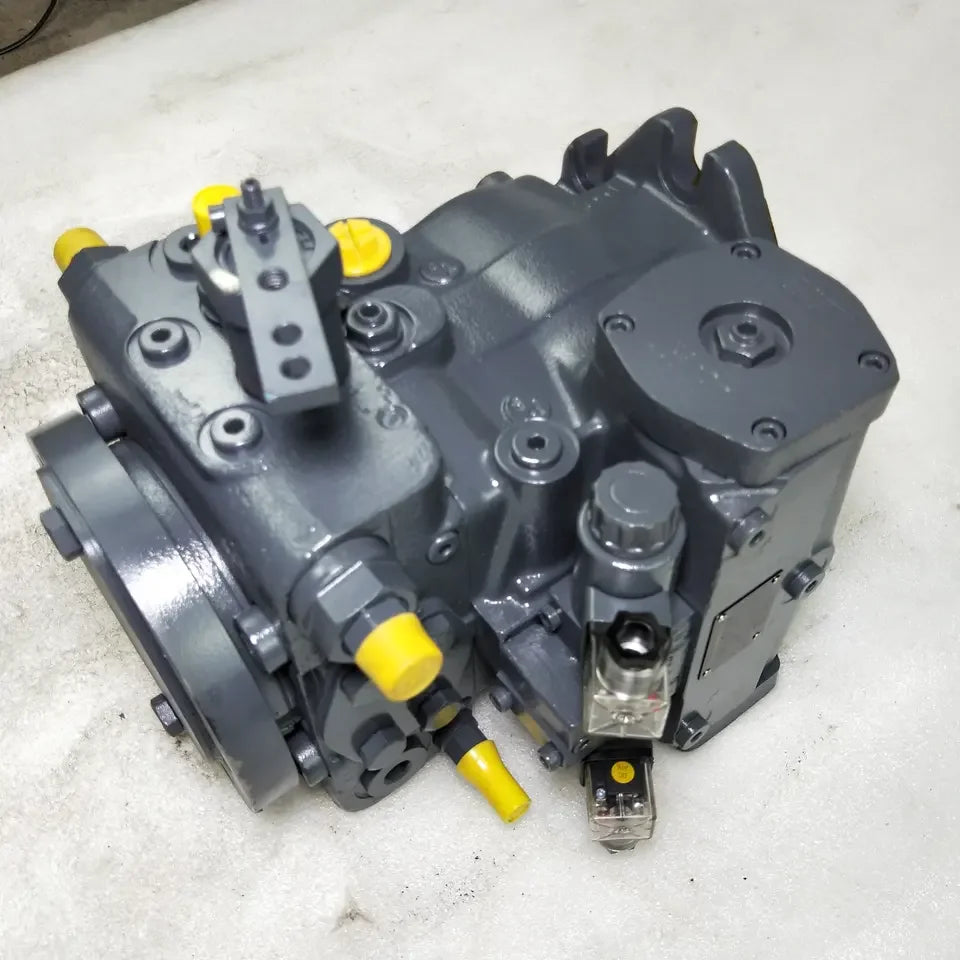

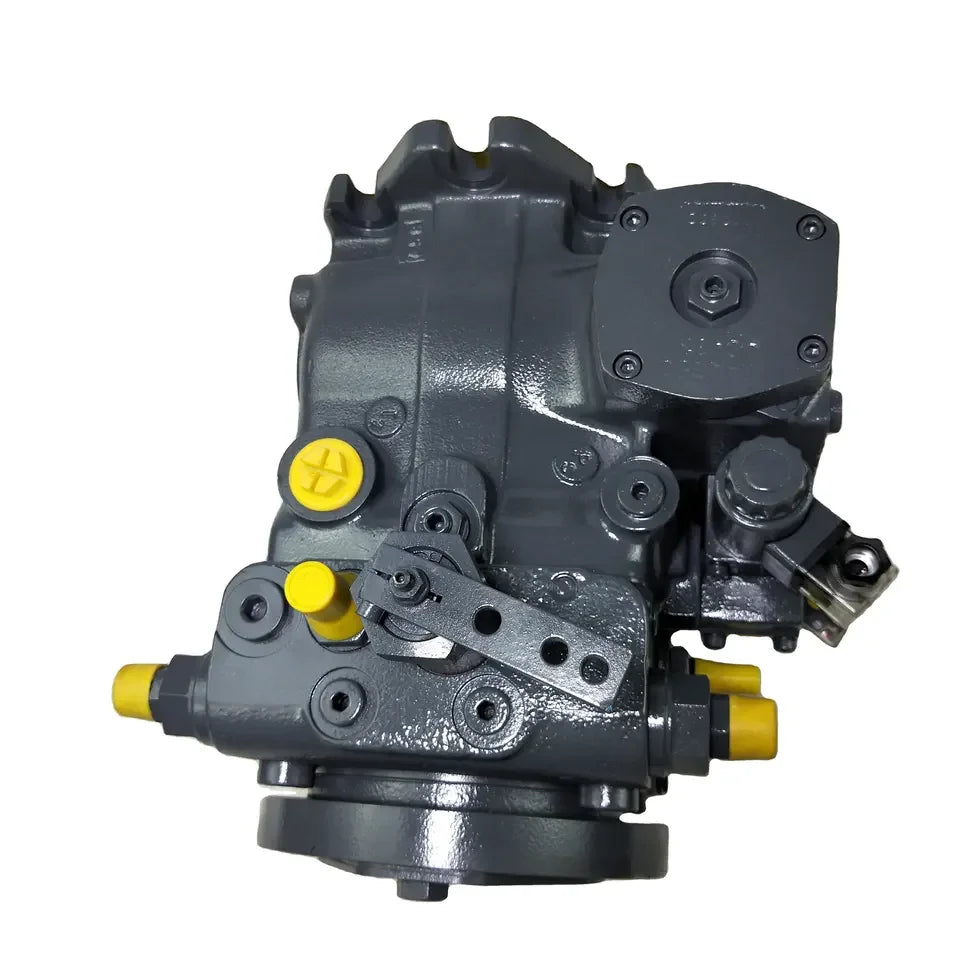

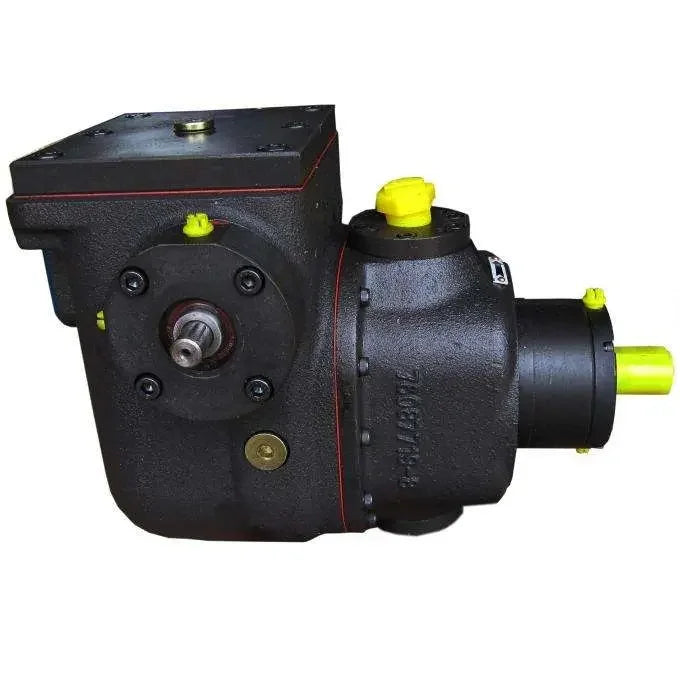

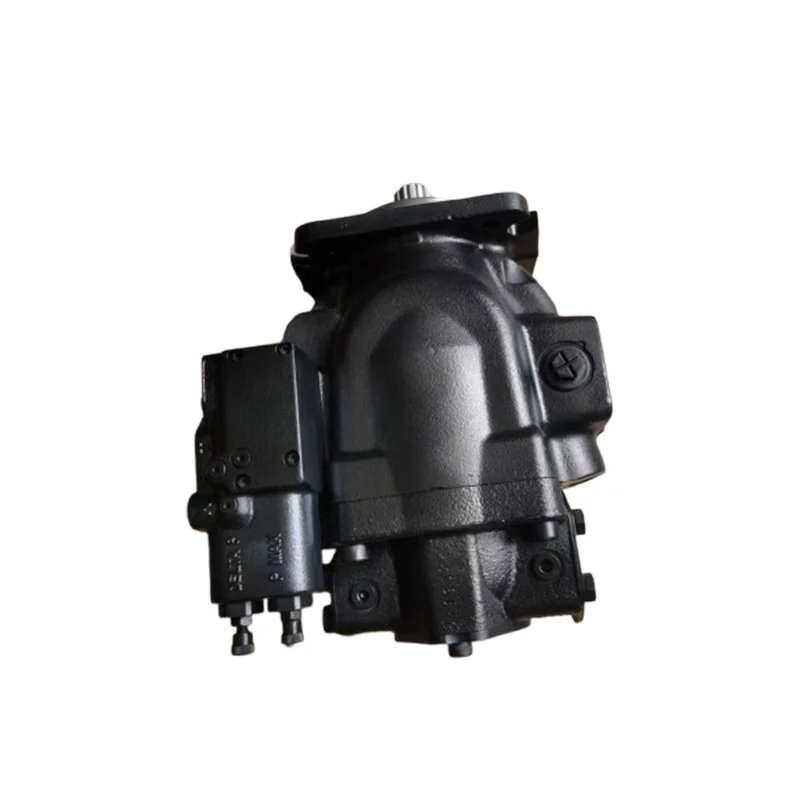

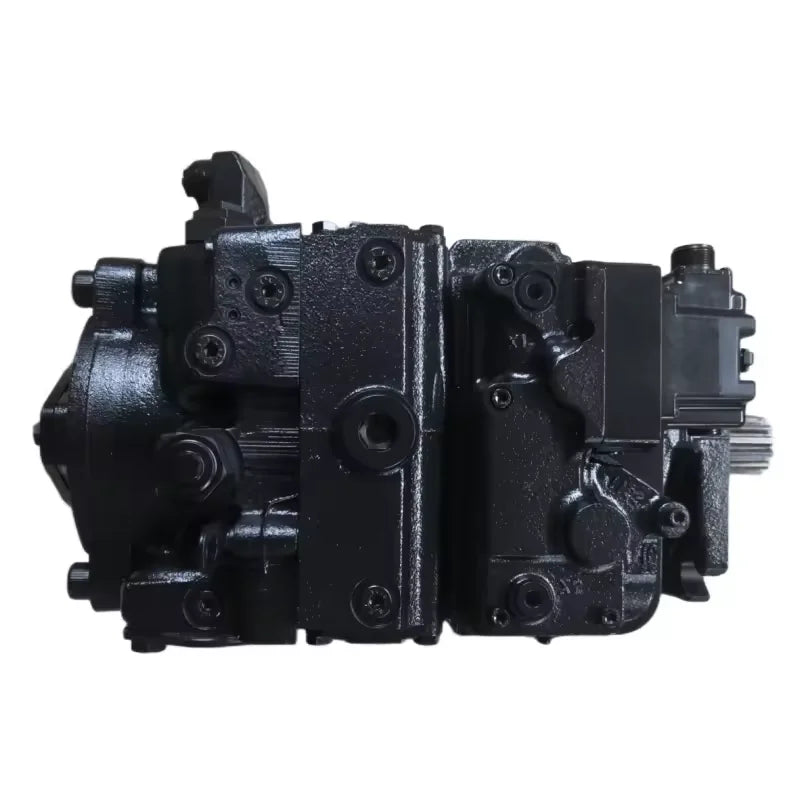

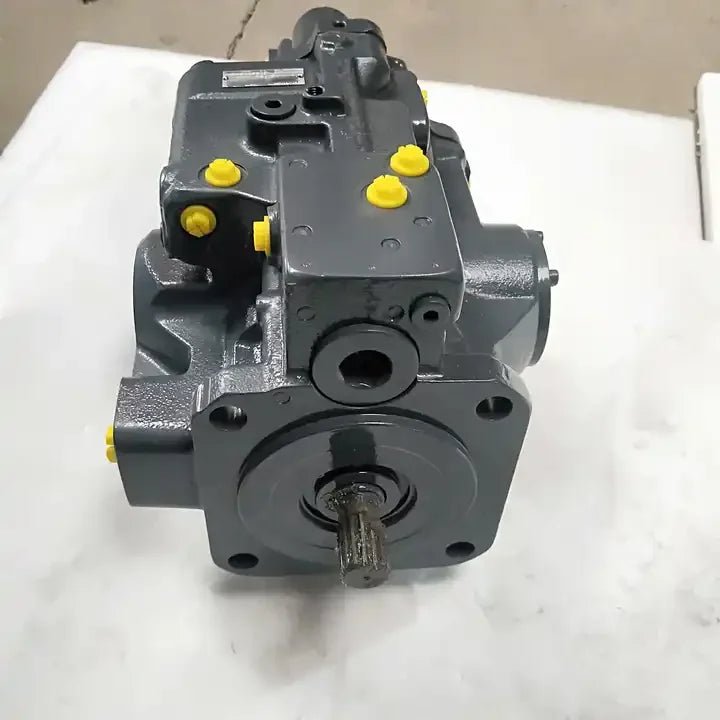

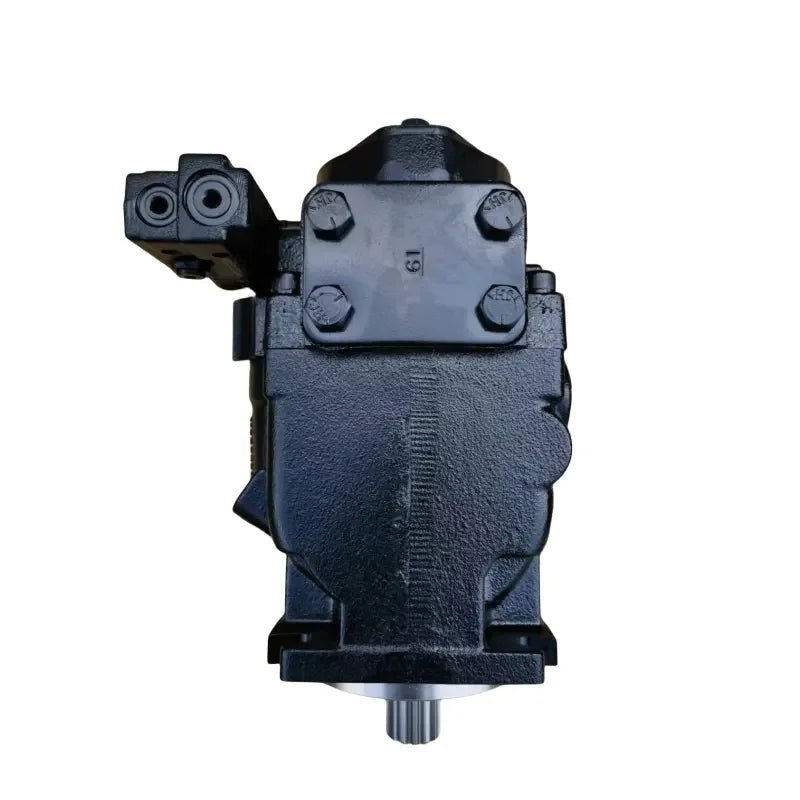

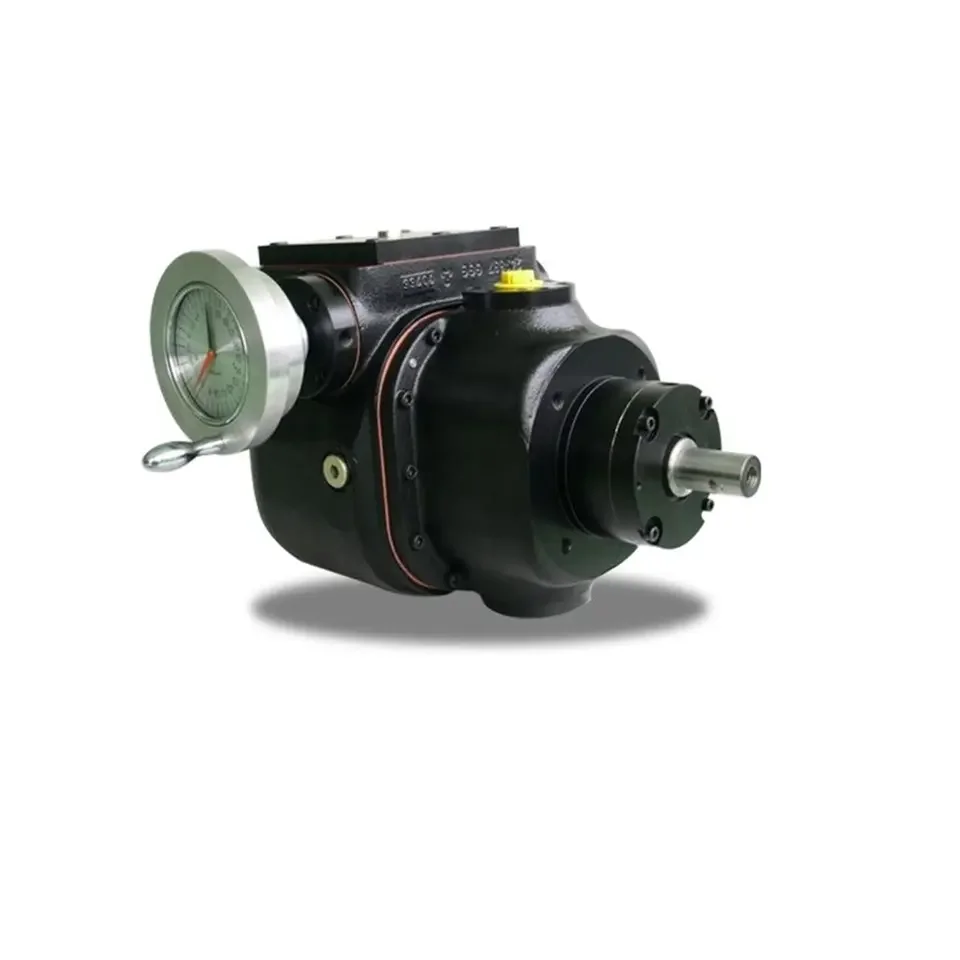

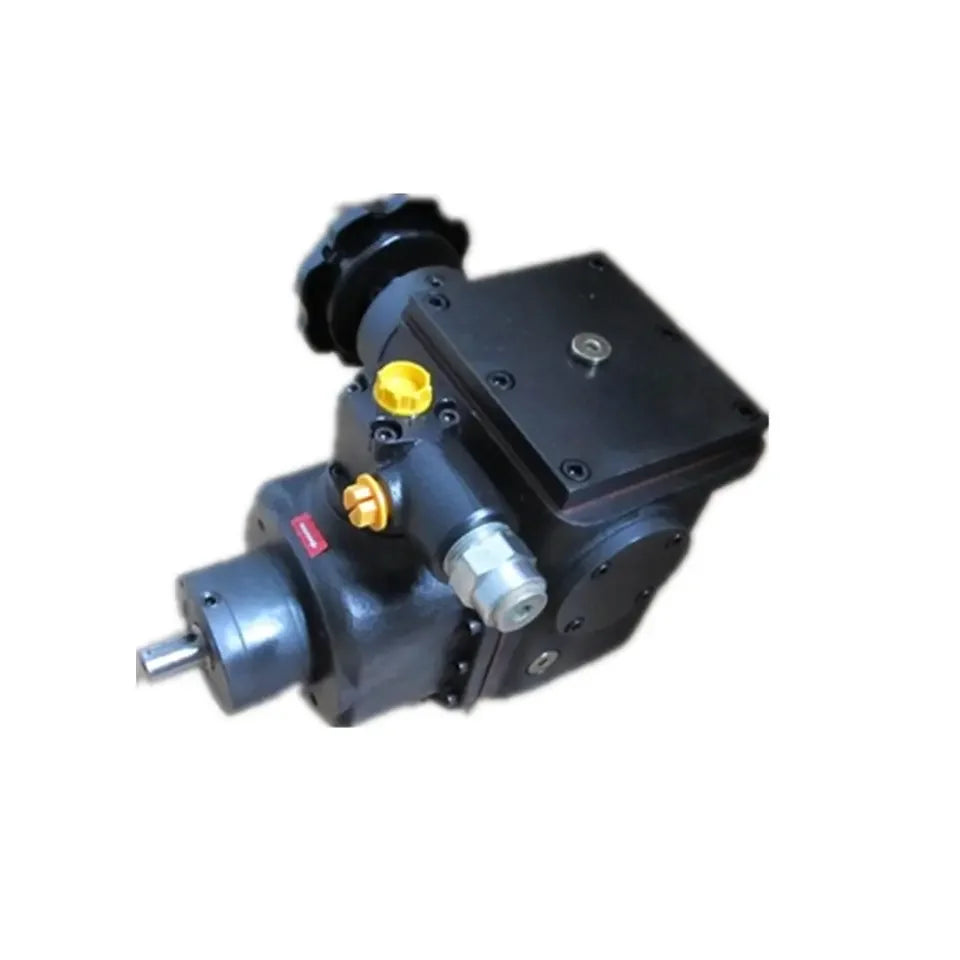

Axial Piston Pumps

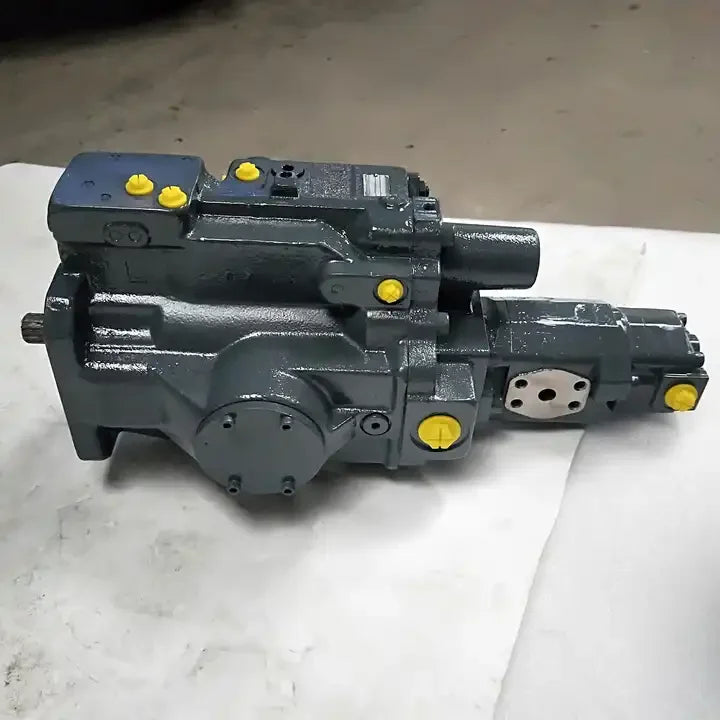

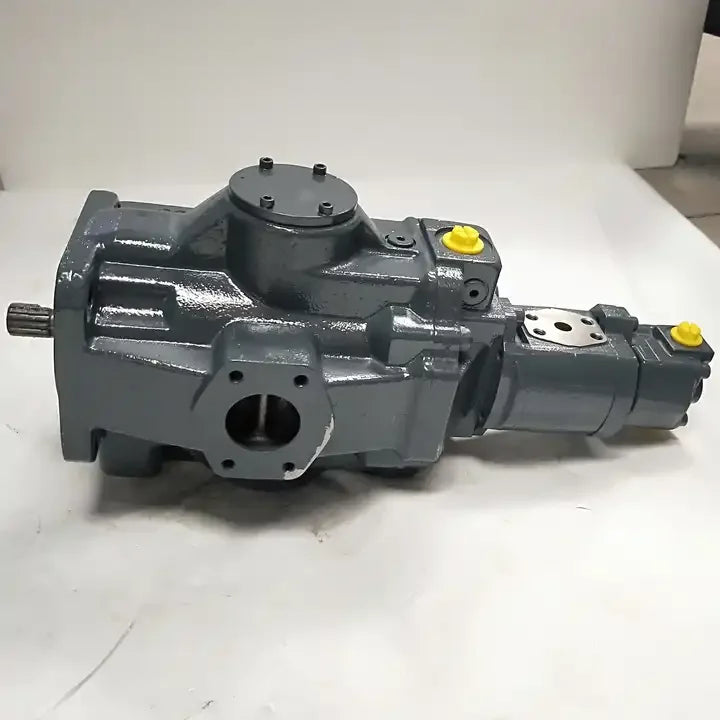

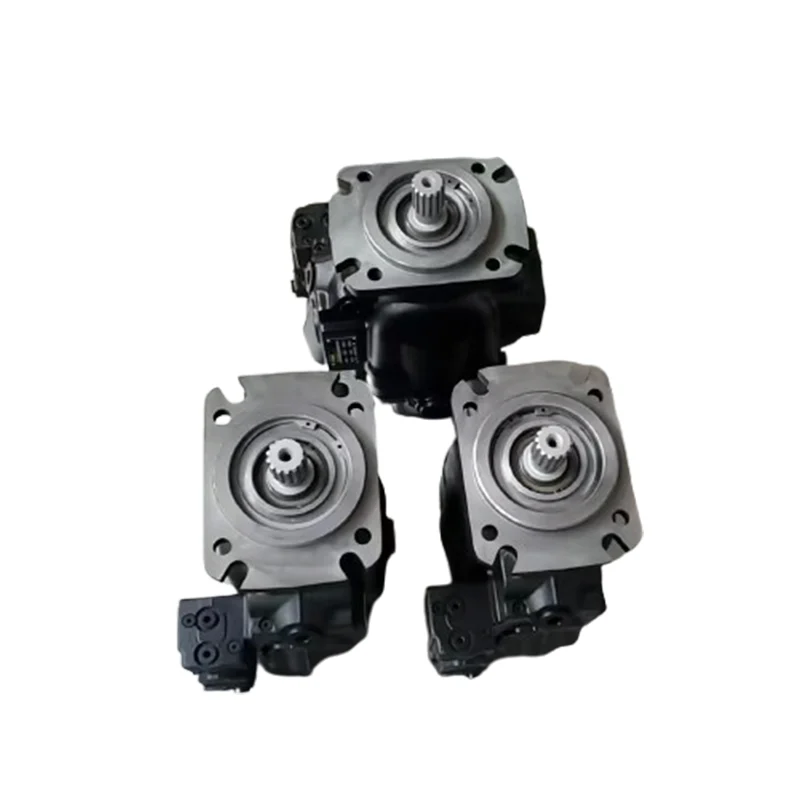

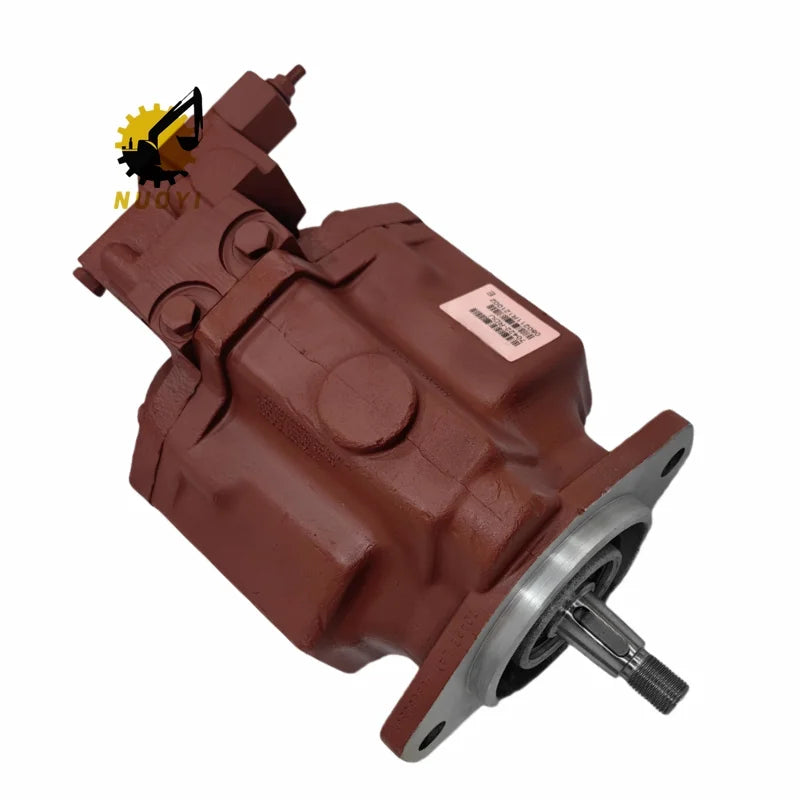

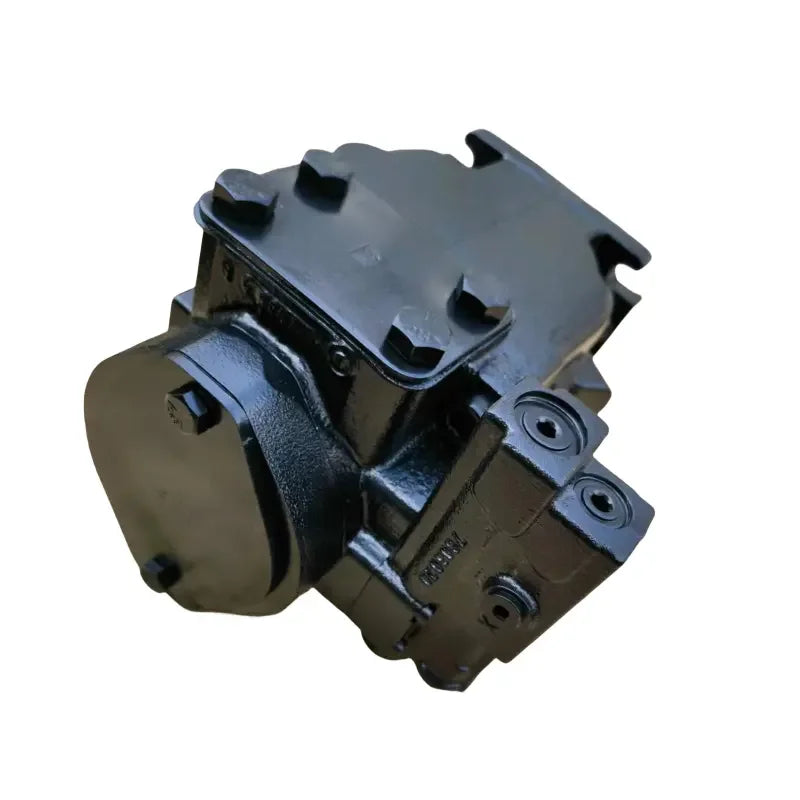

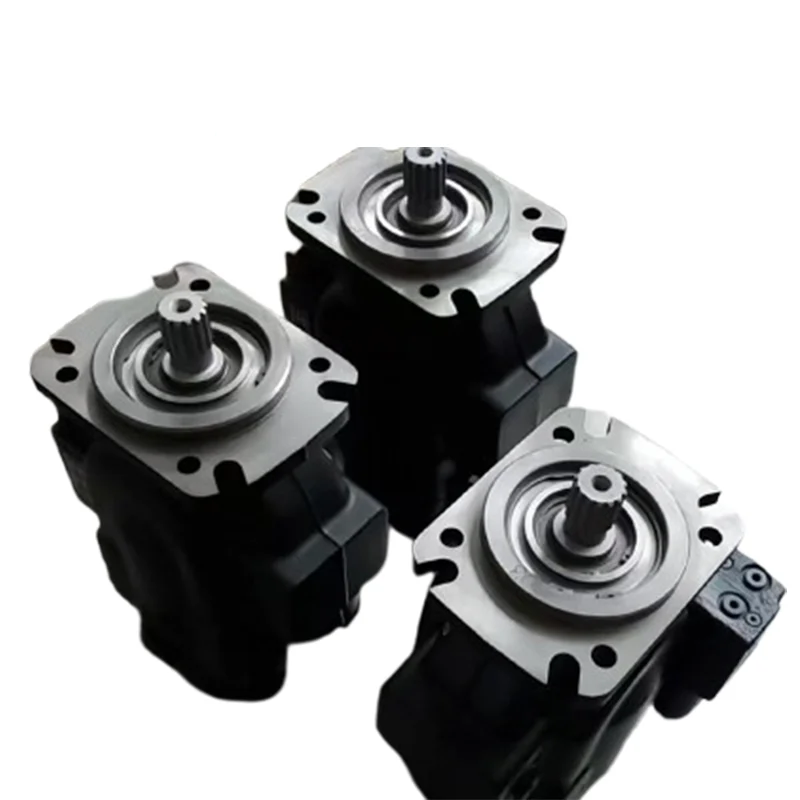

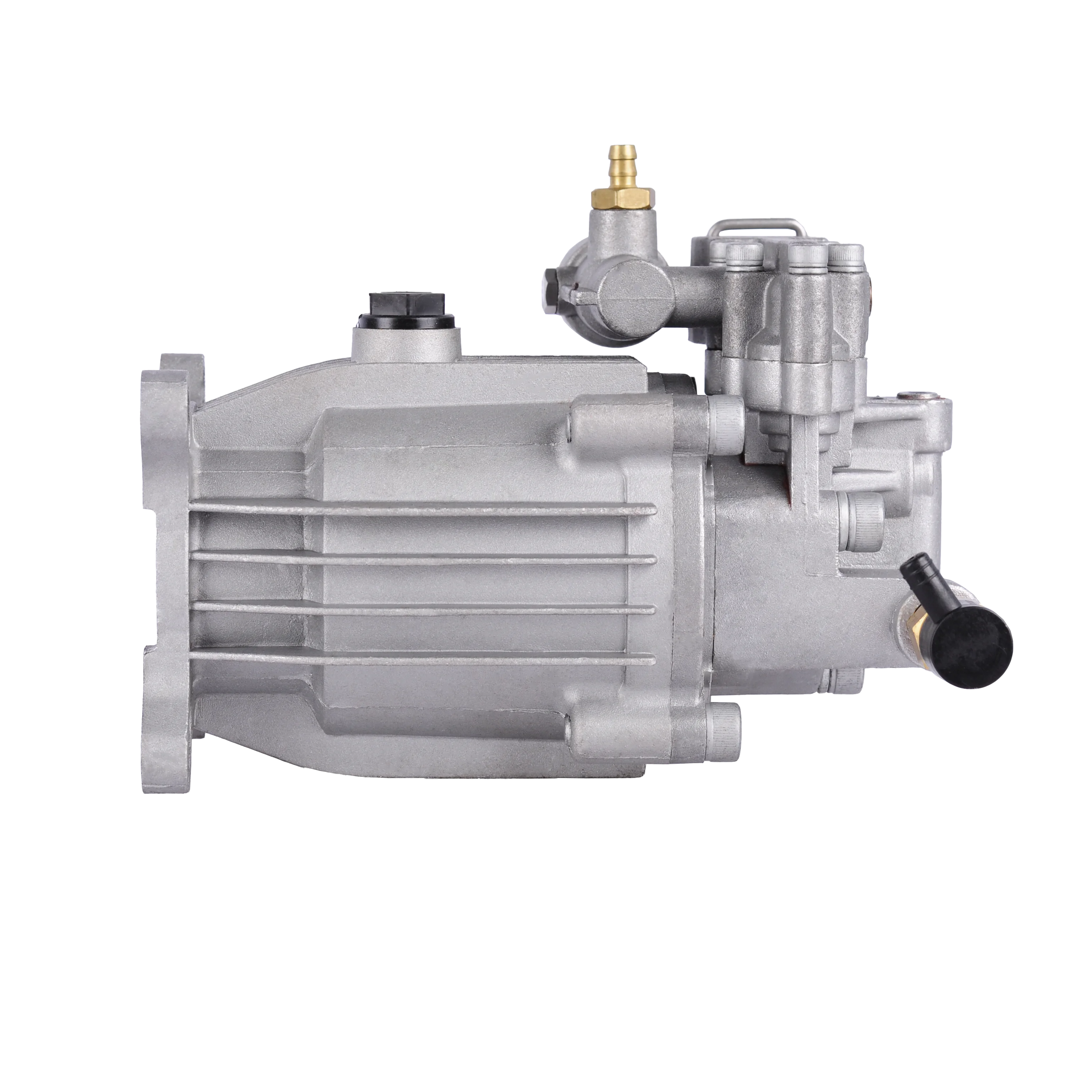

Axial piston pumps line the pistons up parallel to the drive shaft. This layout packs a lot of flow into a small body, so you will find it on excavators, loaders, injection moulding machines and industrial power units. Most variable pumps in service today are axial designs.

Radial Piston Pumps

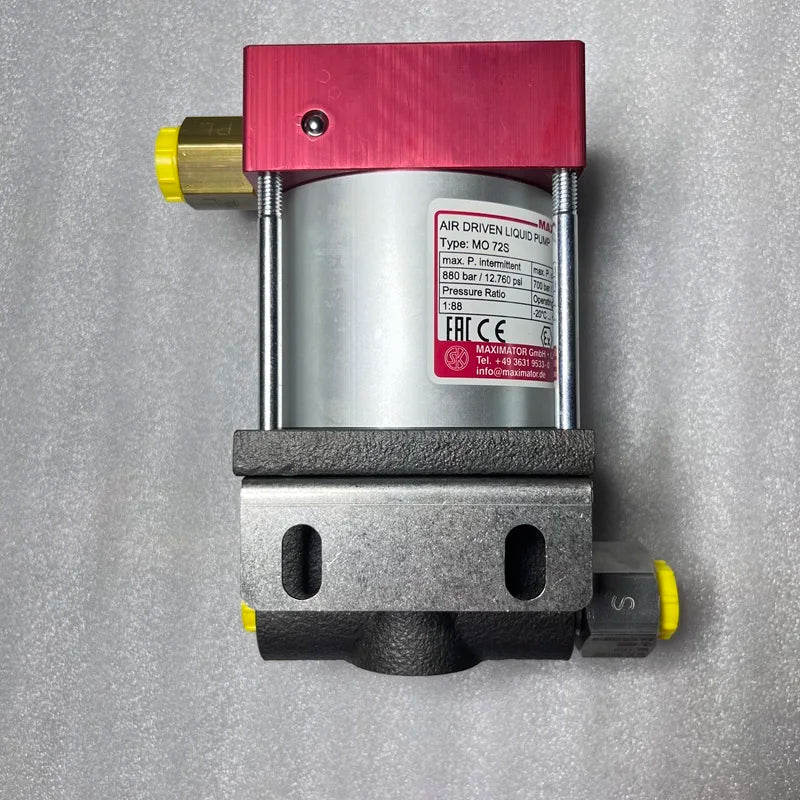

Radial piston pumps arrange the pistons outward from the shaft, like spokes on a wheel. They reach very high pressures, up to around 700 bar in some designs, and they run quietly with low pulsation. Typical jobs include presses, clamping fixtures, machine tools, hydraulic tools and test rigs.

Three Axial Designs You Will Meet

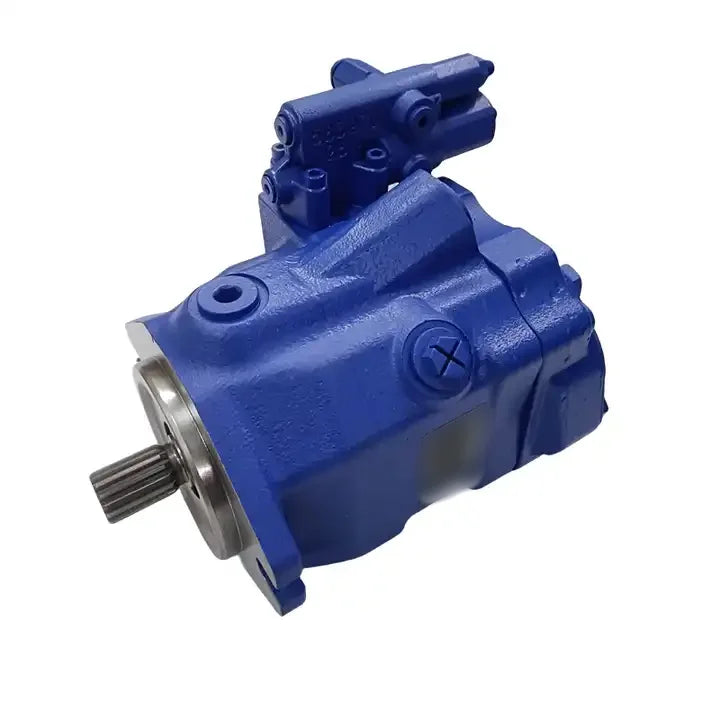

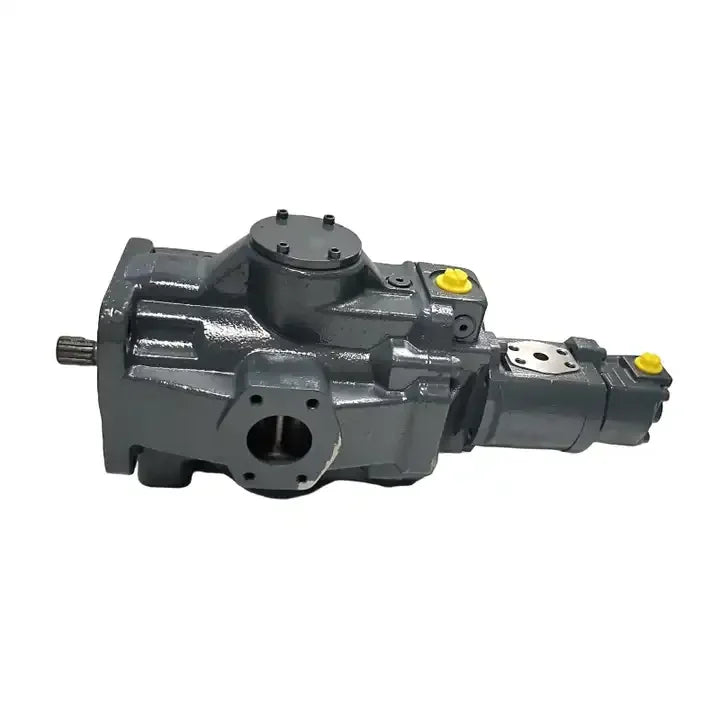

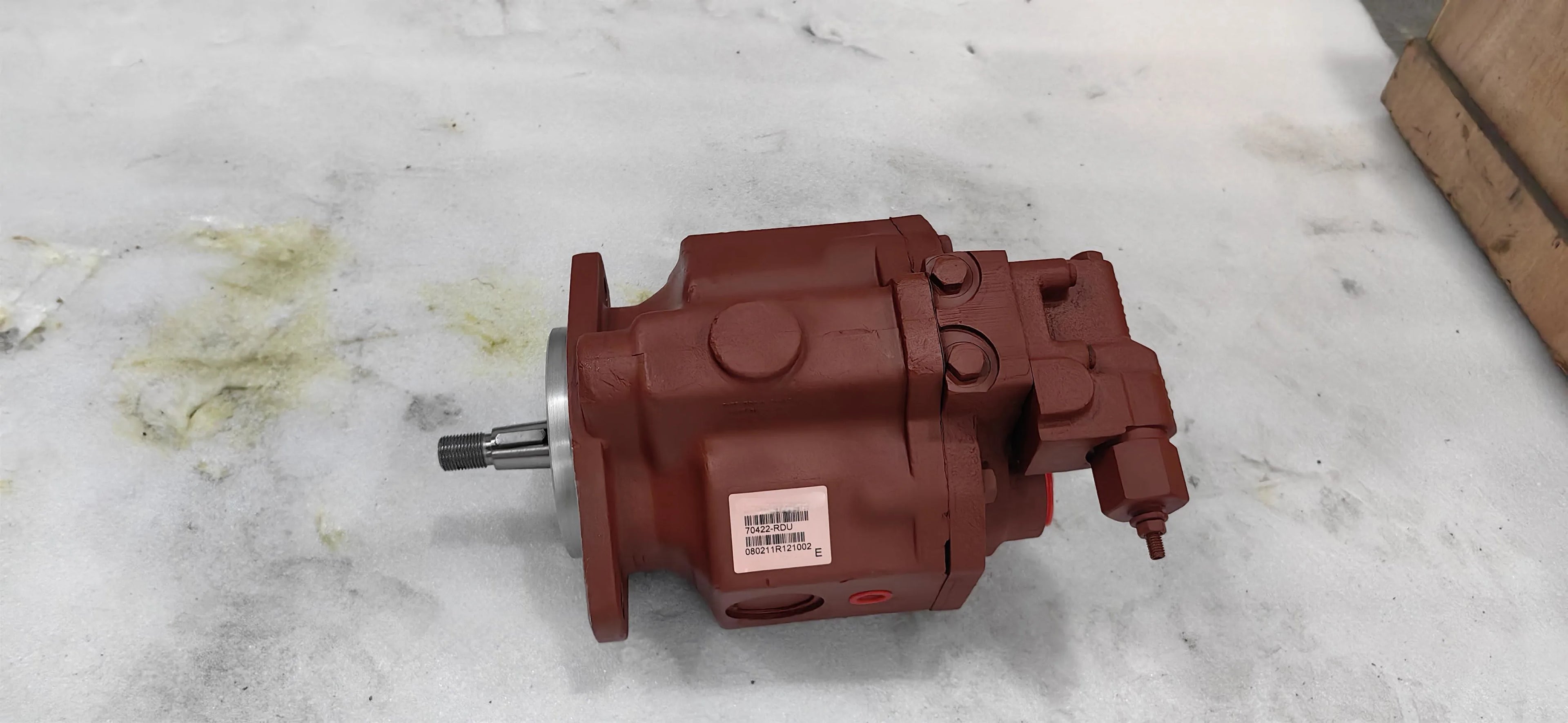

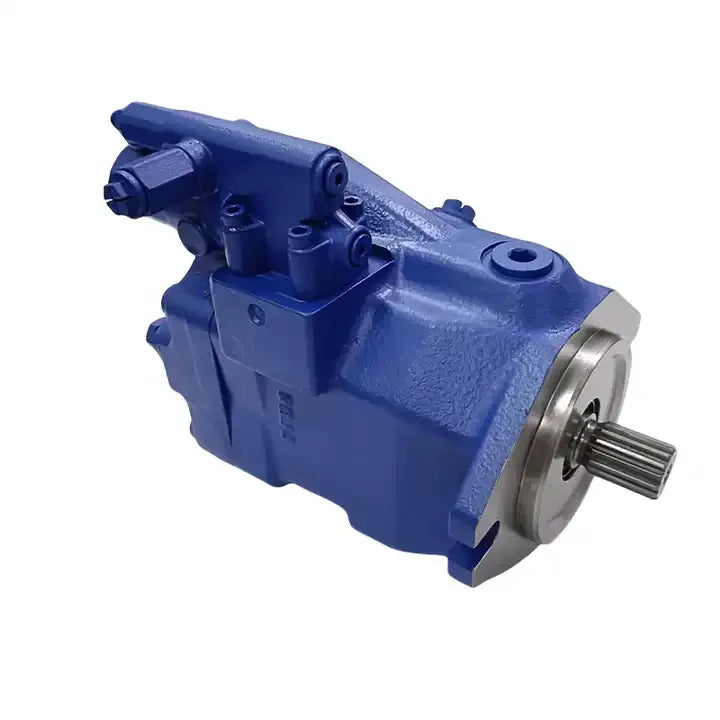

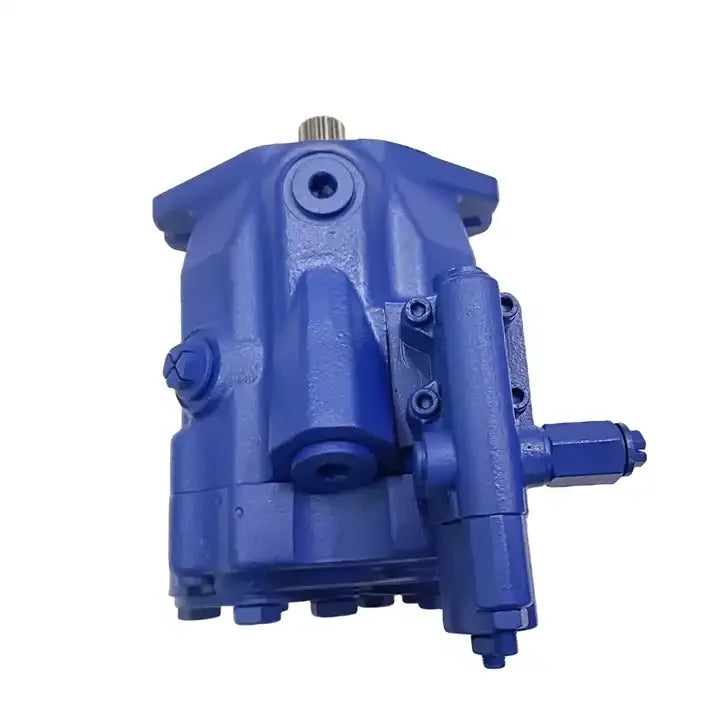

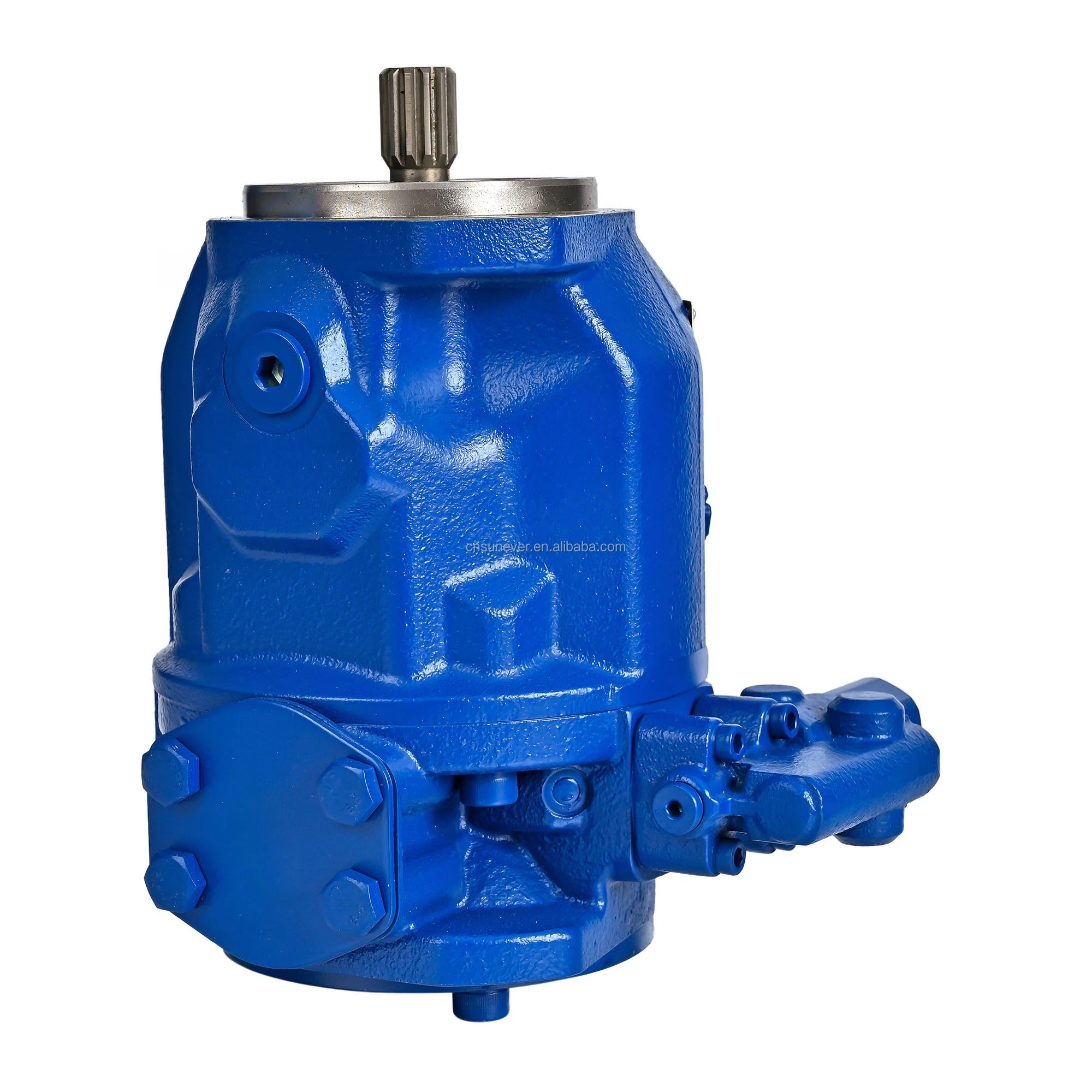

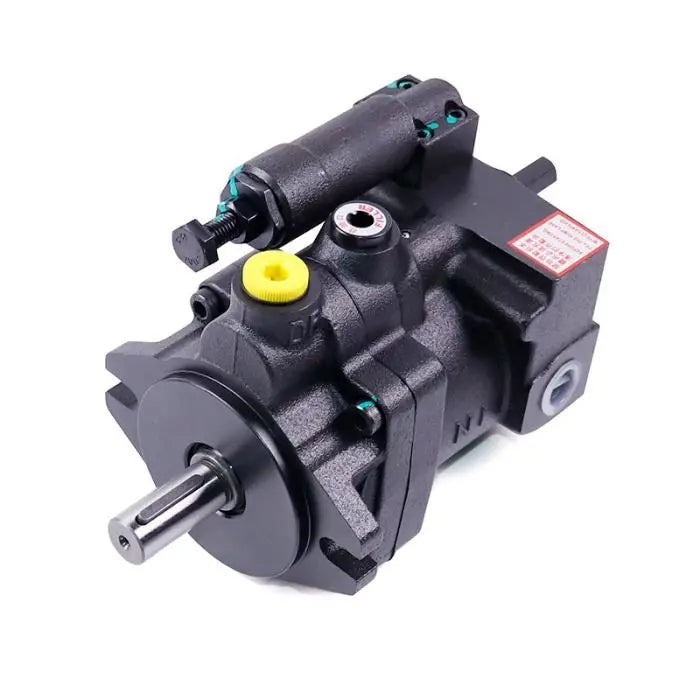

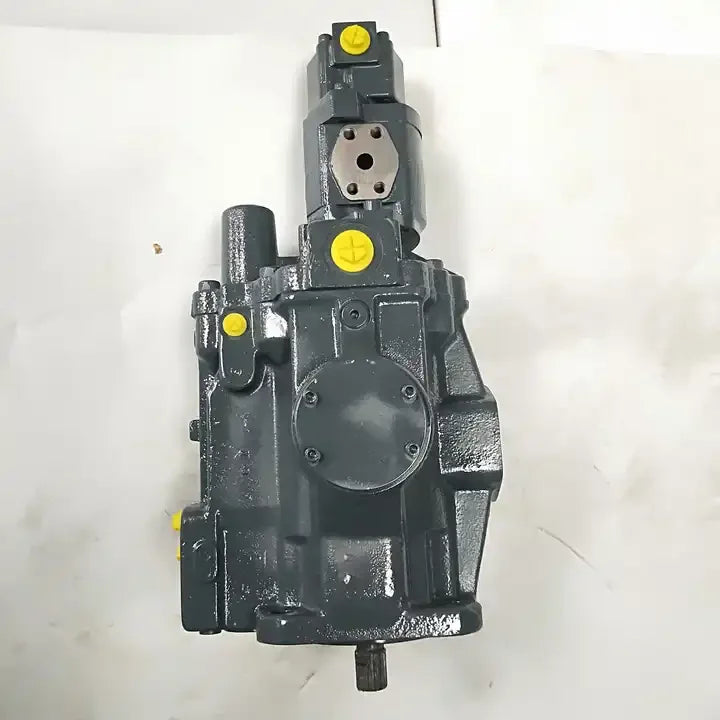

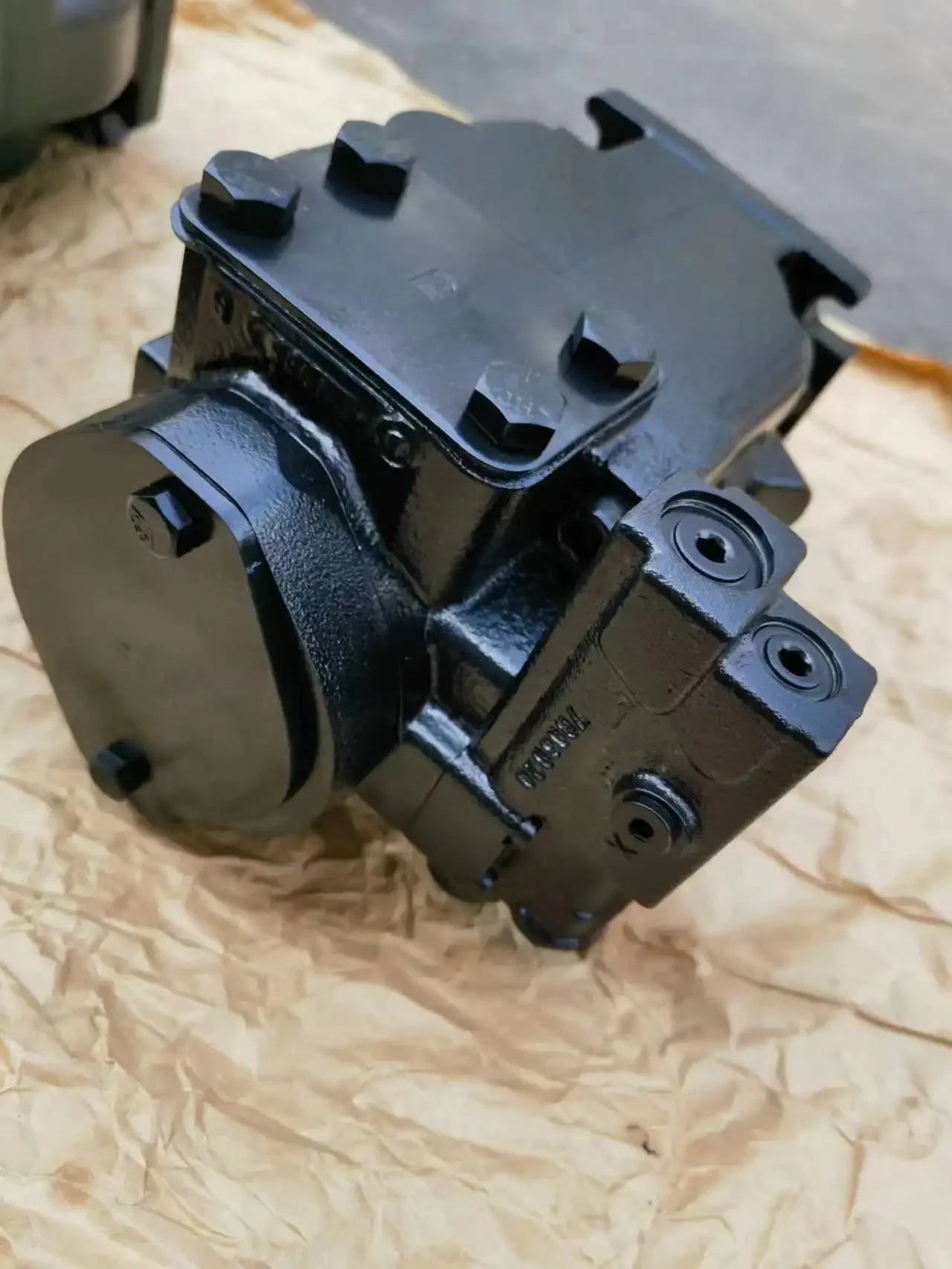

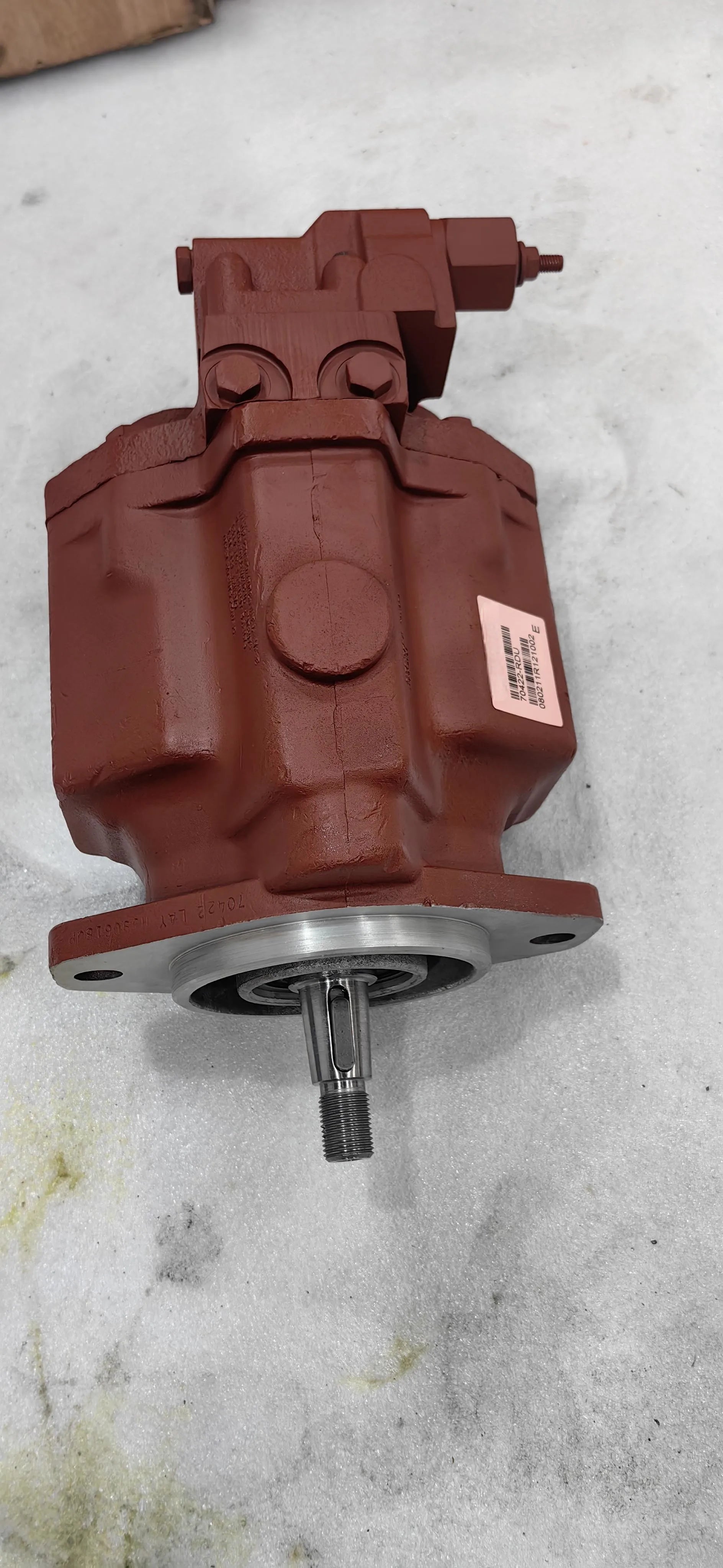

Swash Plate Piston Pumps

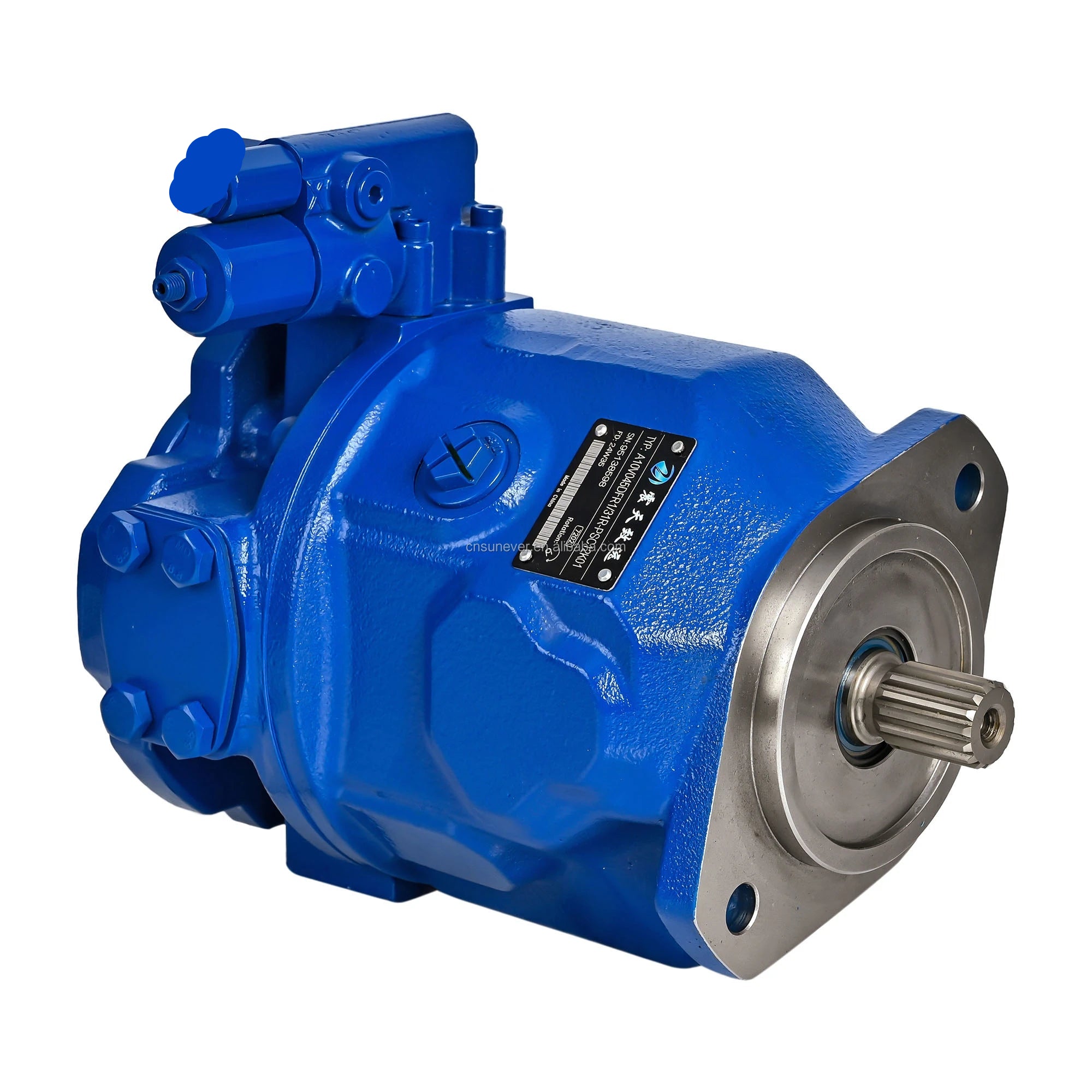

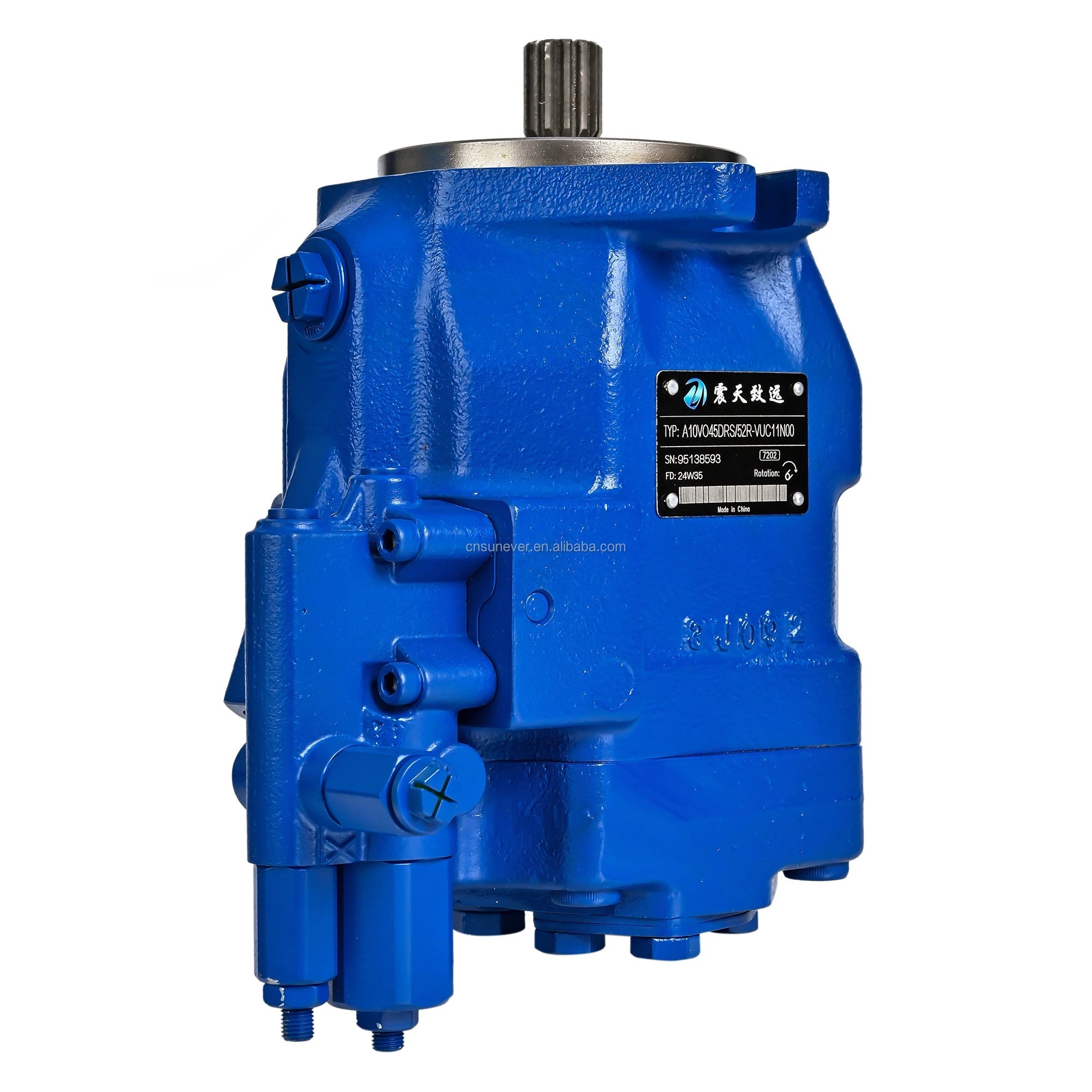

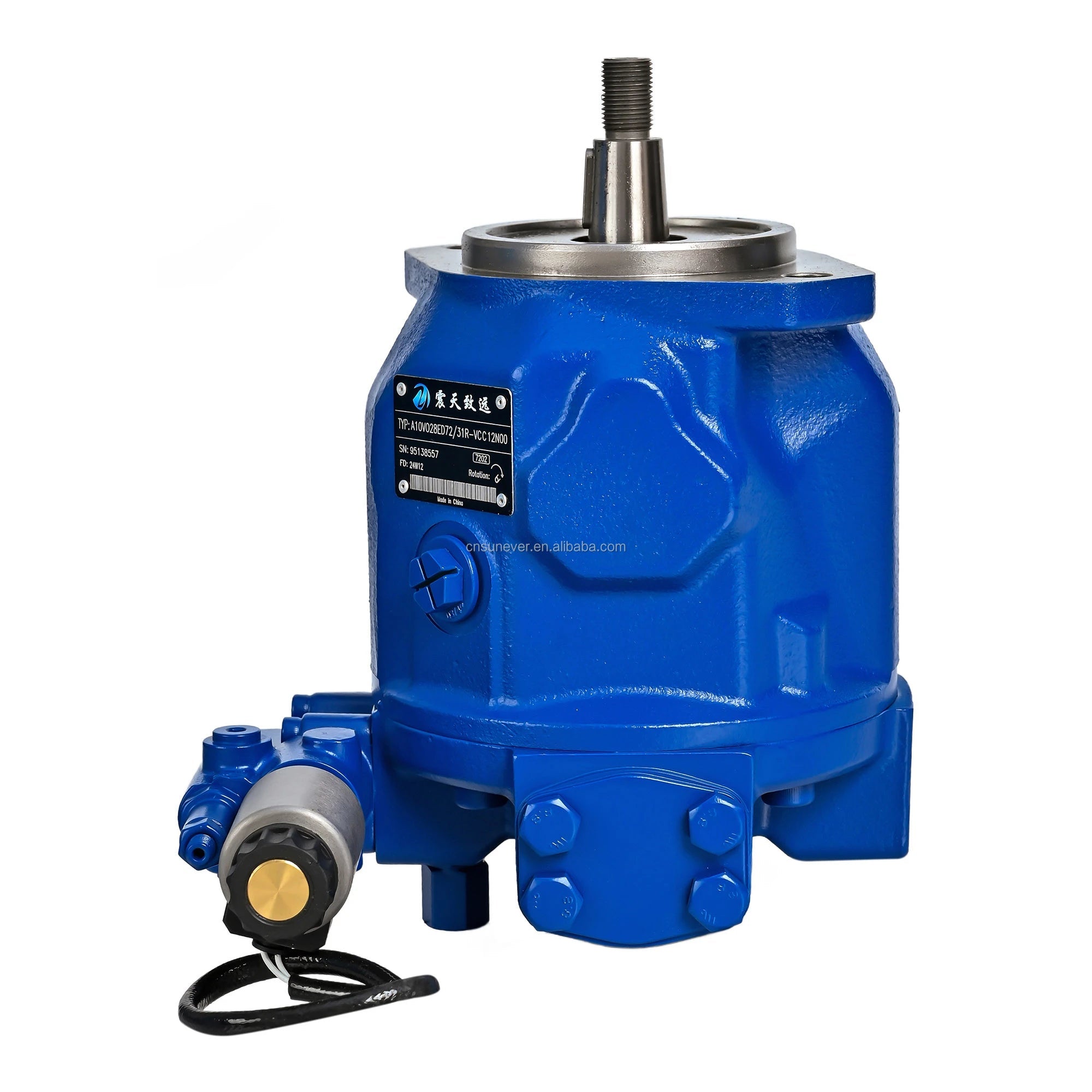

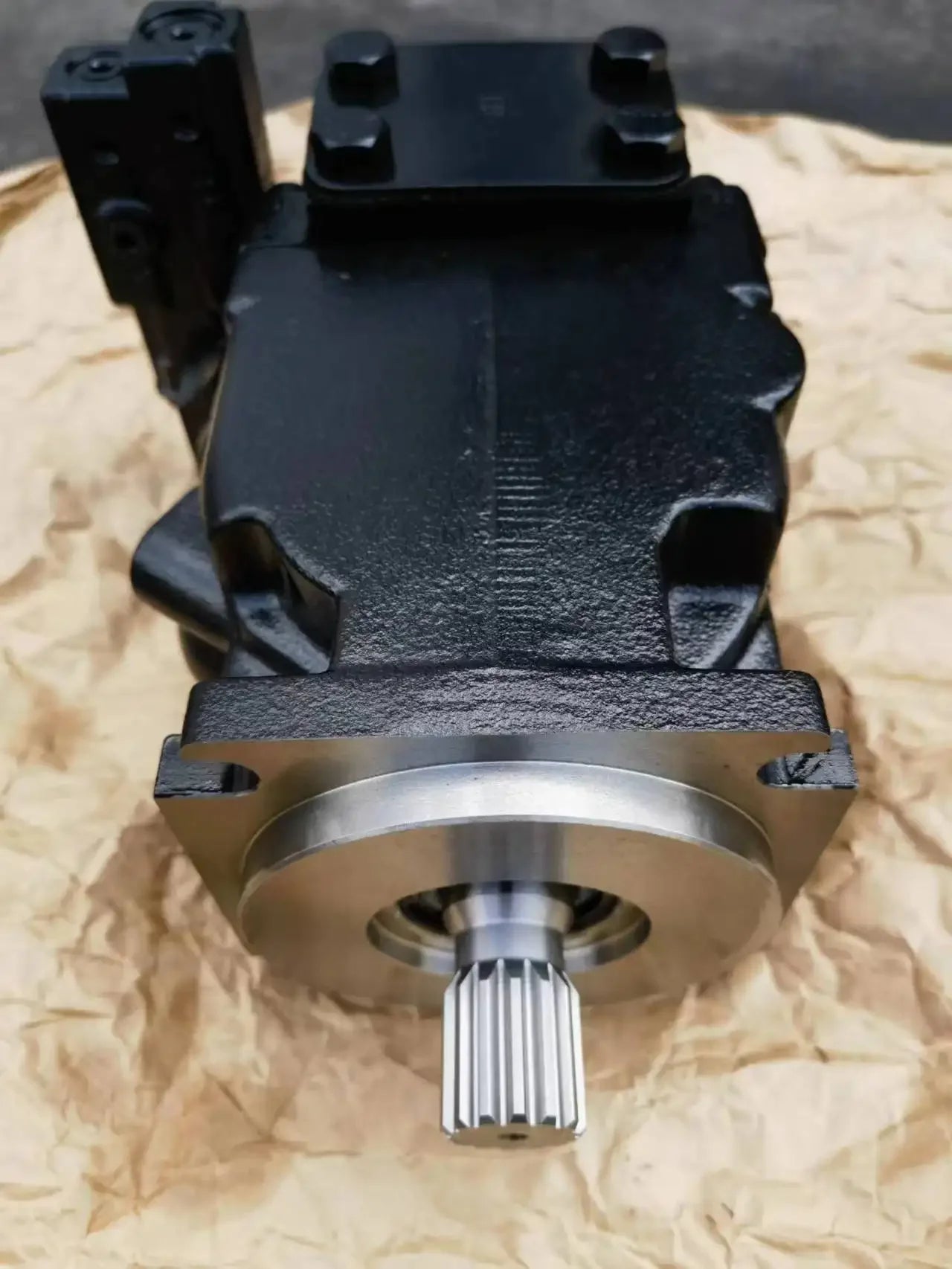

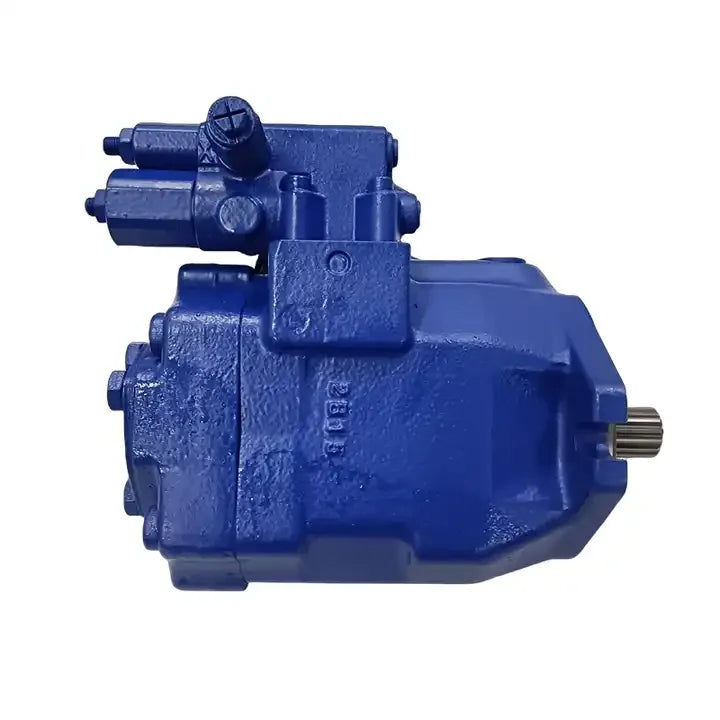

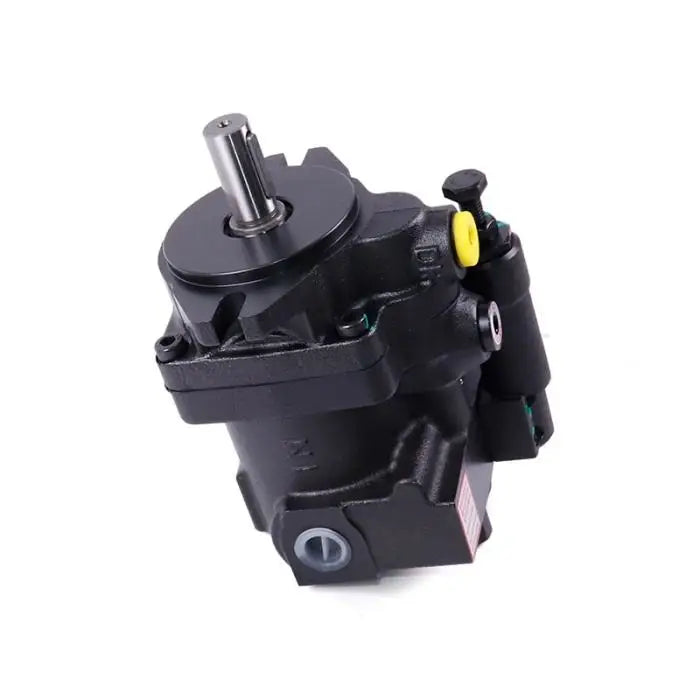

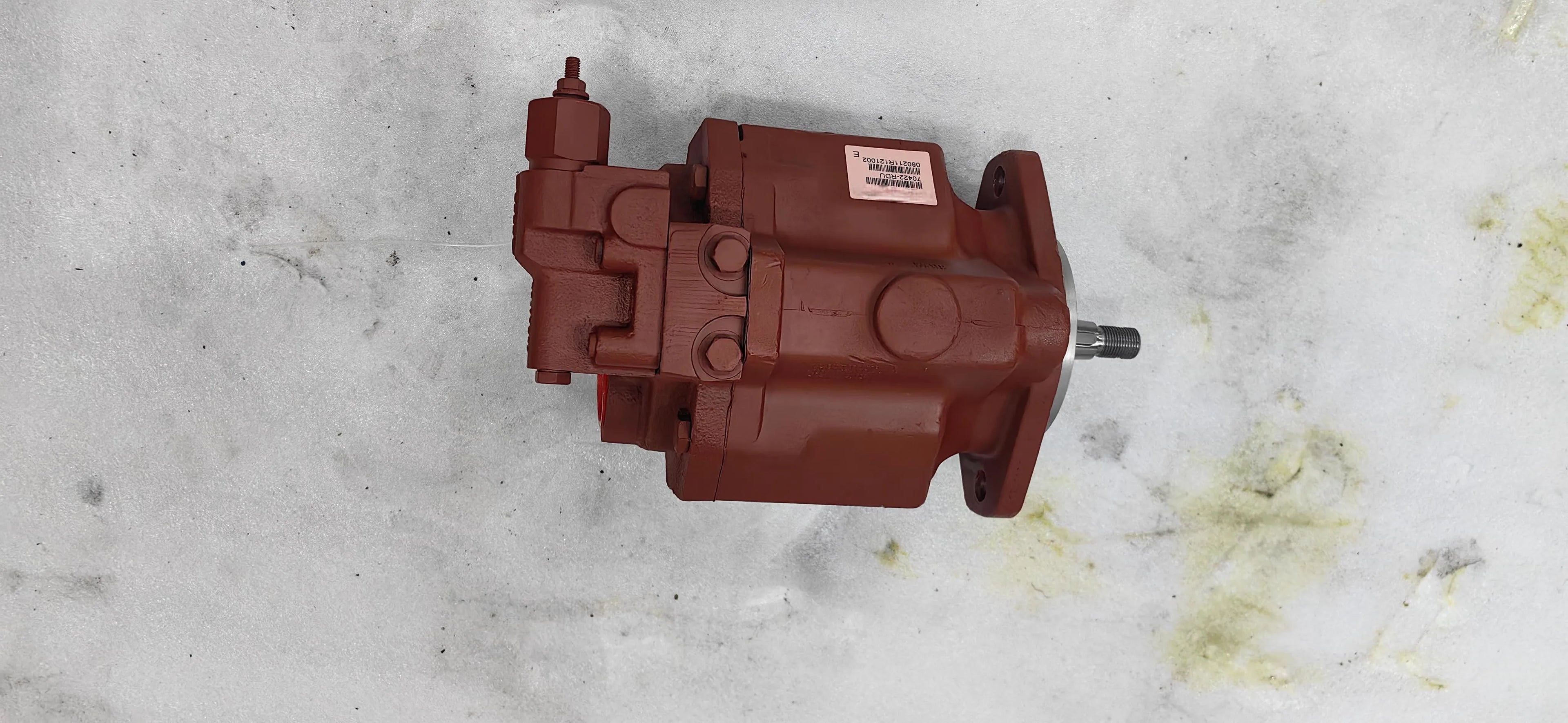

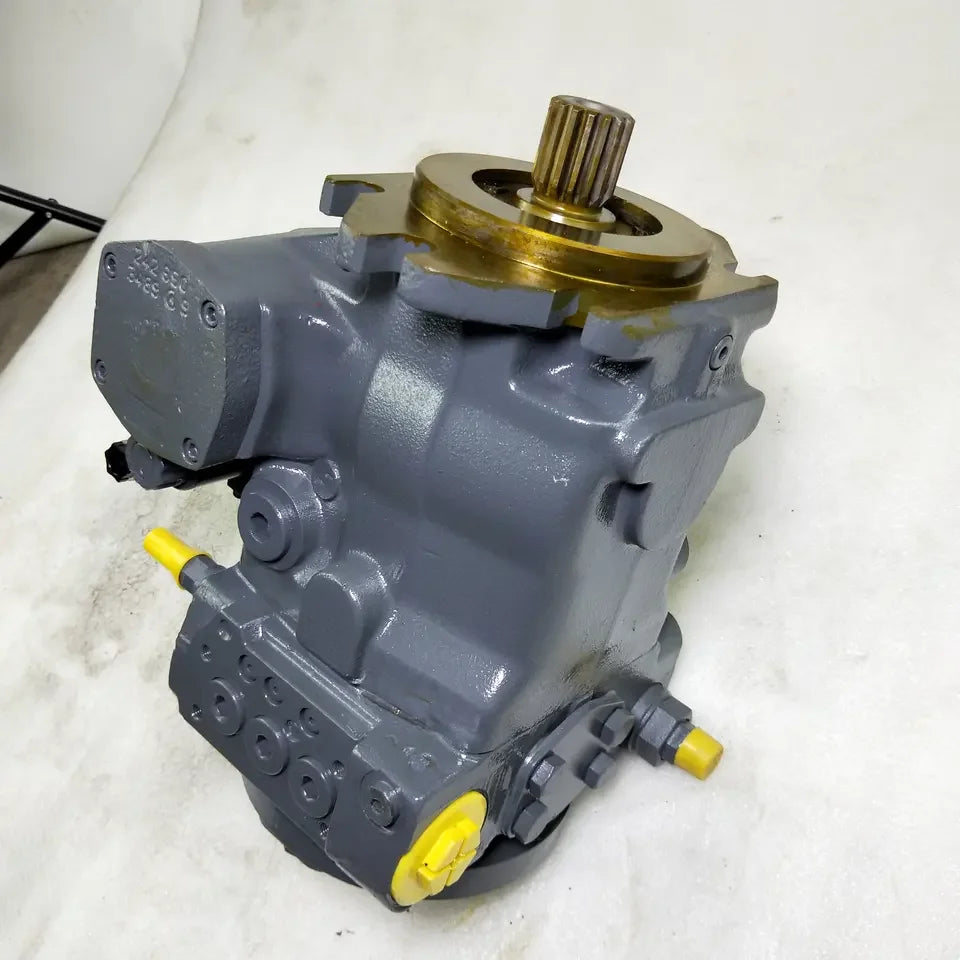

In swash plate piston pumps, the drive shaft passes straight through the cylinder block. A tilted plate pushes the pistons in and out as the block turns. Change the plate angle and you change the flow. The design is compact, takes a wide range of controls and often has a through drive for a second pump.

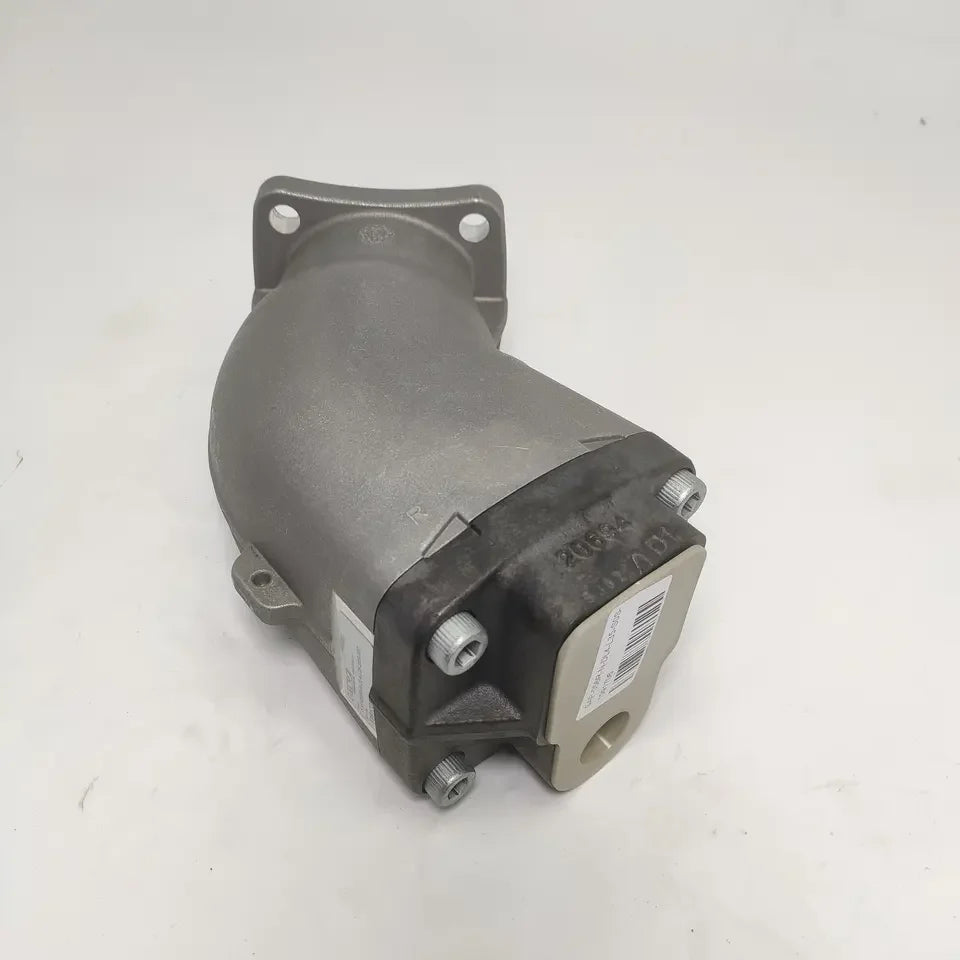

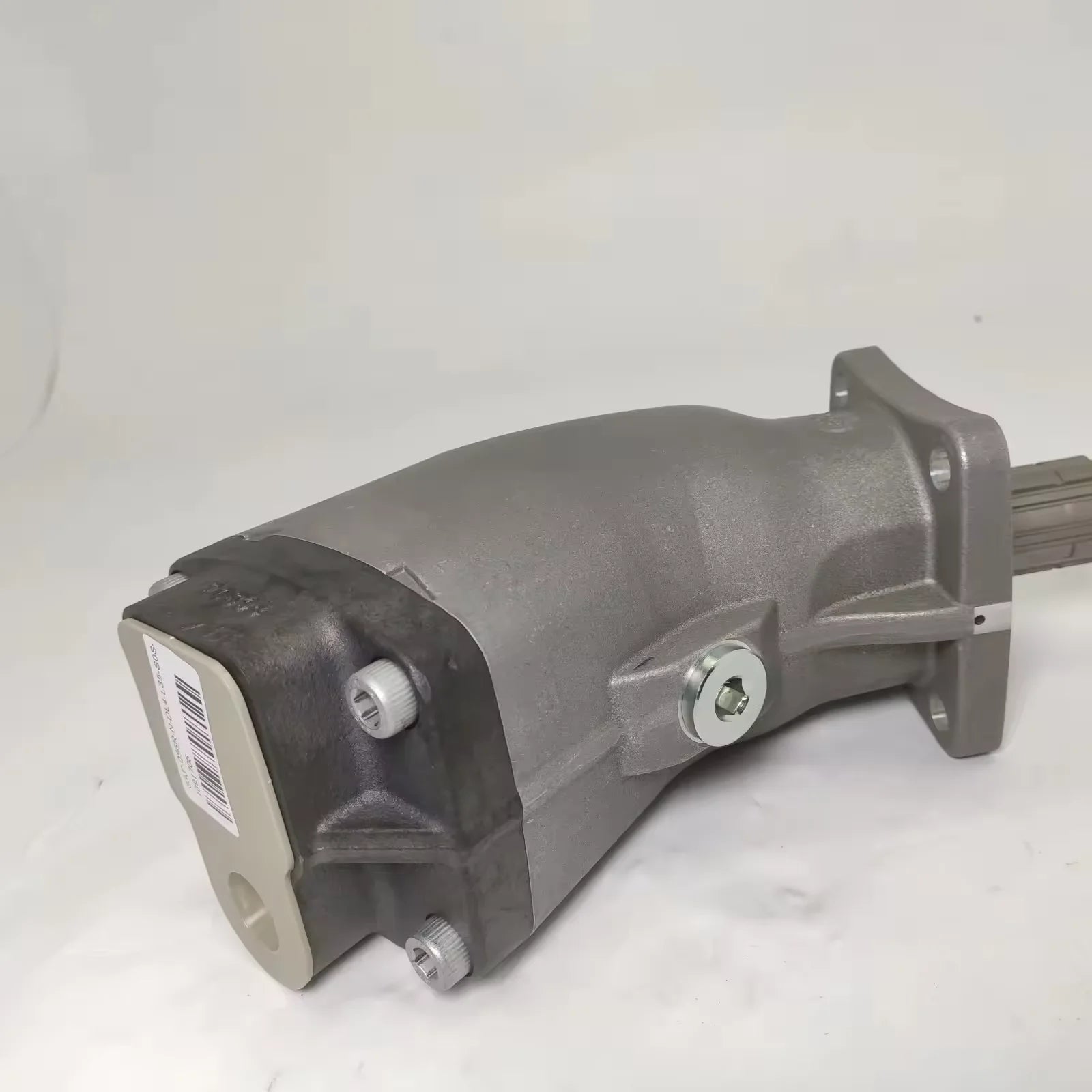

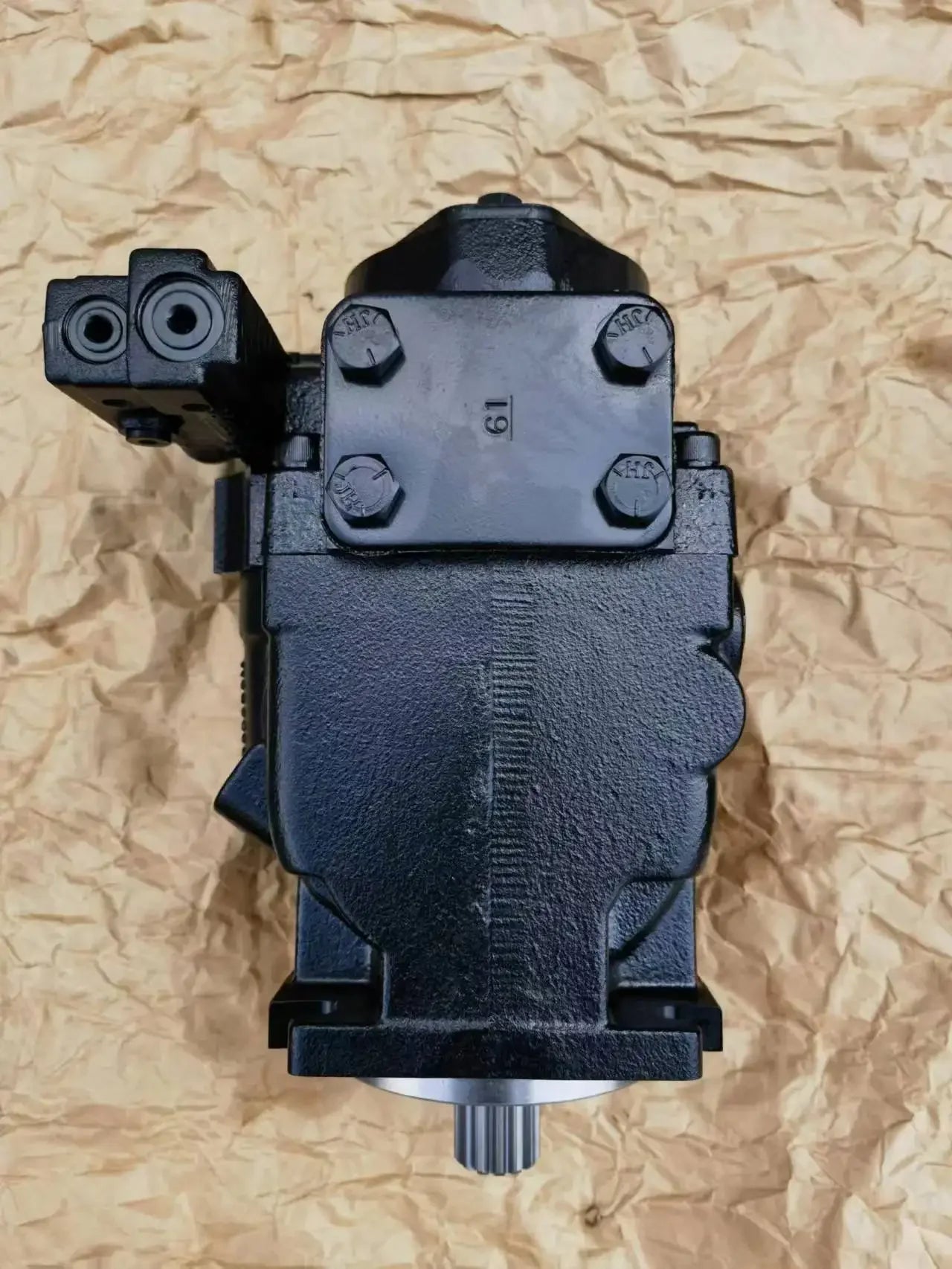

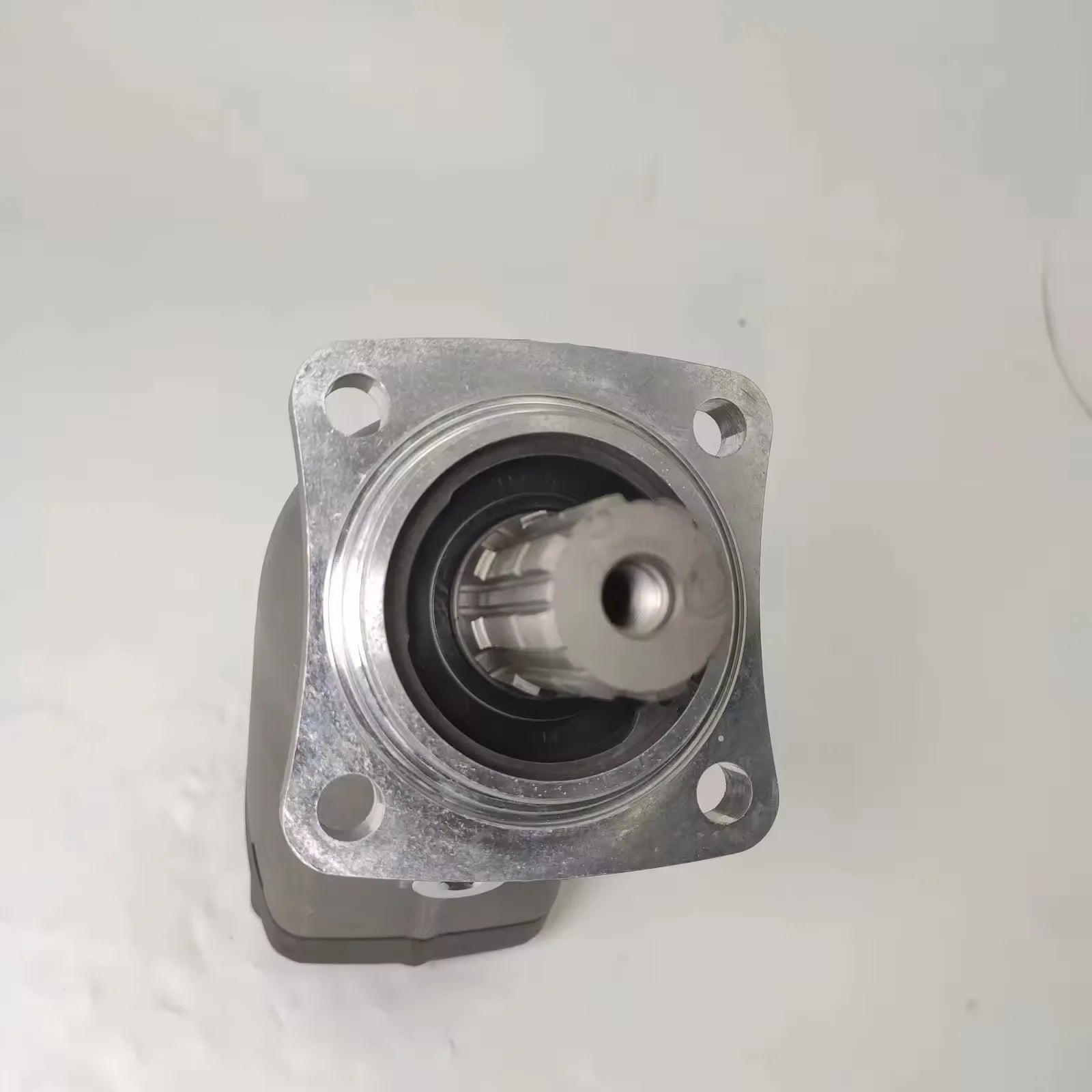

Bent Axis Piston Pumps

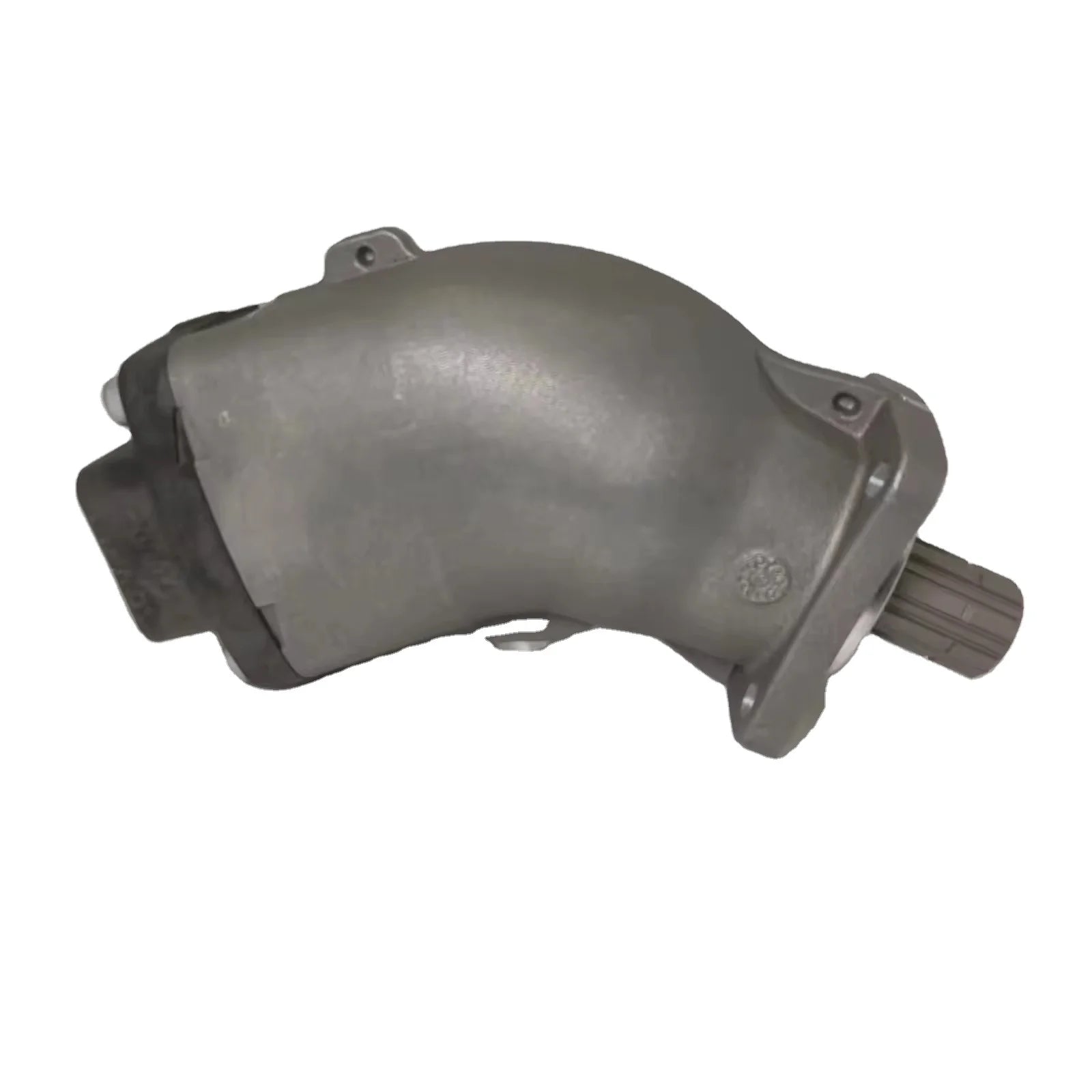

Bent axis piston pumps angle the whole cylinder block away from the shaft. This cuts friction, so they handle higher speeds and peak pressures of around 400 to 450 bar with excellent efficiency. Many are fixed displacement, which makes them popular for winches, cranes and hydrostatic drives.

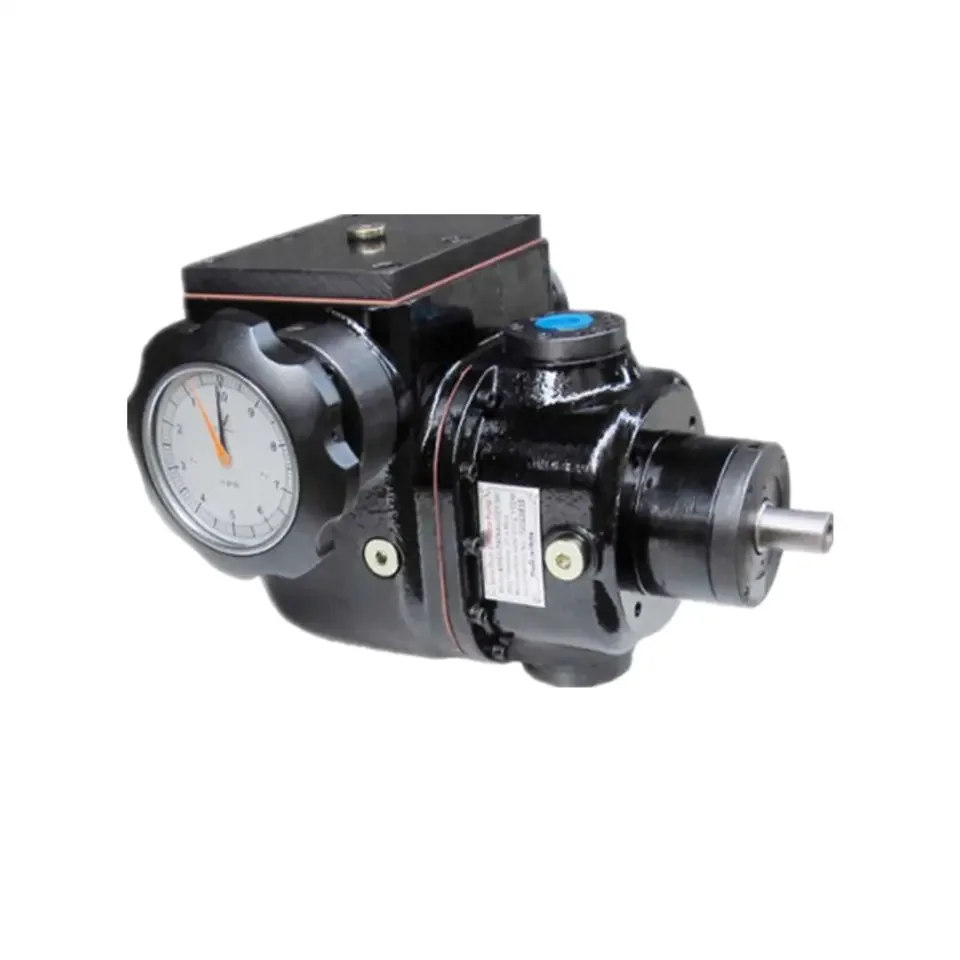

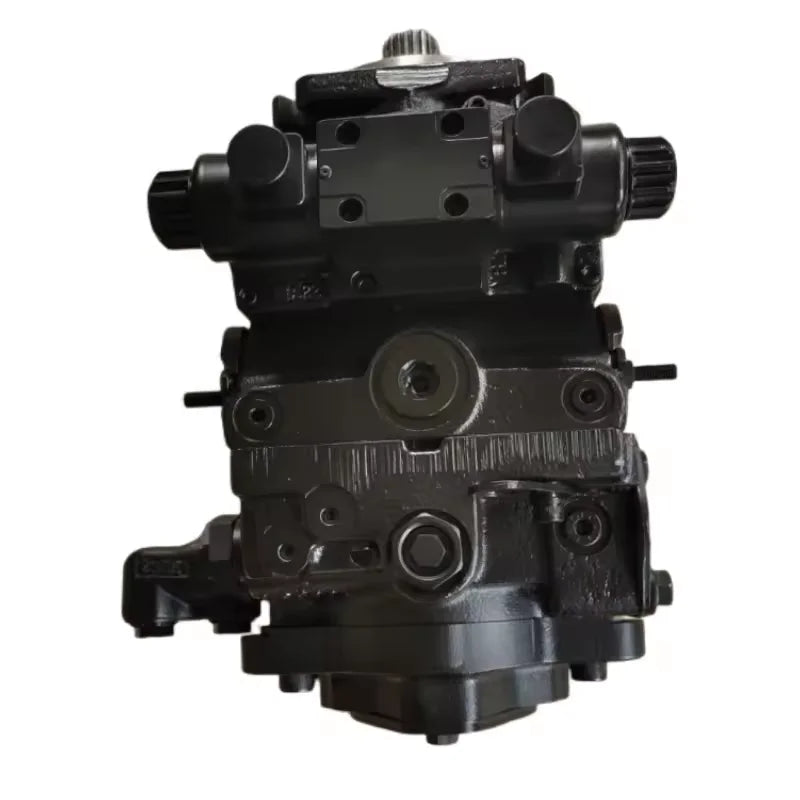

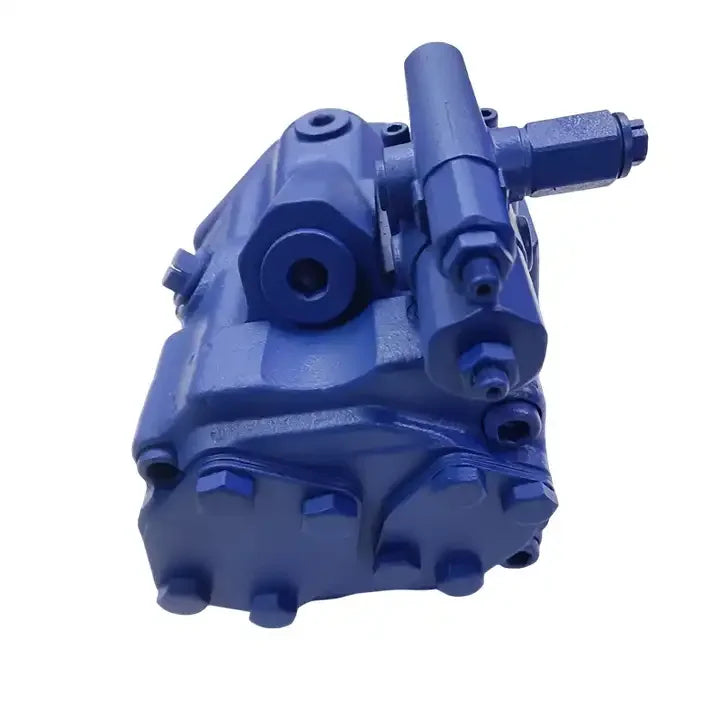

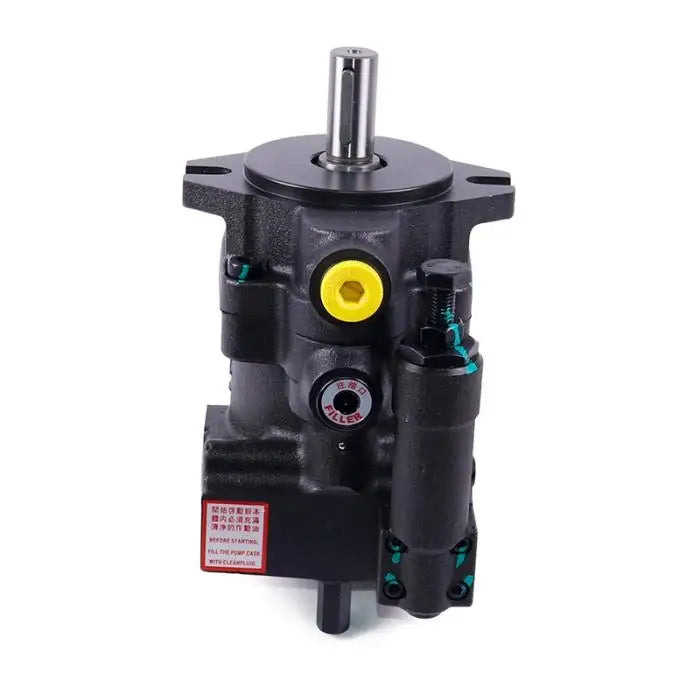

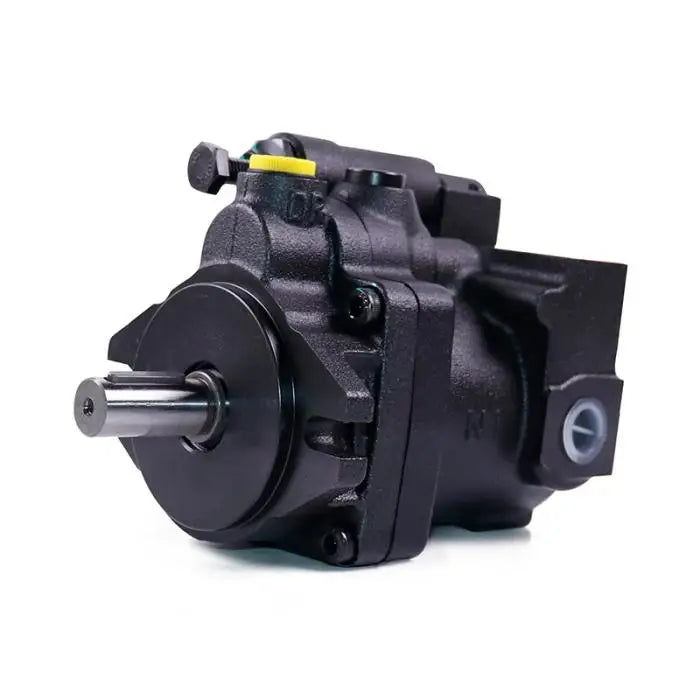

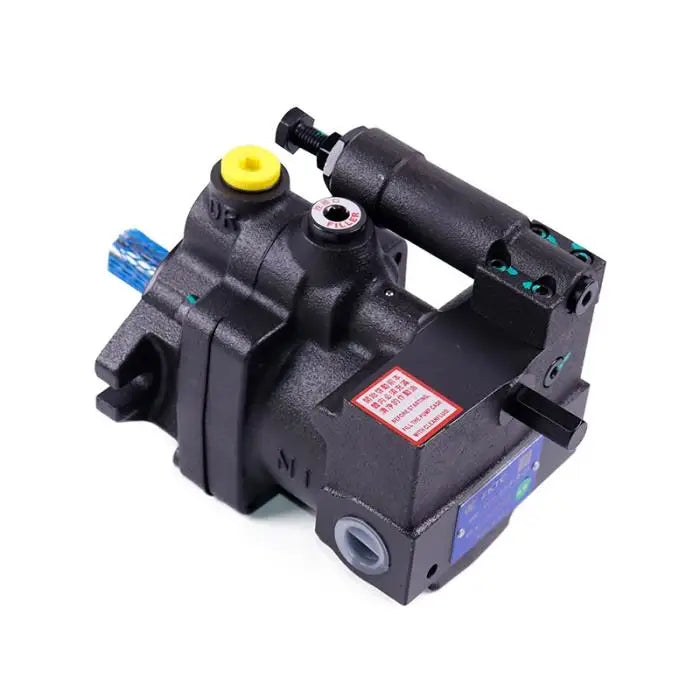

Variable Displacement Axial Piston Pumps

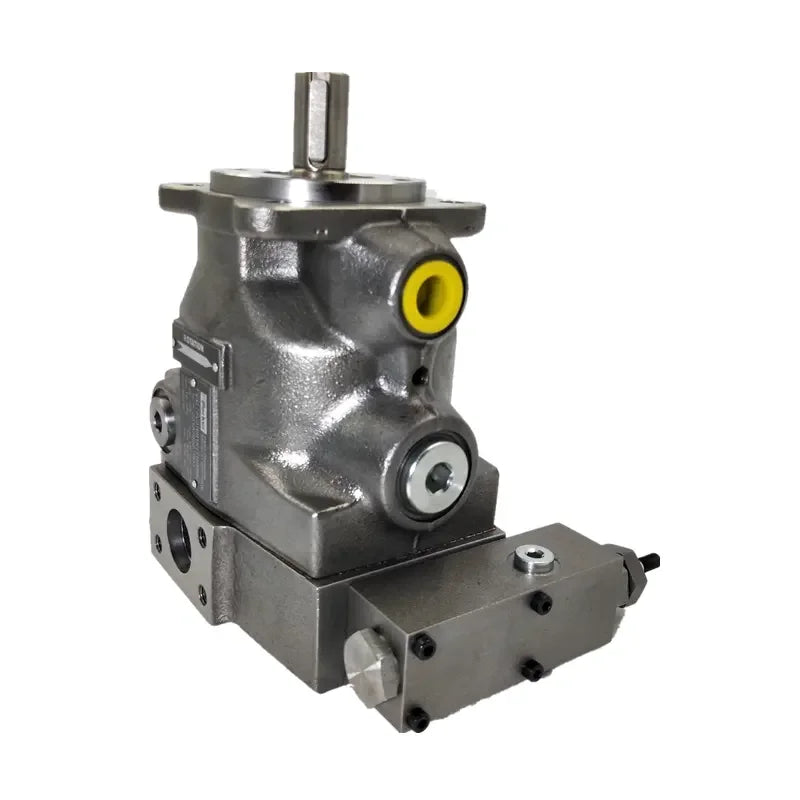

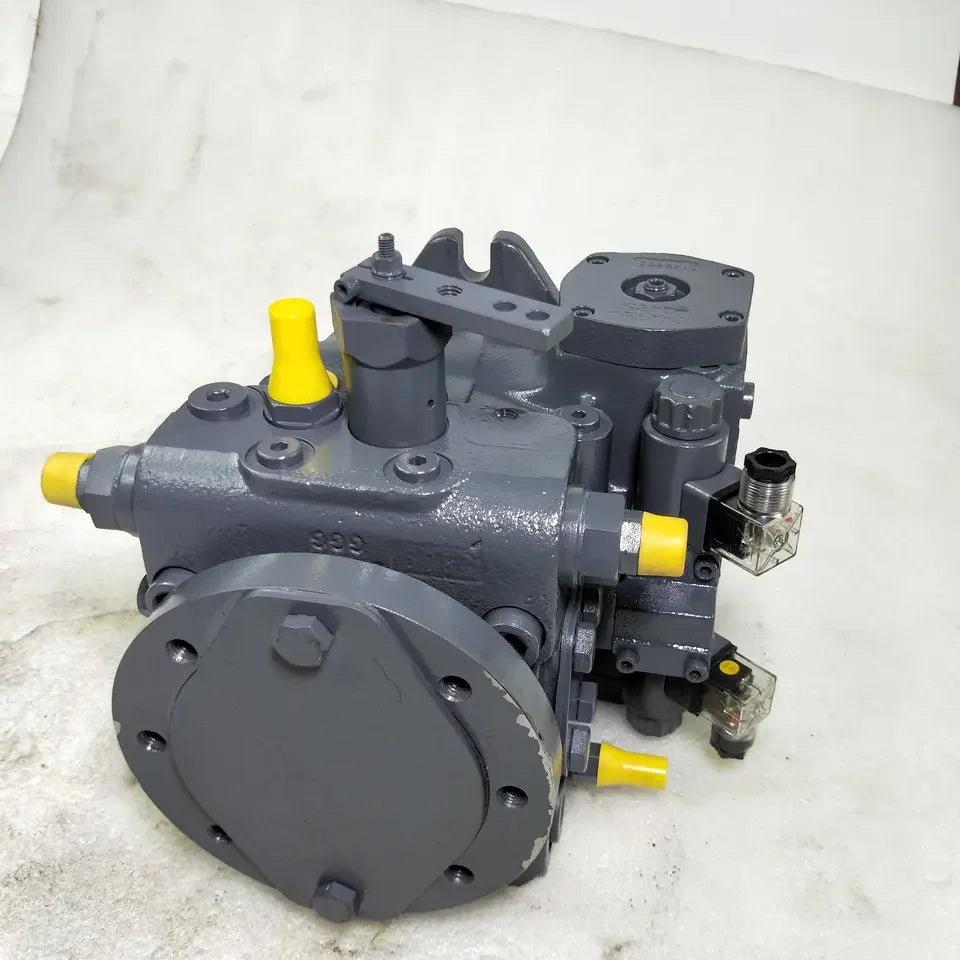

Variable displacement axial piston pumps adjust their output to match demand. A built-in control moves the swash plate or yoke to hold pressure, flow or power at the setting you choose. If your machine idles or holds a load for long periods, this is where the real energy savings sit.

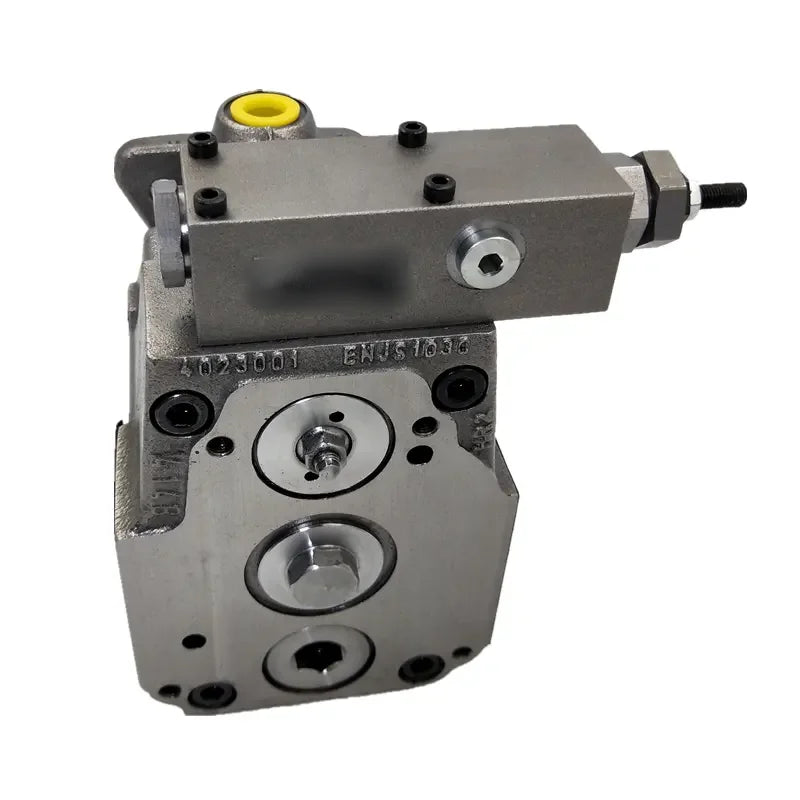

Pick the Right Control

The control is the part most buyers forget, and it changes how the whole machine behaves. Check the code on your old pump for one of these:

• Pressure compensator: holds a set maximum pressure and cuts flow back once it is reached. Simple, and common on industrial power units.
• Load sensing: reads the pressure the load needs and adds a small margin. It suits mobile machines with several functions.
• Power or torque limiter: stops the pump asking more of the motor or engine than it can give.
• Electro-proportional control: lets a controller set flow or pressure with an electrical signal, for smooth, programmable motion.
• Remote pressure control: lets you adjust the pressure setting from a valve mounted away from the pump.

Getting the control wrong is the most common reason a "matching" pump behaves differently. We confirm it on every order.

Open Circuit or Closed Circuit?

Open circuit pumps draw oil from the tank and send it to the valves. This covers most industrial power units and the main pumps on excavators.

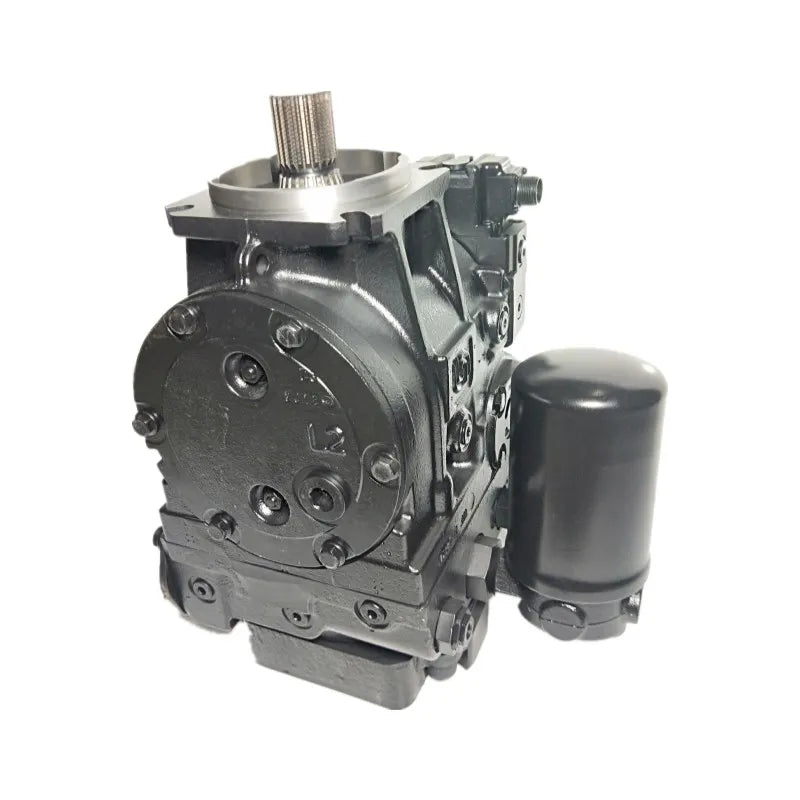

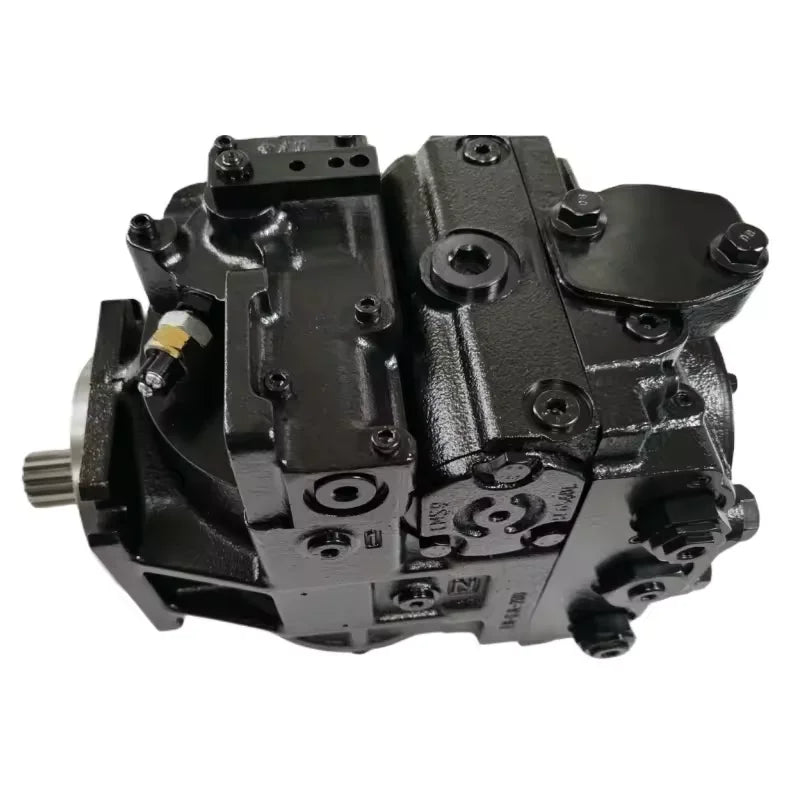

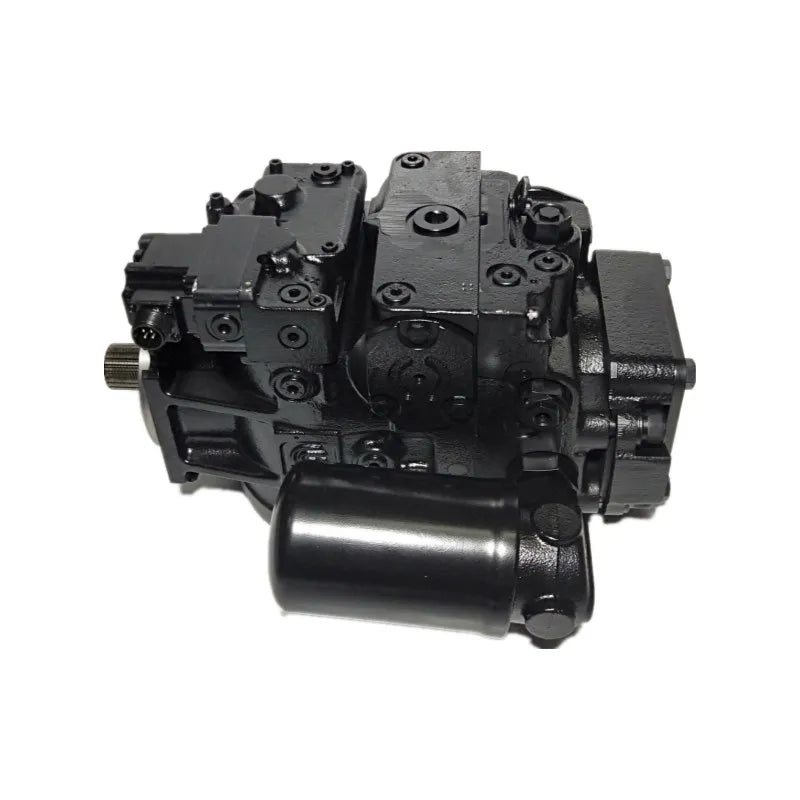

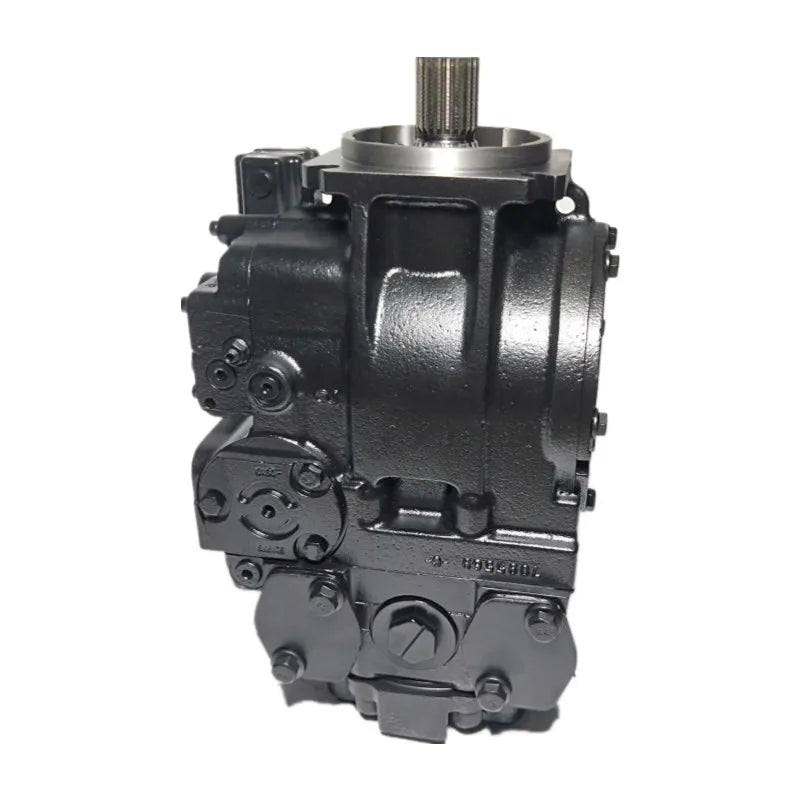

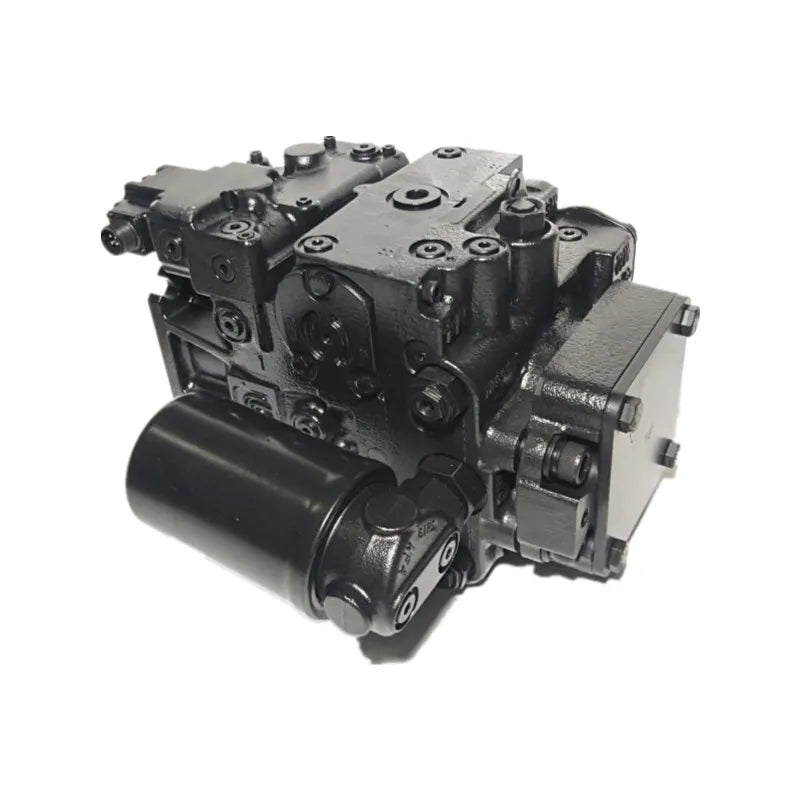

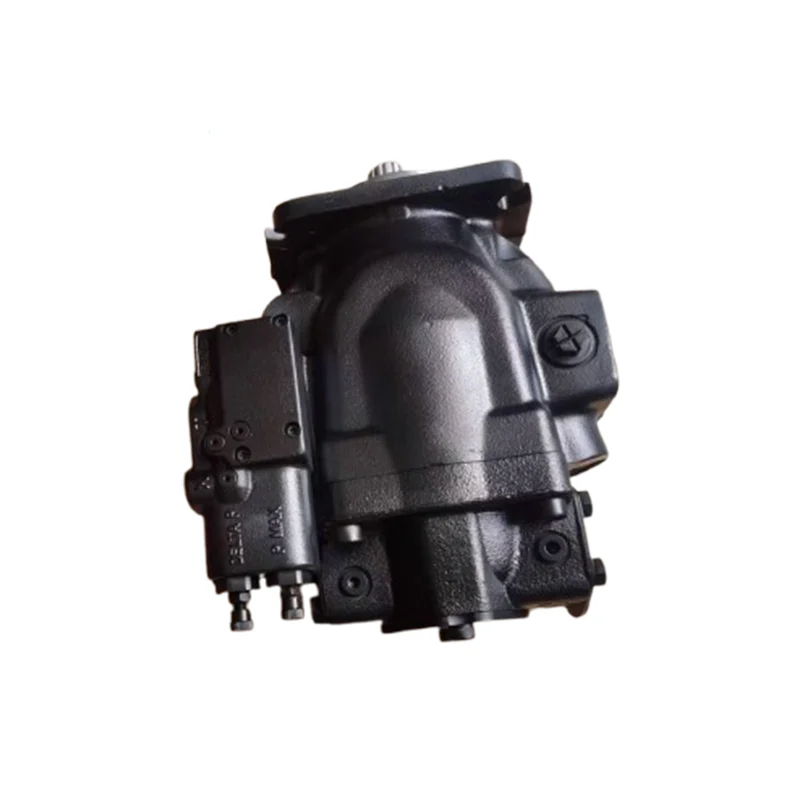

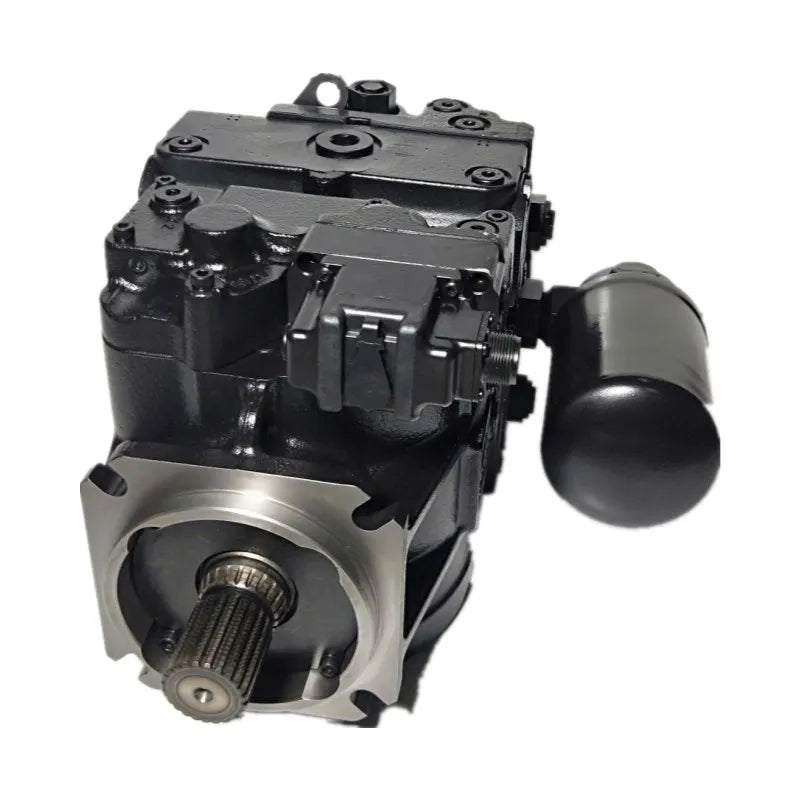

Closed-circuit pumps send oil straight to a motor and take it back again in a loop. You see them in hydrostatic drives for wheel drives, winches and slewing. They usually carry a built-in charge pump, and the swash plate can move past centre to reverse the flow. An open circuit pump cannot replace a closed-circuit one, even if the size and flange match.

Piston Pumps Specifications to Check

Before you order, confirm these figures against the datasheet:

• Displacement: from under 10 cc/rev on small units to over 500 cc/rev on large ones.
• Pressure: about 250 to 350 bar continuous for most swash plate pumps, and higher for bent axis and radial designs.
• Speed: maximum rpm drops as size goes up, so check it against your motor or engine.
• Oil viscosity: most makers want around 16 to 36 cSt at running temperature for best life.
• Cleanliness: aim for ISO 4406 18/16/13 or cleaner.

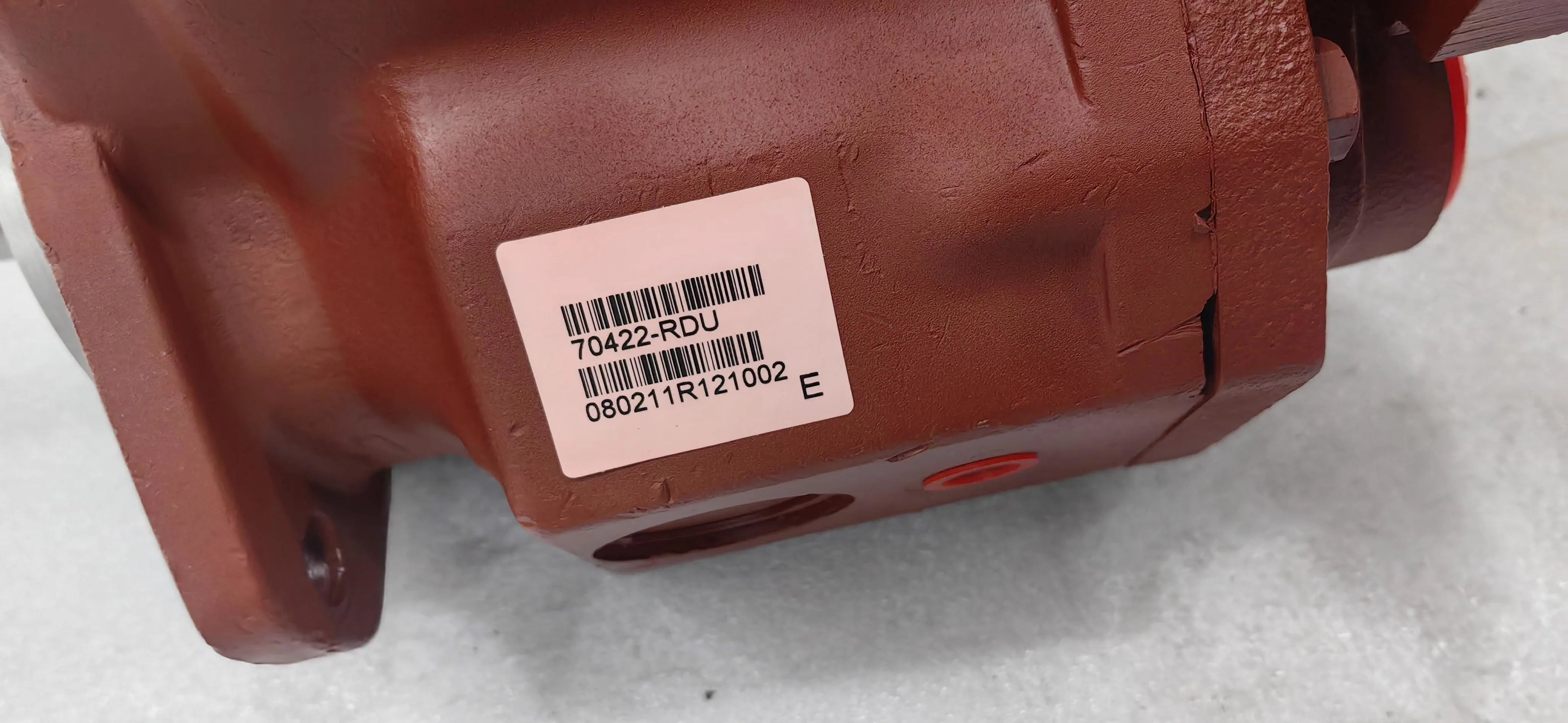

How to Read a Piston Pump Part Number

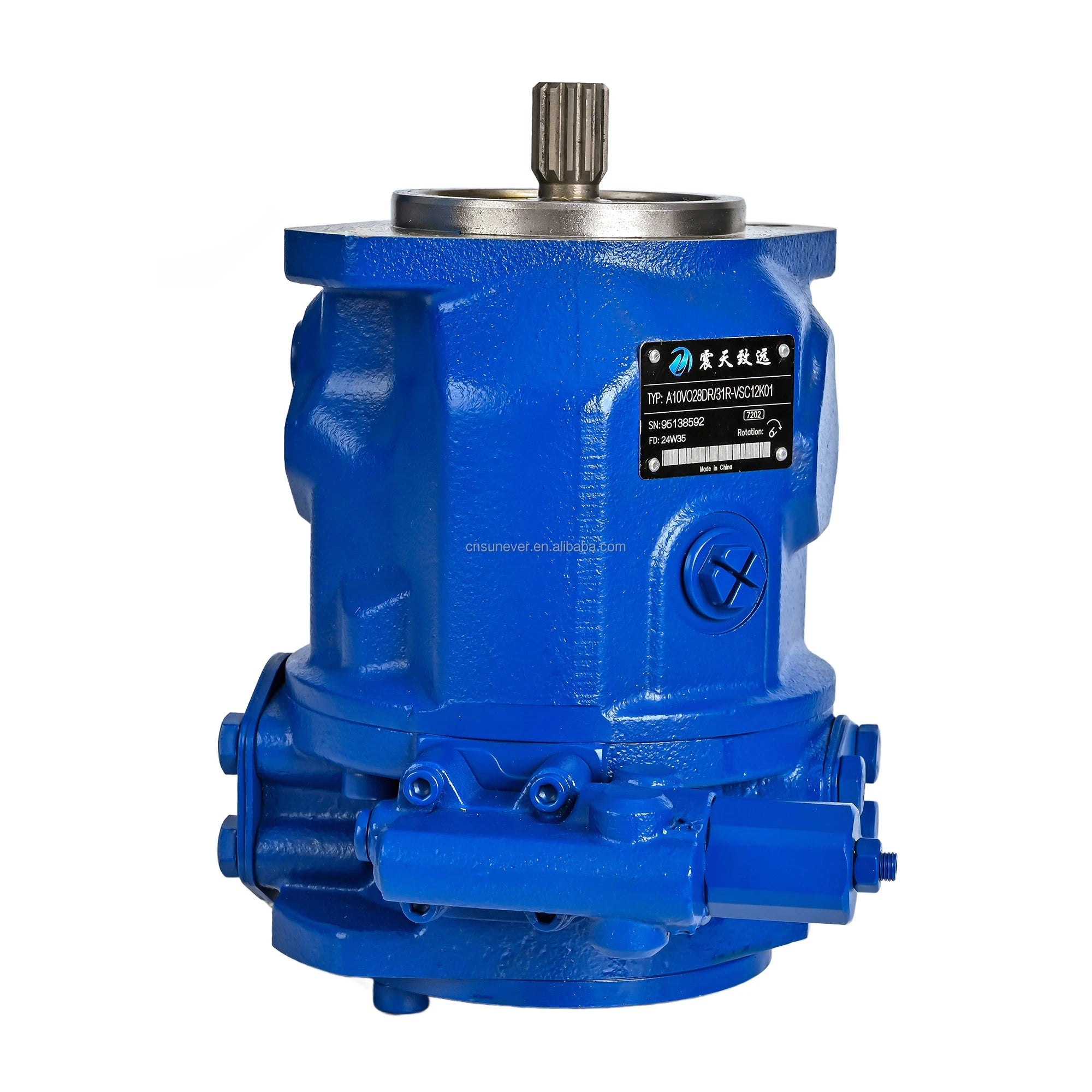

The nameplate code holds almost everything we need. Take a common example such as A10VSO 71 DFR1/31R.

• A10VSO tells us the series: a swash plate pump for open circuits.
• 71 is the displacement in cc/rev.
• DFR1 is the control: pressure and flow.
• 31 is the design series.
• R is the rotation: clockwise, viewed from the shaft end.

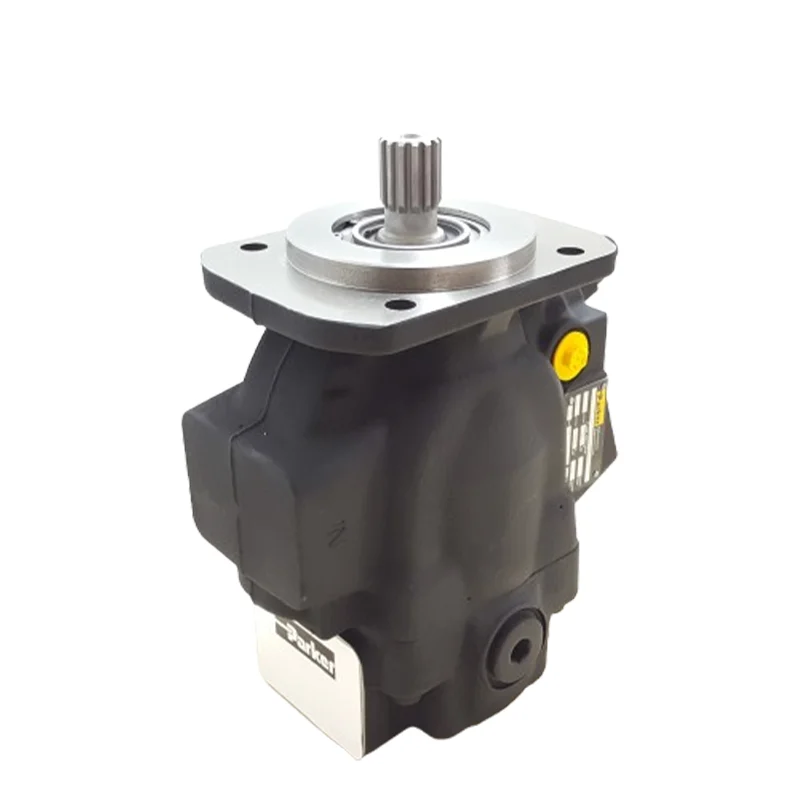

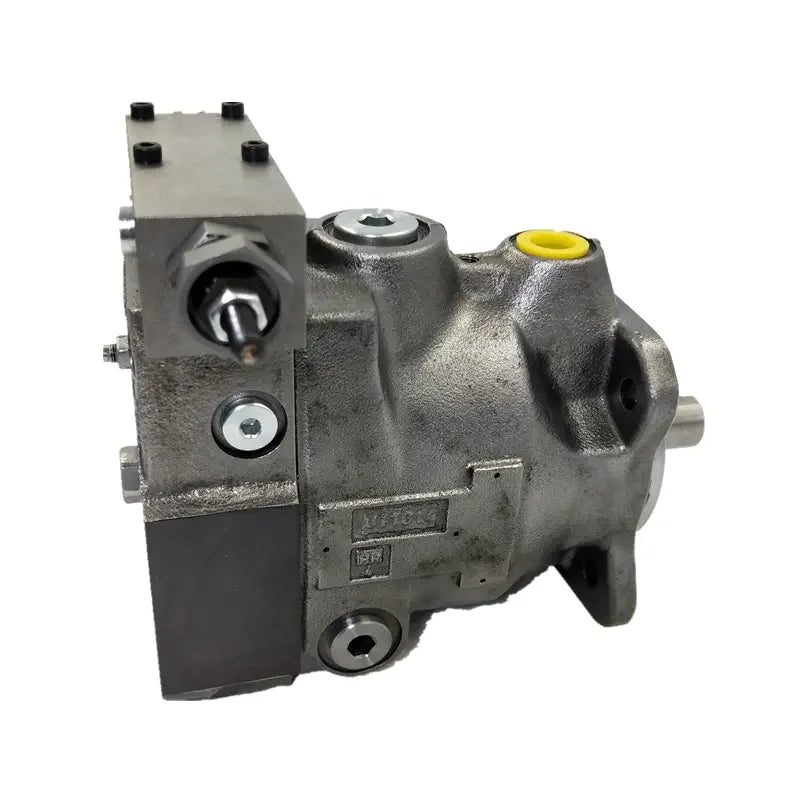

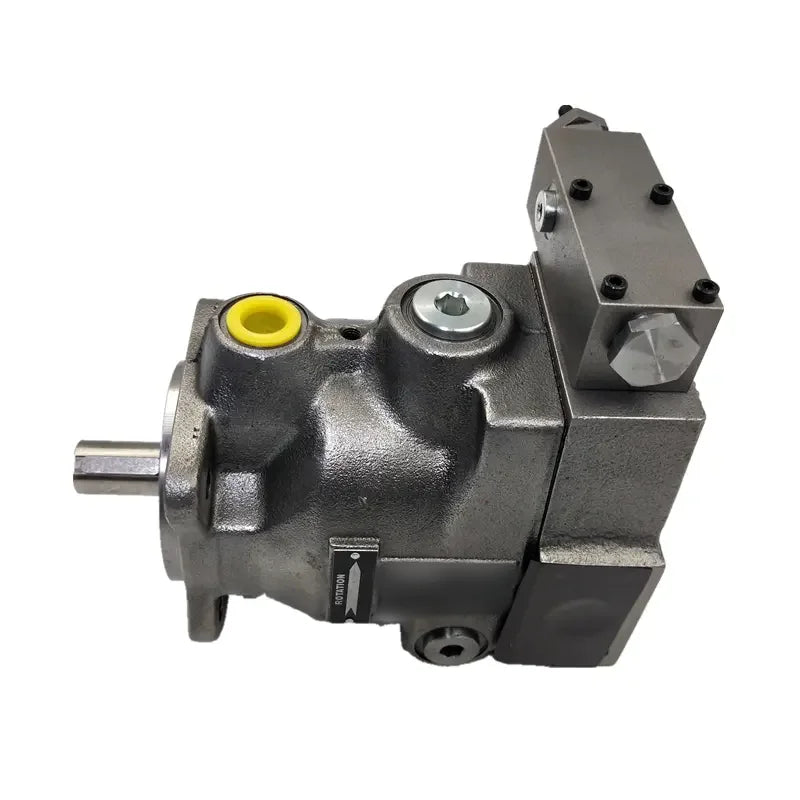

Other makers follow similar logic. In a code like Kawasaki K3V112DT, the 112 is the displacement and DT marks a tandem pump. Parker PV series codes list frame size, displacement and control in the same way. Send us a clear photo of the plate and we will decode it for you.

Installation Tips That Protect a New Pump

Most early piston pump failures come down to the first hour of running. Follow these steps:

1. Fill the pump case with clean oil through the highest drain port before the first start.
2. Run the case drain line straight to the tank, below the oil level, with no filter or back pressure in the way.
3. Bleed air from the suction line and check that every fitting is tight.
4. Start at low pressure and let the pump run for a few minutes before loading it.
5. Fit new filters, as fine wear debris from the old pump will still be in the system.

Over time, measure case drain flow on a schedule. A steady rise above the maker's figure means internal wear, and it gives you time to plan a replacement before a breakdown.

Where Our Piston Pumps Work

Our piston pumps drive excavators and loaders on mining sites, presses and forming lines, plastics machinery, marine cranes and the power units behind them. Not sure which type suits your duty? Our pump selection and sizing team will check the numbers with you.

Why Buy Piston Pumps From TSA Hydraulics Engineering

We are a piston pump supplier that speaks your machine's language. Our engineers decode part numbers, match controls and confirm the circuit type, so the pump you receive works the way the old one did. You get genuine or equivalent options, and help sourcing piston pumps replacement parts such as seal kits and shaft seals.
