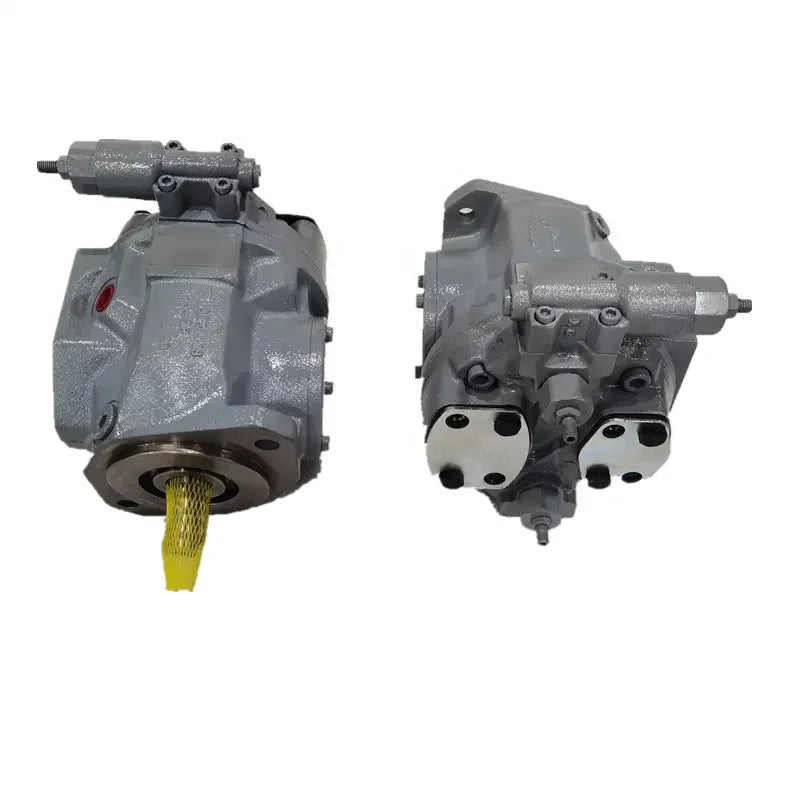

Variable Displacement Axial Piston Pumps

What Makes a Pump Variable?

Inside every axial piston pump, the angle of the swash plate sets how far each piston travels. In a fixed pump, that angle never changes. In a variable pump, a small control piston can tilt the plate while the pump runs.

Tilt it fully and the pump gives maximum flow. Bring it back towards flat and the flow drops, all the way down to almost zero. A spring holds the plate at full stroke, and a control valve on the pump decides when to pull it back. That control valve is what turns the same pump into a pressure holder, a load sensing pump or a power limiter.

Control Options and When to Use Them

Pressure Compensated Control

The pump gives full flow until the system reaches your set pressure, then cuts flow back to hold it. This is the most common control on industrial power units, clamping circuits and machine tools.

Load Sensing Control

The pump reads the pressure the load needs through a signal line and adds a small margin, often 15 to 30 bar. Flow follows the operator's lever. This suits mobile machines and any circuit running several functions at once.

Power or Torque Limiting Control

The pump trades flow for pressure, so it never asks more of the motor or engine than it can give. You get fast moves at low pressure and full force at low speed, without stalling the drive.

Electro-Proportional Control

A controller sets flow or pressure with an electrical signal. This gives smooth, programmable motion for injection moulding, presses and test rigs.

Combined Controls

Many pumps mix these functions. On Rexroth A10VSO pumps, for example, DR means pressure control, DFR adds flow control, and DFLR adds power control too. Parker PV pumps use their own codes for the same ideas. Always match the full control code, not just the pump size.

How Much Energy Can You Save?

Here is a simple example. A fixed pump making 100 L/min at 200 bar while the machine holds pressure, pushes all that flow over the relief valve. That turns about 33 kW straight into heat.

A pressure-compensated variable pump holding the same 200 bar only makes enough flow to cover leakage. That often means a few kilowatts instead of 33. On a machine that spends half its day holding pressure, the savings in power, cooling and oil life add up fast. Less heat also means a smaller cooler and longer seal life.

If you run older machines with fixed pumps, our energy efficiency and servo retrofits team can check whether a switch to variable makes sense.

Setting Up a New Variable Pump

The control settings matter as much as the pump itself. Follow these steps when you fit one:

1. Fill the pump case with clean oil before the first start.
2. Back the compensator off to a low setting and start the pump.
3. Bleed air from the system and let the oil warm up.
4. Raise the compensator to your working pressure. Keep it 15 to 20 bar below the relief valve setting, so the relief valve never opens in normal running.
5. On load sensing pumps, set the margin to the figure in the machine's data, usually between 15 and 30 bar.
6. Lock the adjusters and record the settings for next time.

Troubleshooting Variable Displacement Axial Piston Pumps

Most problems on variable pumps start in the control, not the rotating group. Check these first:

• Pump will not build pressure: the compensator may be set too low, or the control spool may be stuck open.
• Pressure hunts or the pump sounds unsteady: look for air in the oil, a damaged signal line or a blocked damping orifice.
• Pump stays at full flow: a stuck control spool or a blocked control passage stops it from pulling back.
• Slow response: varnish or dirt on the control spool makes it lag.
• Oil runs hot: the compensator may be set above the relief valve, so oil dumps over the relief all day.

Clean oil prevents most control faults. Keep fresh filters in the system and test the oil regularly.

Where These Pumps Work

You will find variable displacement axial piston pumps in injection moulding and plastics machines, presses, steel mills and test benches. Mobile users include cranes, drill rigs, farm machines and excavators, many of which run Kawasaki main pumps. In factories, most run on hydraulic power units that hold pressure for long periods.

Variable Axial or Something Else?

Variable axial pumps are not the only choice. If your machine works at steady flow and you want maximum efficiency at high speed, bent axis piston pumps may suit you better. If you want the widest range of controls in a compact body, look at swash plate piston pumps. For lower pressure circuits under about 160 bar, variable displacement vane pumps can do the job quietly and for less. Need help choosing? Our pump selection and sizing service checks the numbers with you.
