Axial Piston Pumps: Swash Plate, Bent Axis and Variable Designs

How an Axial Piston Pump Works

Picture a ring of pistons sitting in a spinning cylinder block. As the block turns, each piston moves in and out once per revolution. Here is what happens in one turn:

1. The shaft turns the cylinder block and its pistons.
2. On one half of the turn, each piston slides outward and draws oil in through the valve plate.
3. On the other half, the piston is pushed back in and forces that oil out at pressure.
4. The angle between the pistons and the shaft sets how far each piston travels, and that sets the flow.

Most designs use an odd number of pistons, often seven or nine. This overlaps the pumping strokes and keeps the flow smooth, with less pressure ripple and noise.

Choose Your Axial Design

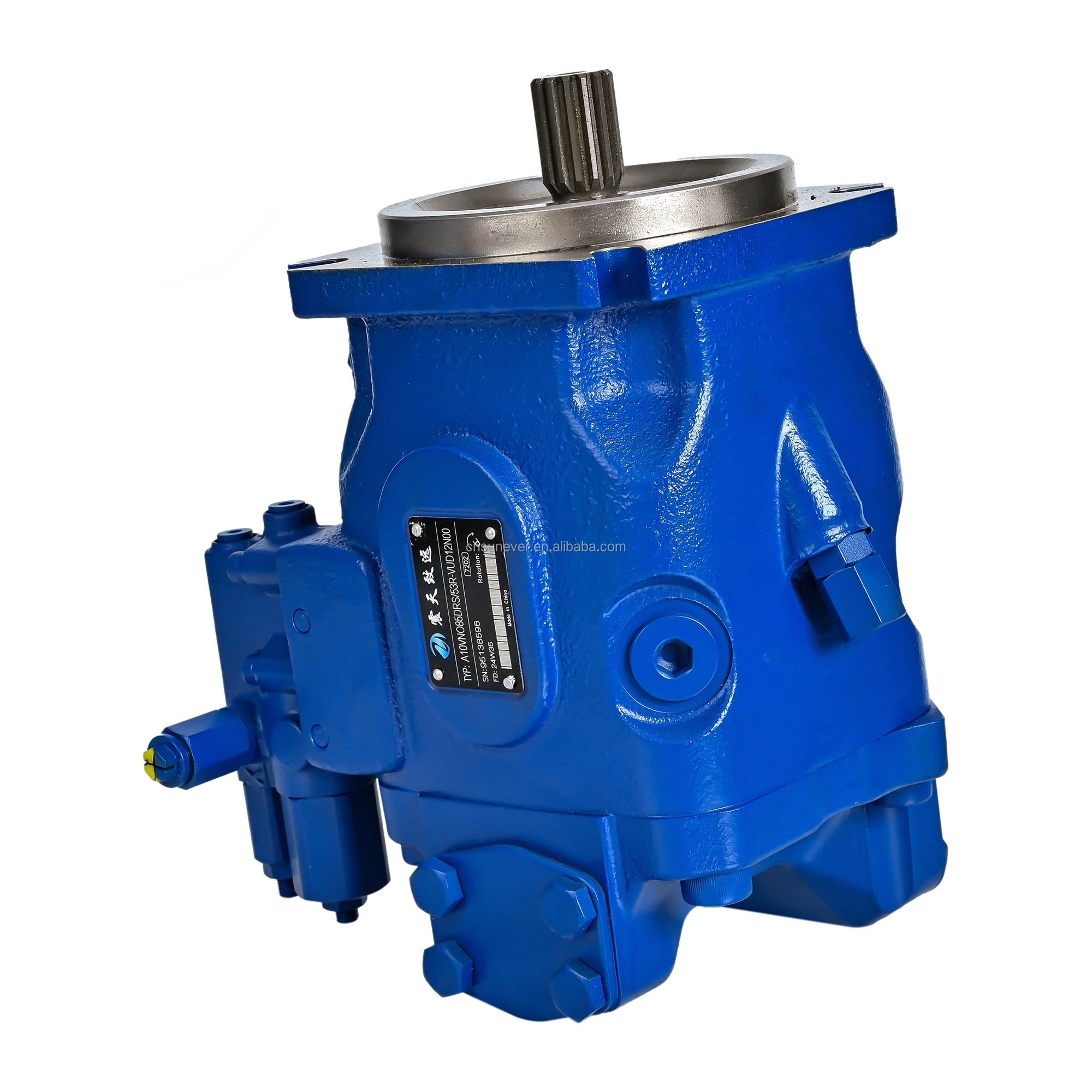

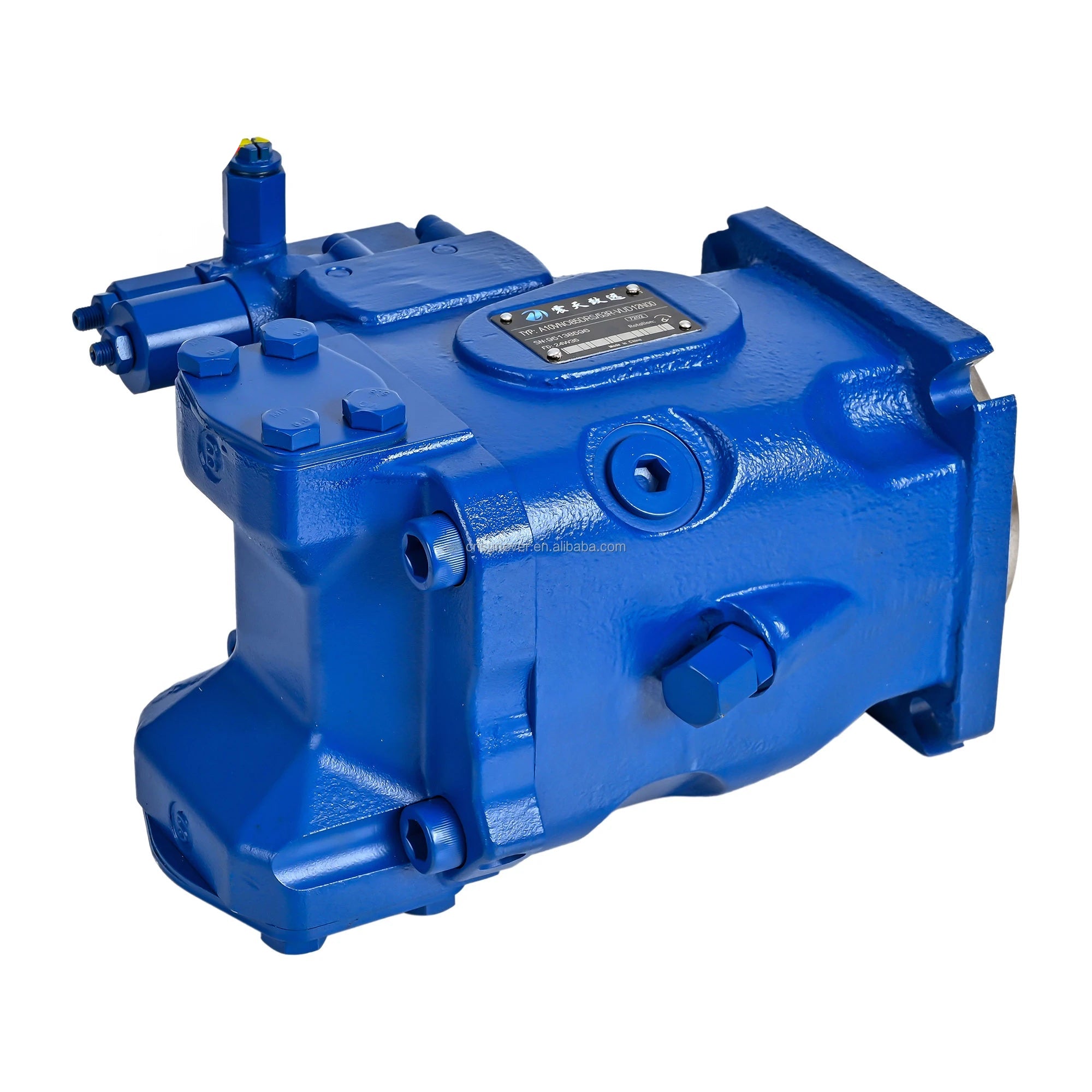

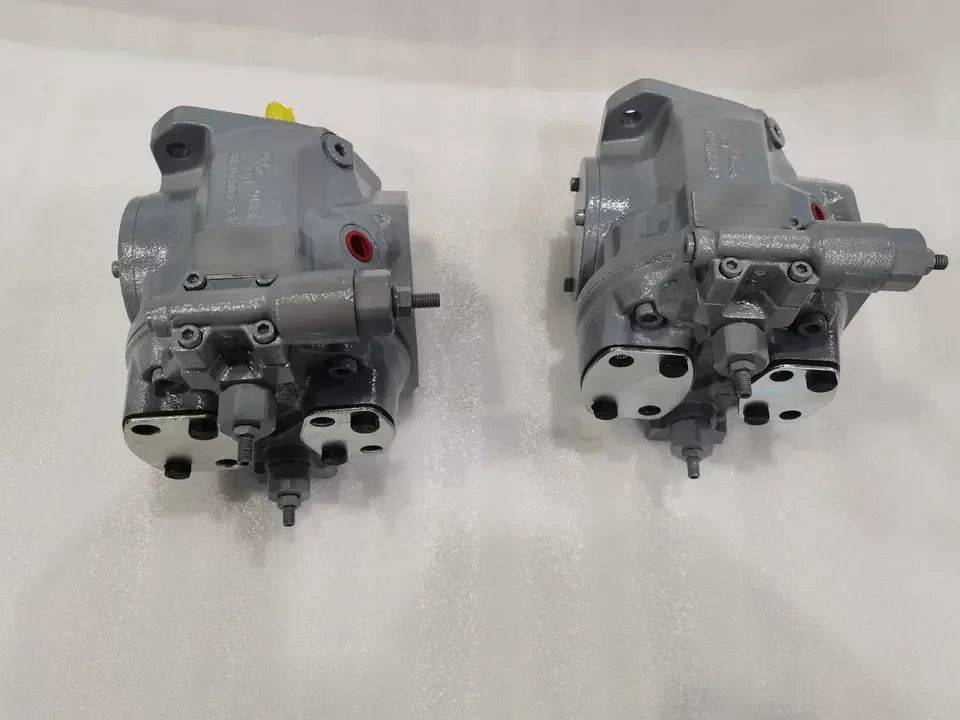

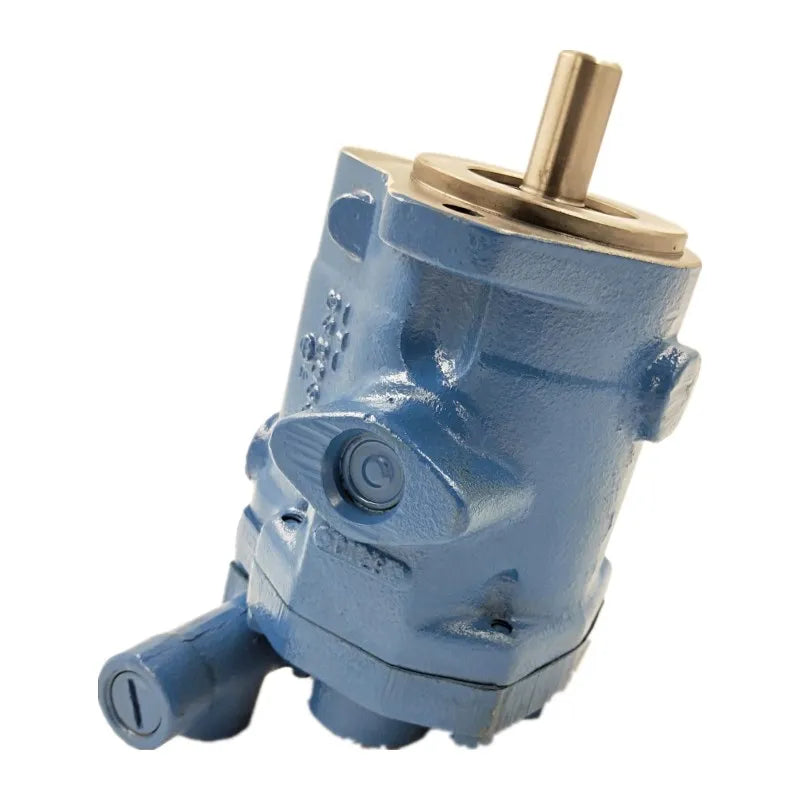

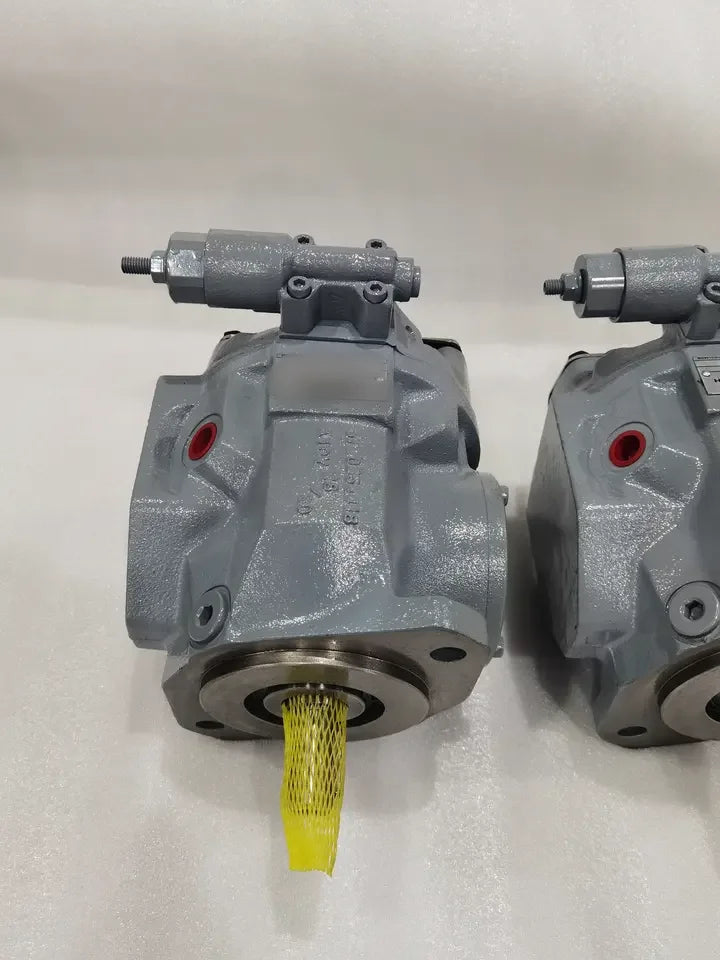

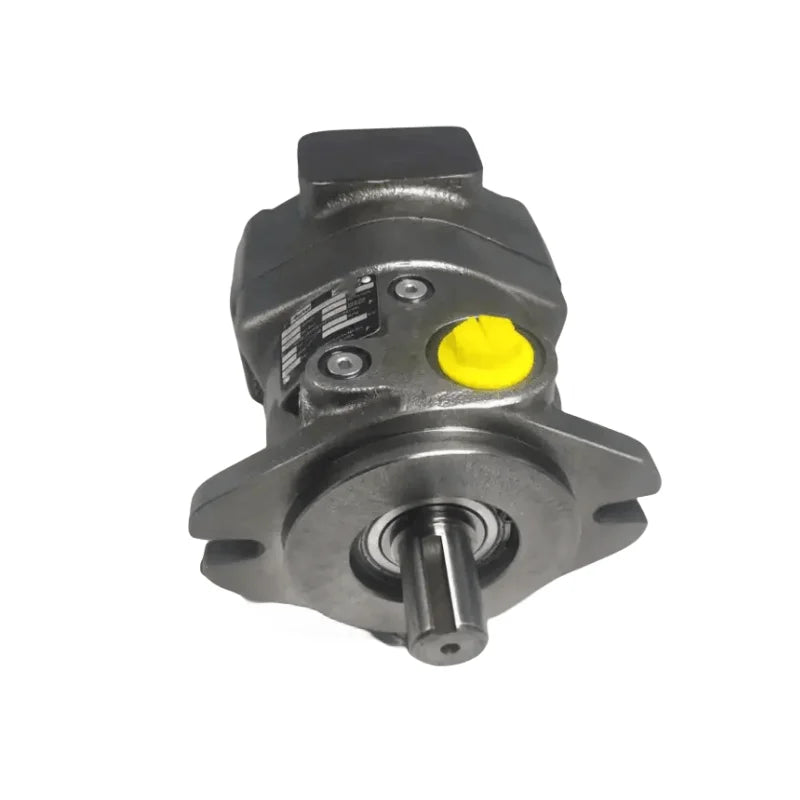

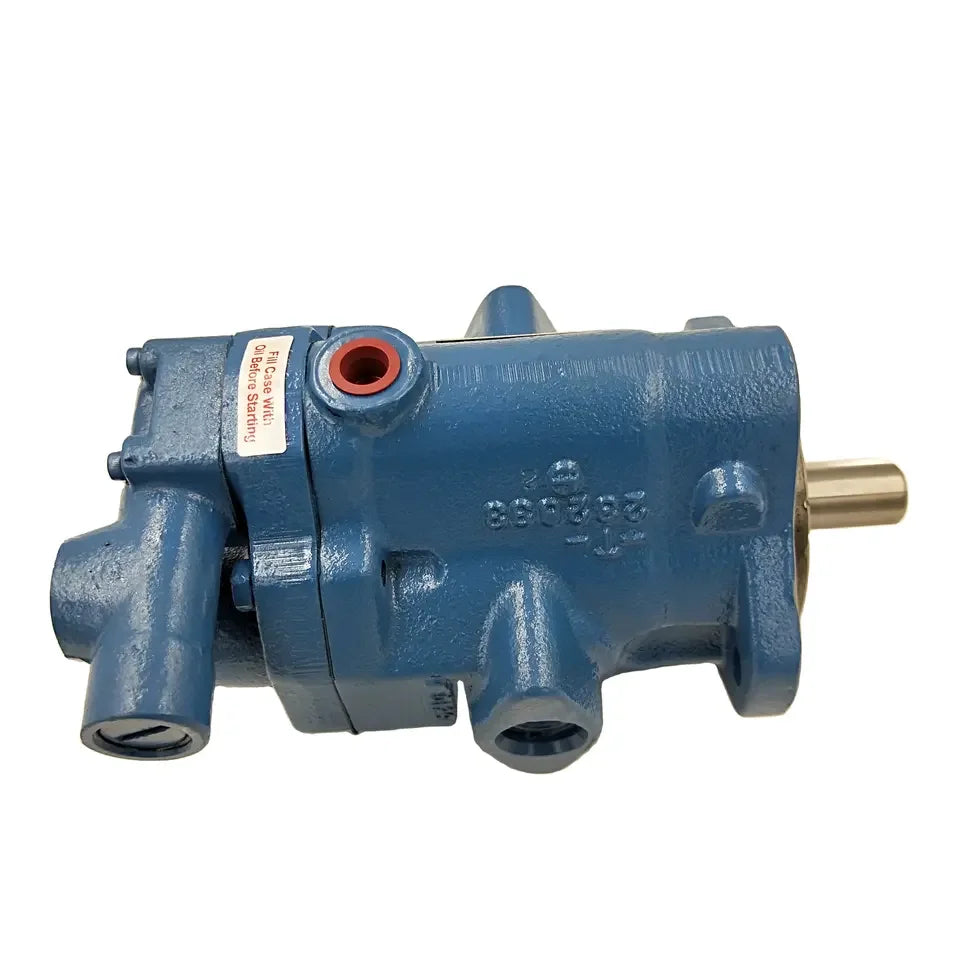

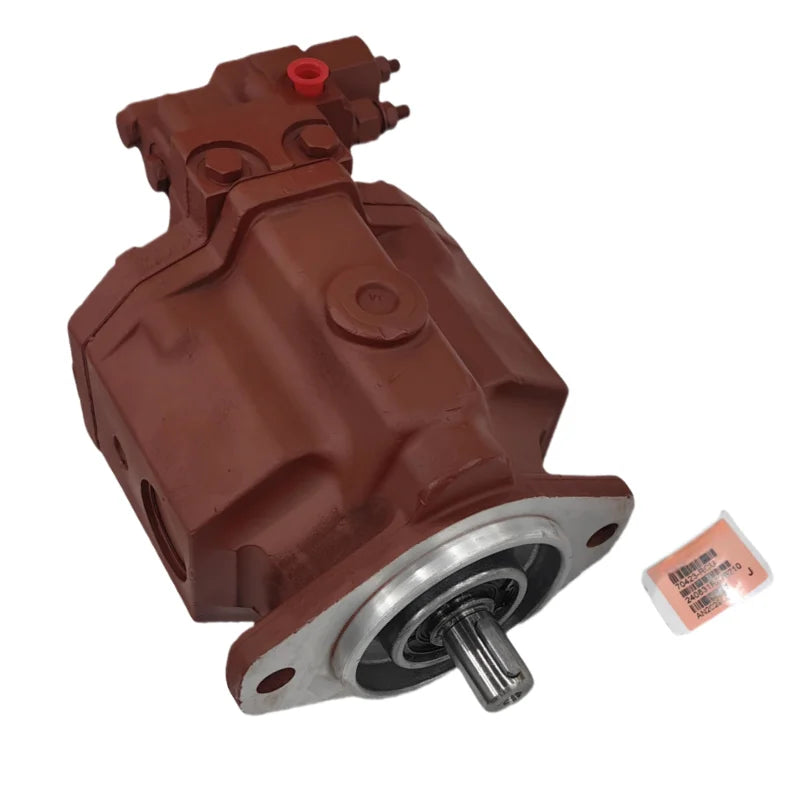

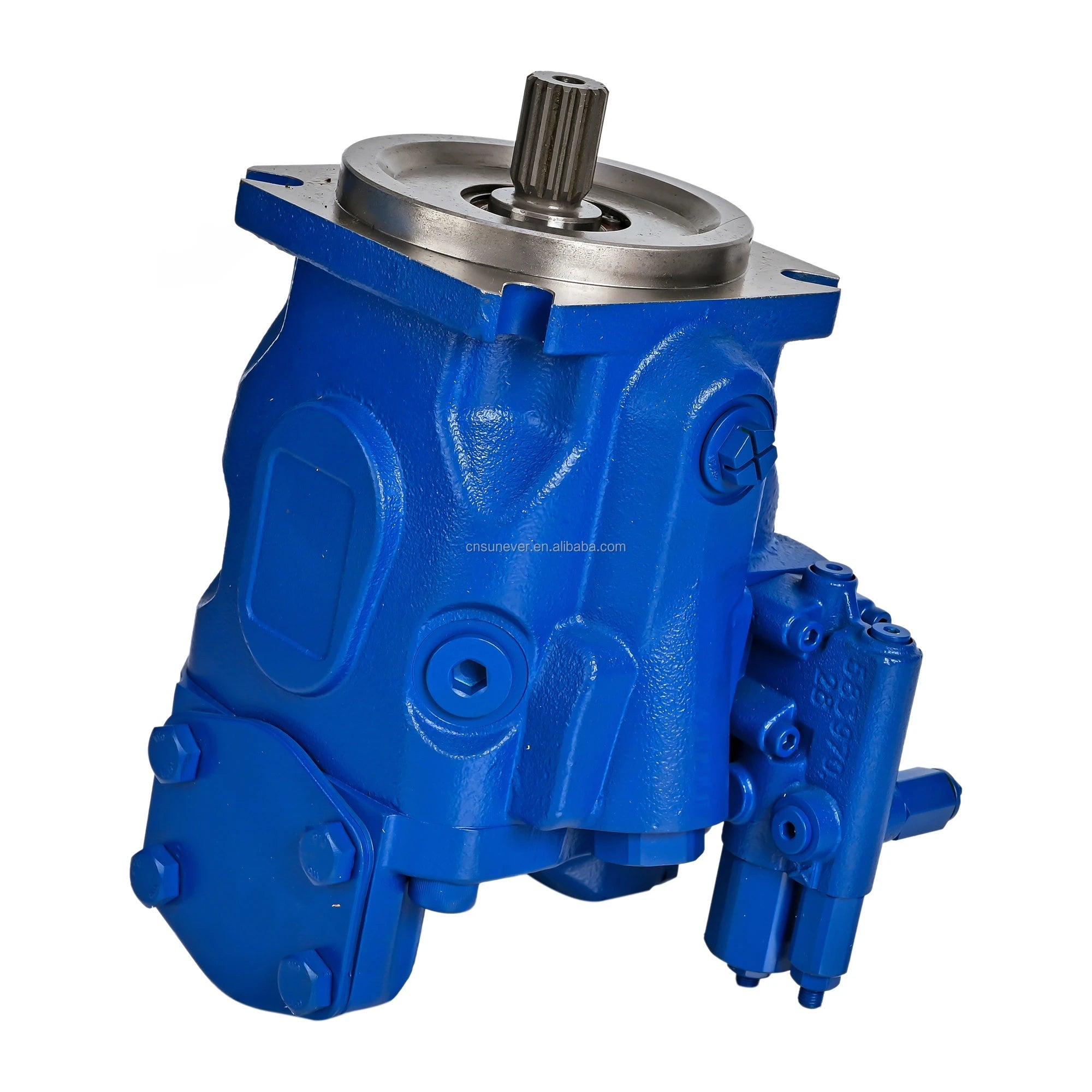

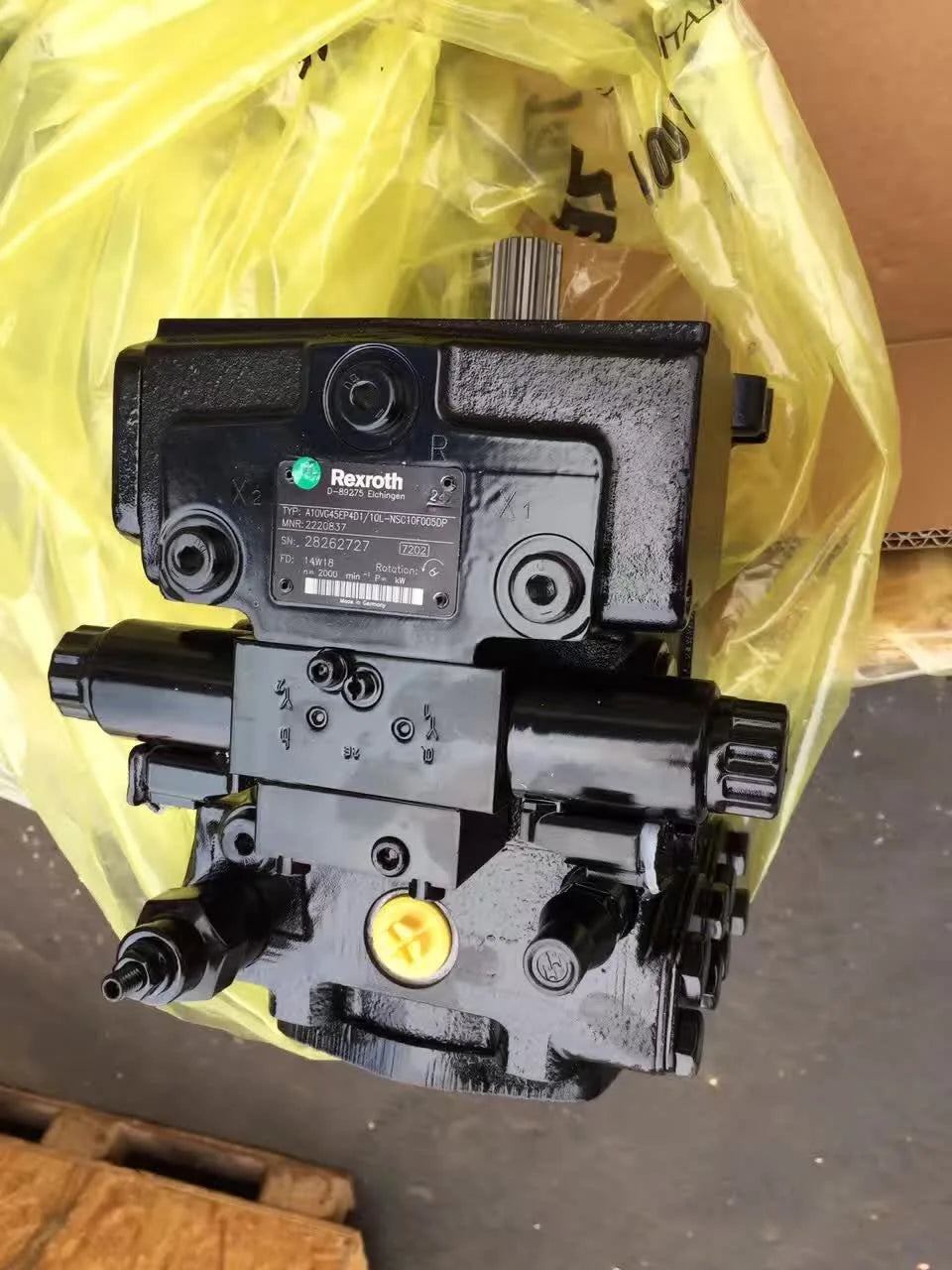

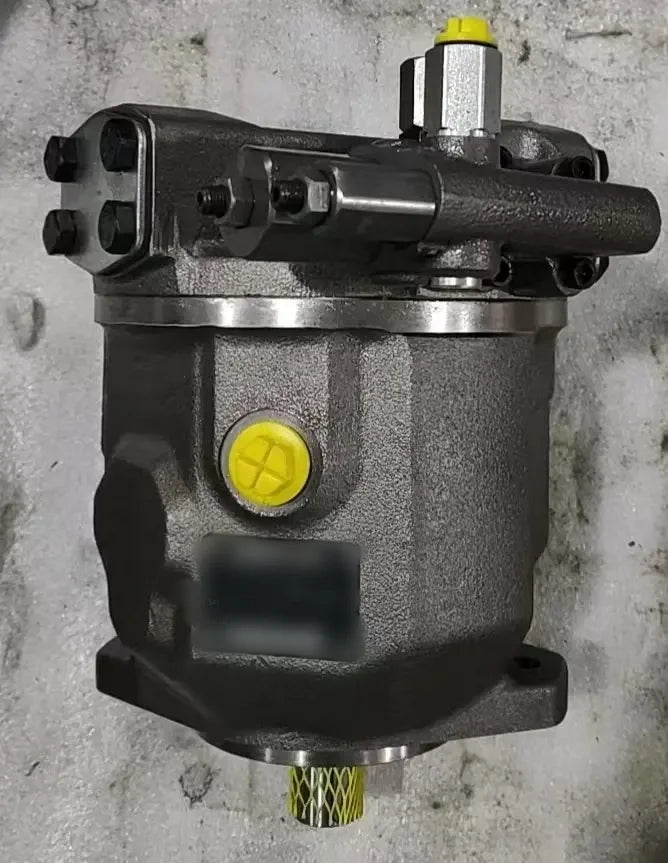

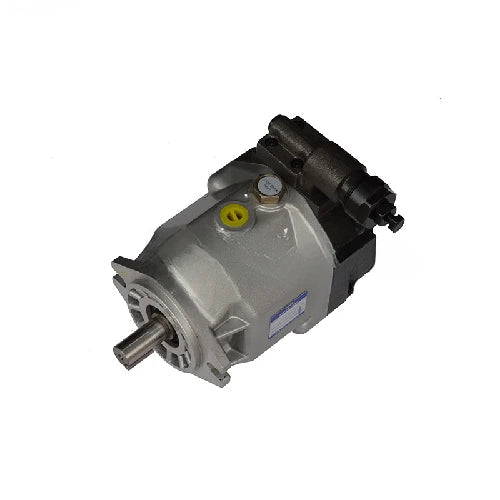

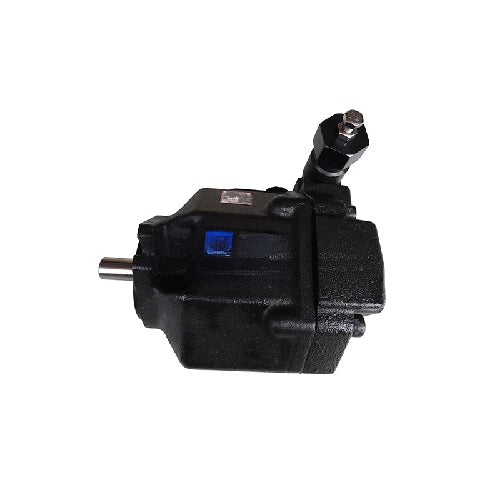

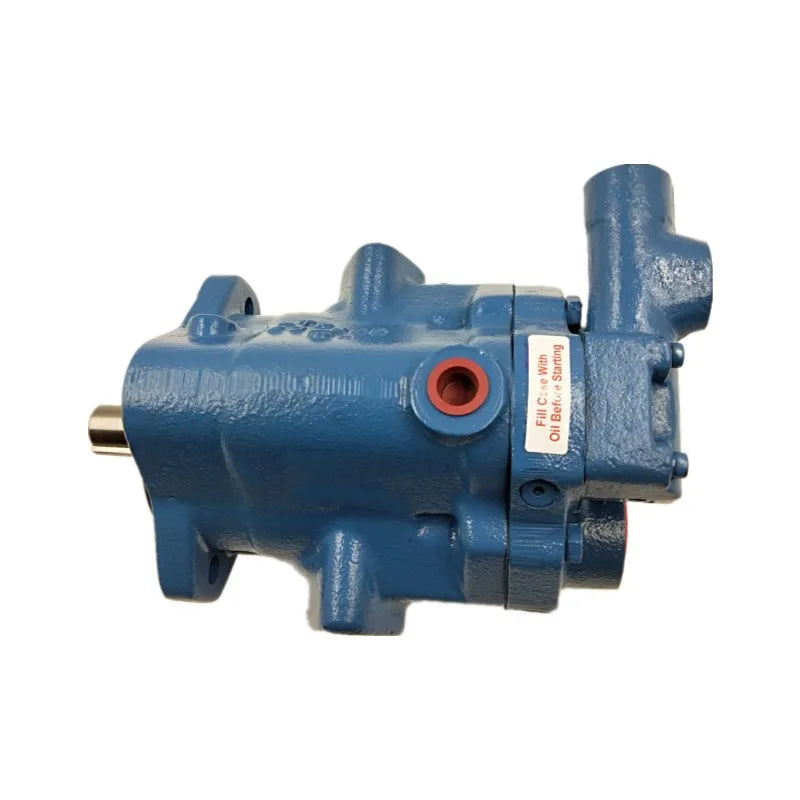

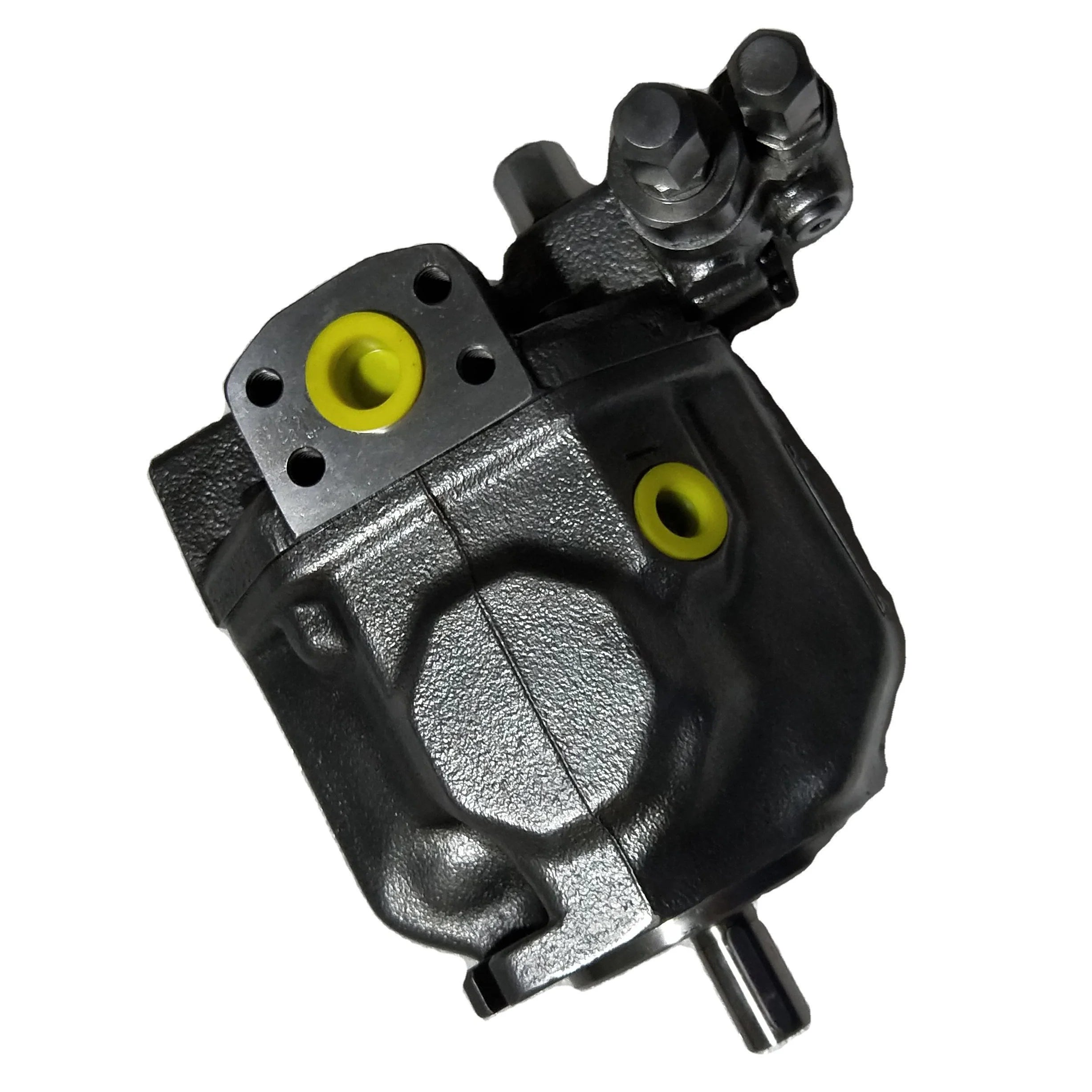

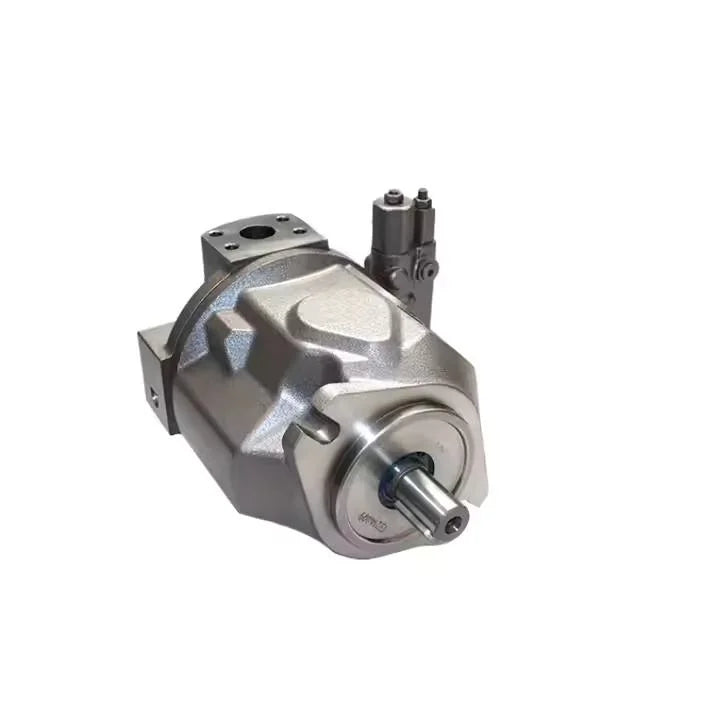

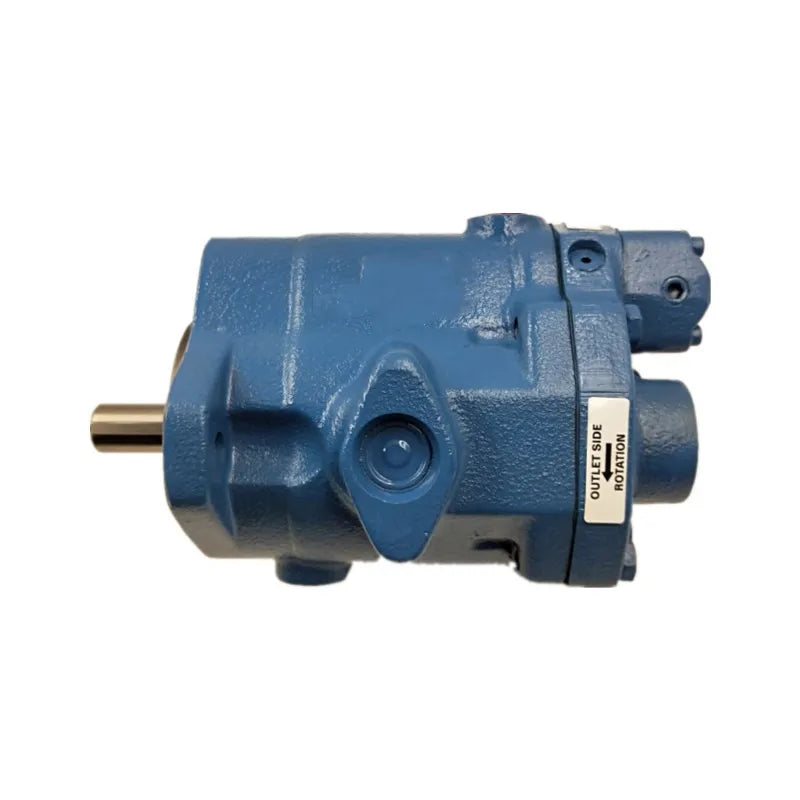

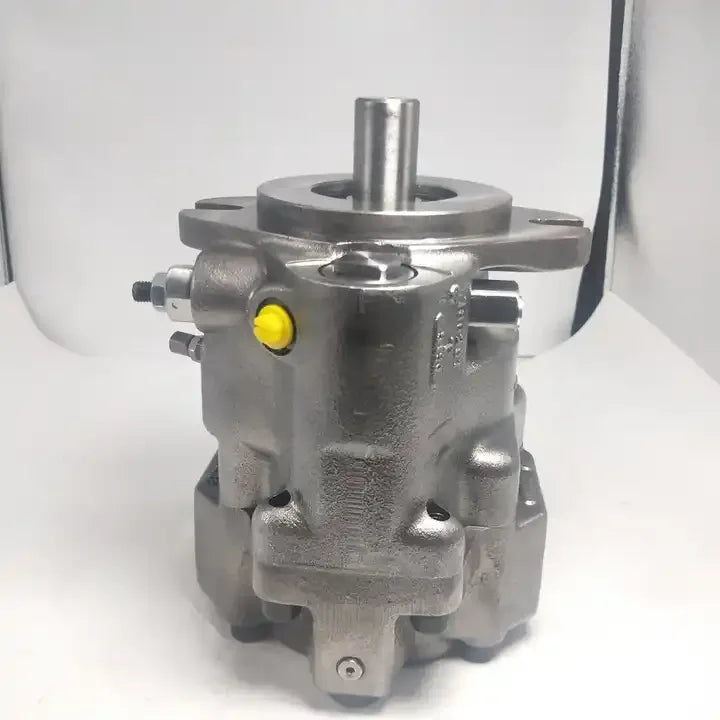

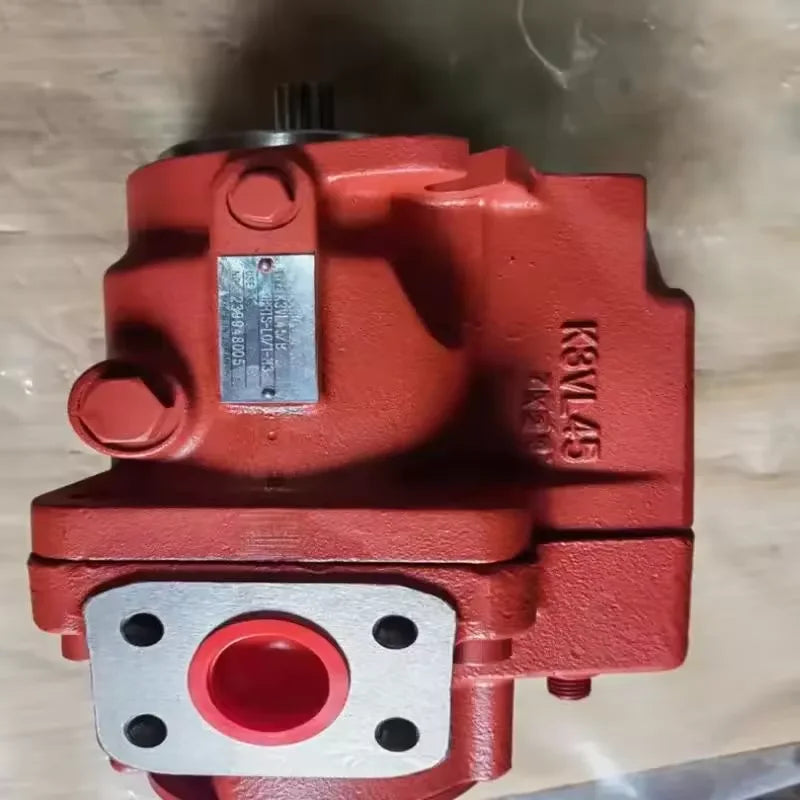

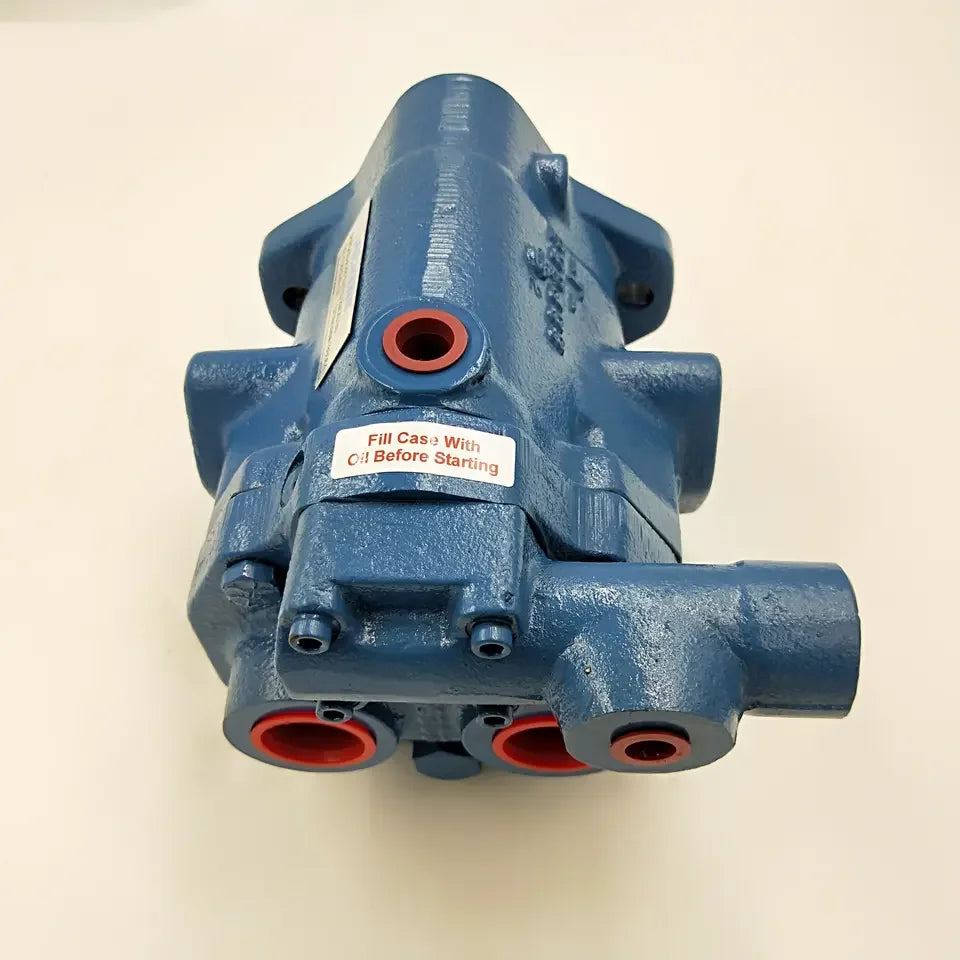

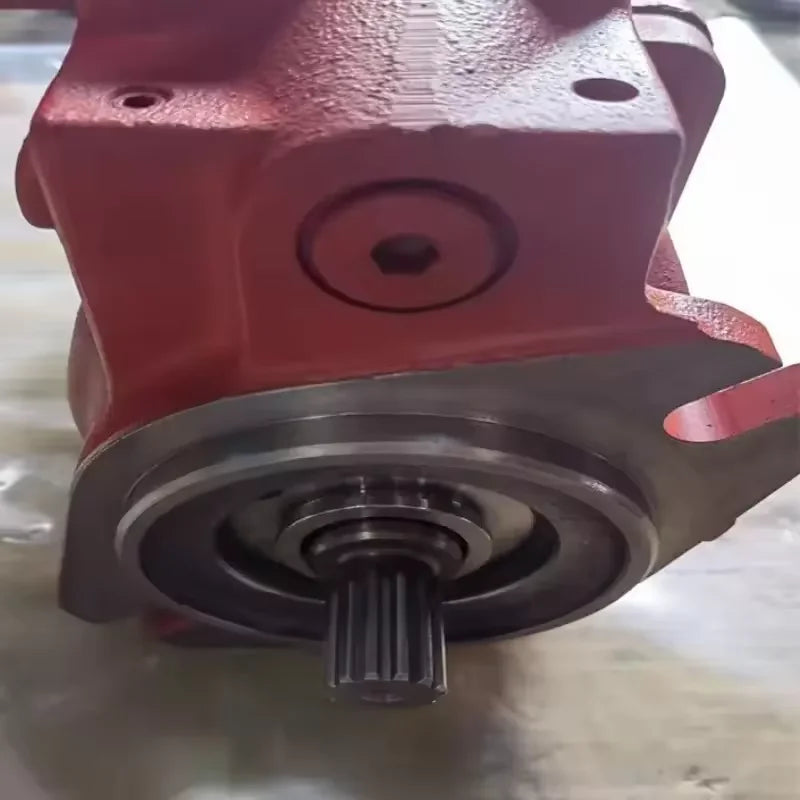

Swash Plate Piston Pumps

Swash plate piston pumps keep the shaft and cylinder block in one straight line, with the pistons riding on an angled plate. They are short, light and easy to fit with controls. Many also have a through drive, so you can stack a second pump on the back to run another circuit. That makes them the go-to choice for excavator main pumps and industrial power units.

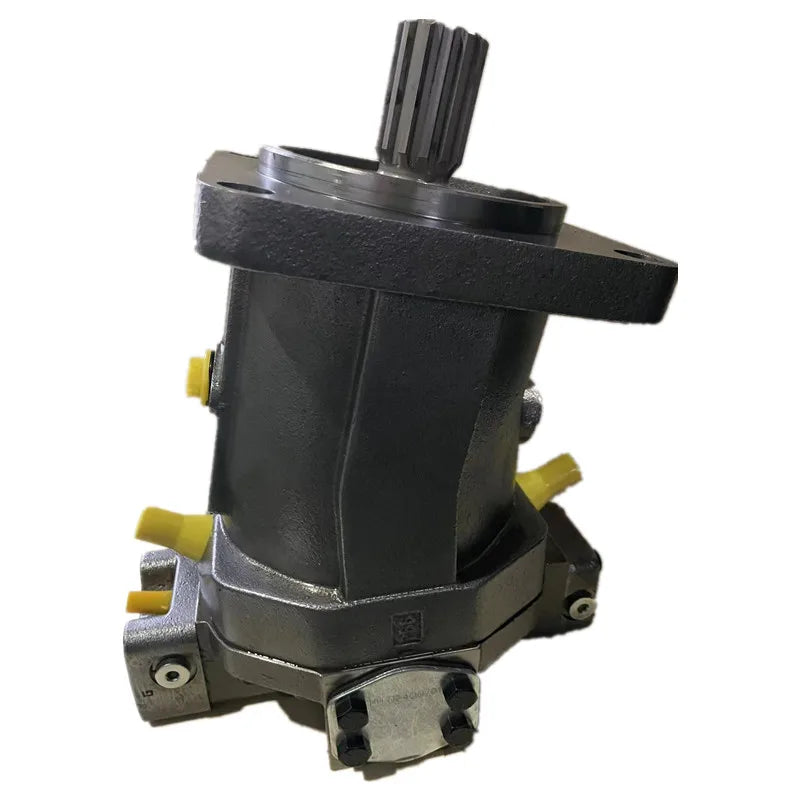

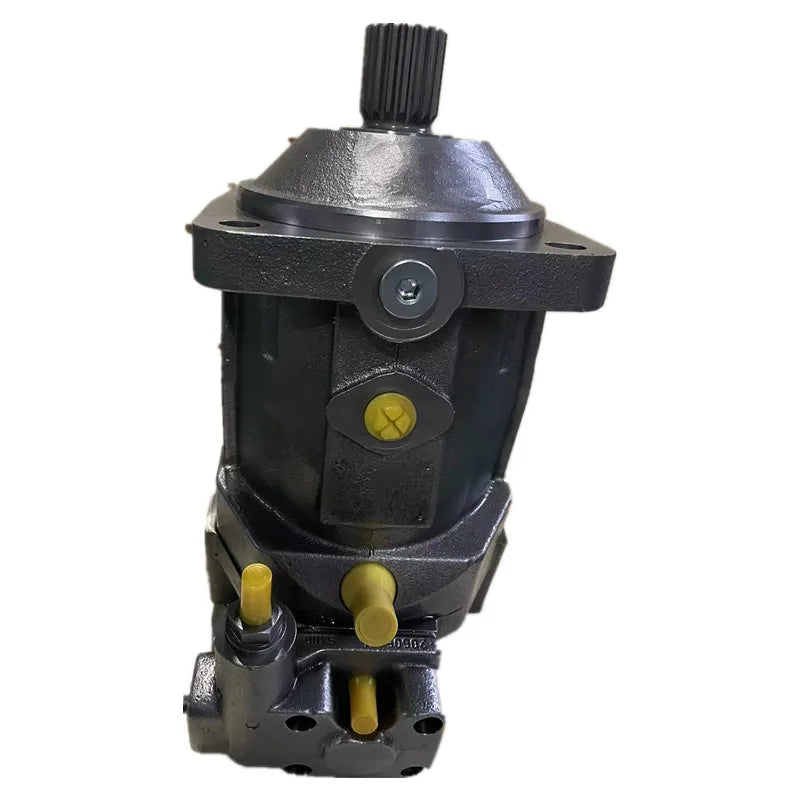

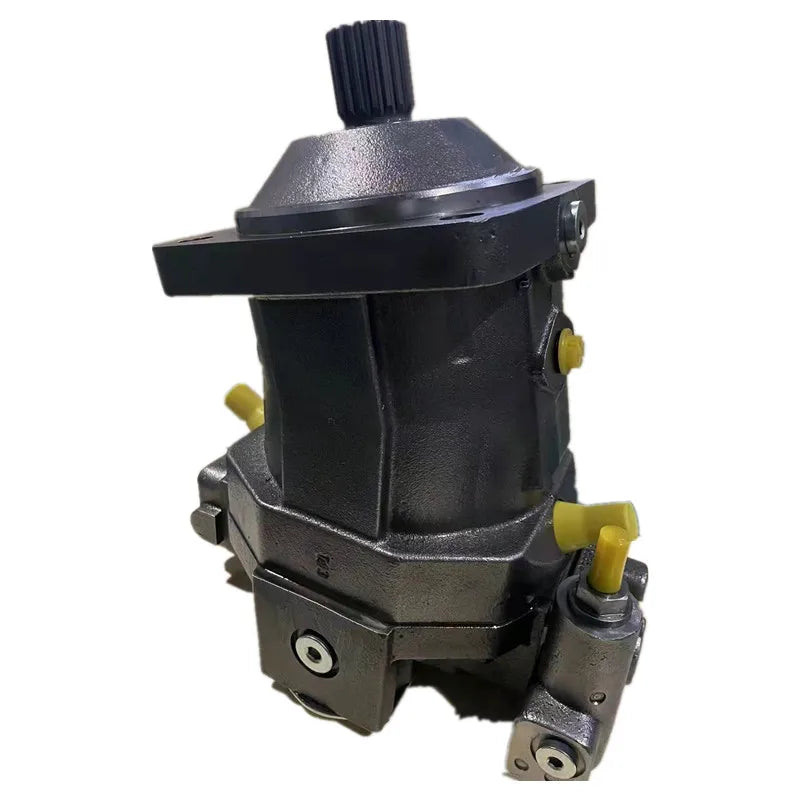

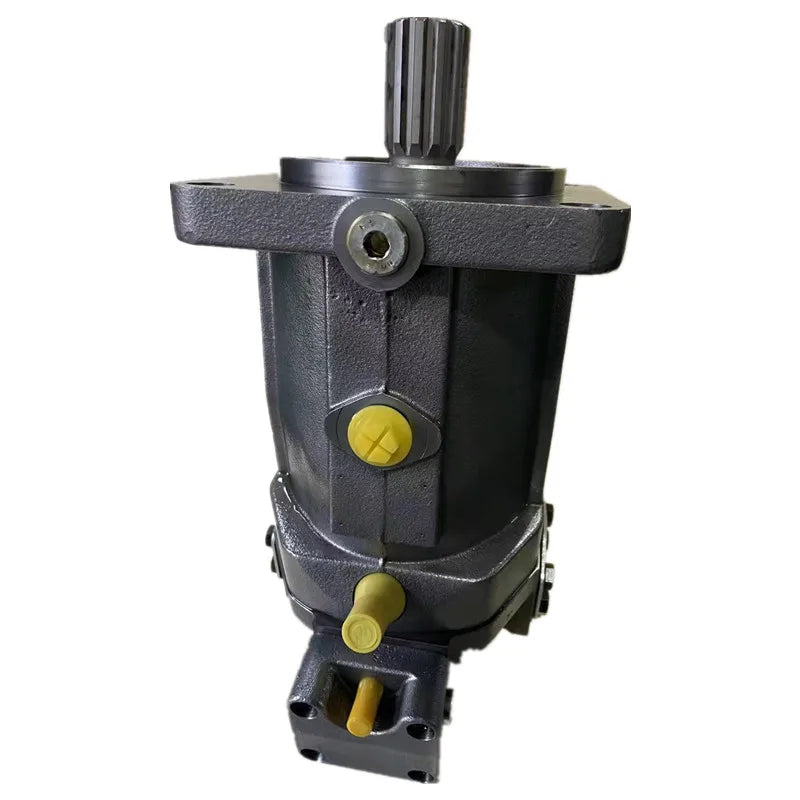

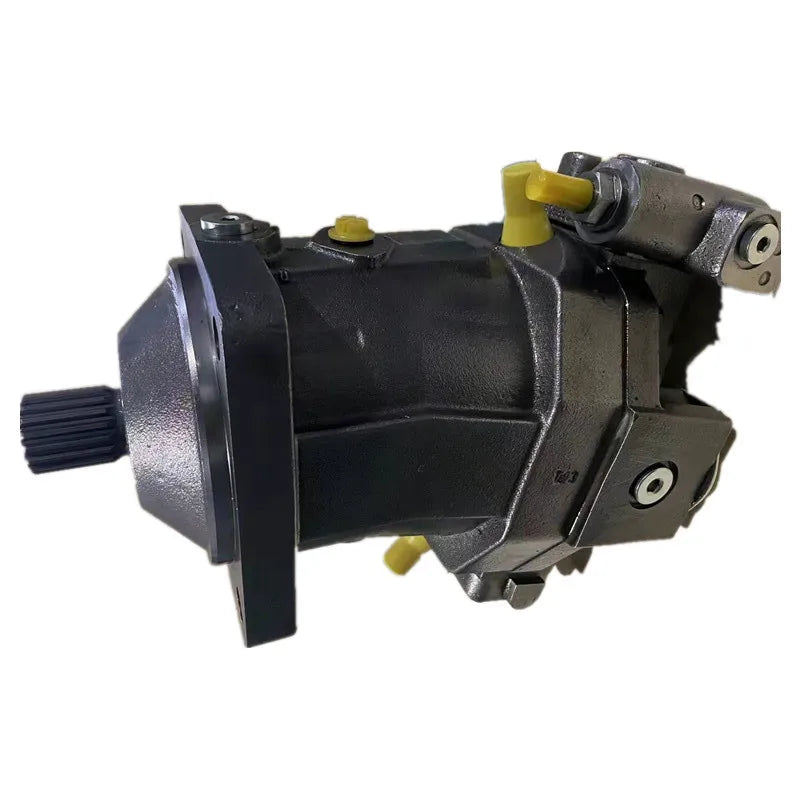

Bent Axis Piston Pumps

Bent axis piston pumps tilt the whole cylinder block at an angle to the shaft, often up to 40 degrees. The pistons drive the shaft flange directly, so friction stays low and efficiency stays high, even at high speed. They handle tough peak pressures and are a favourite for cranes, winches, forestry machines and truck-mounted equipment.

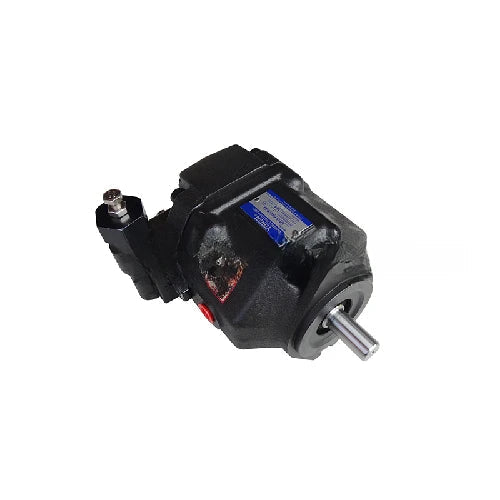

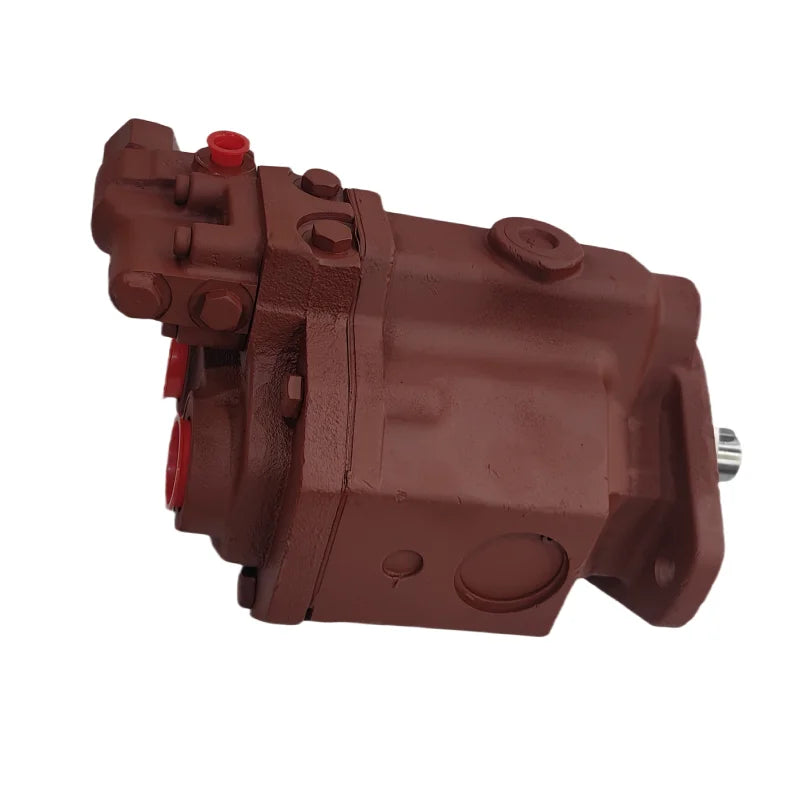

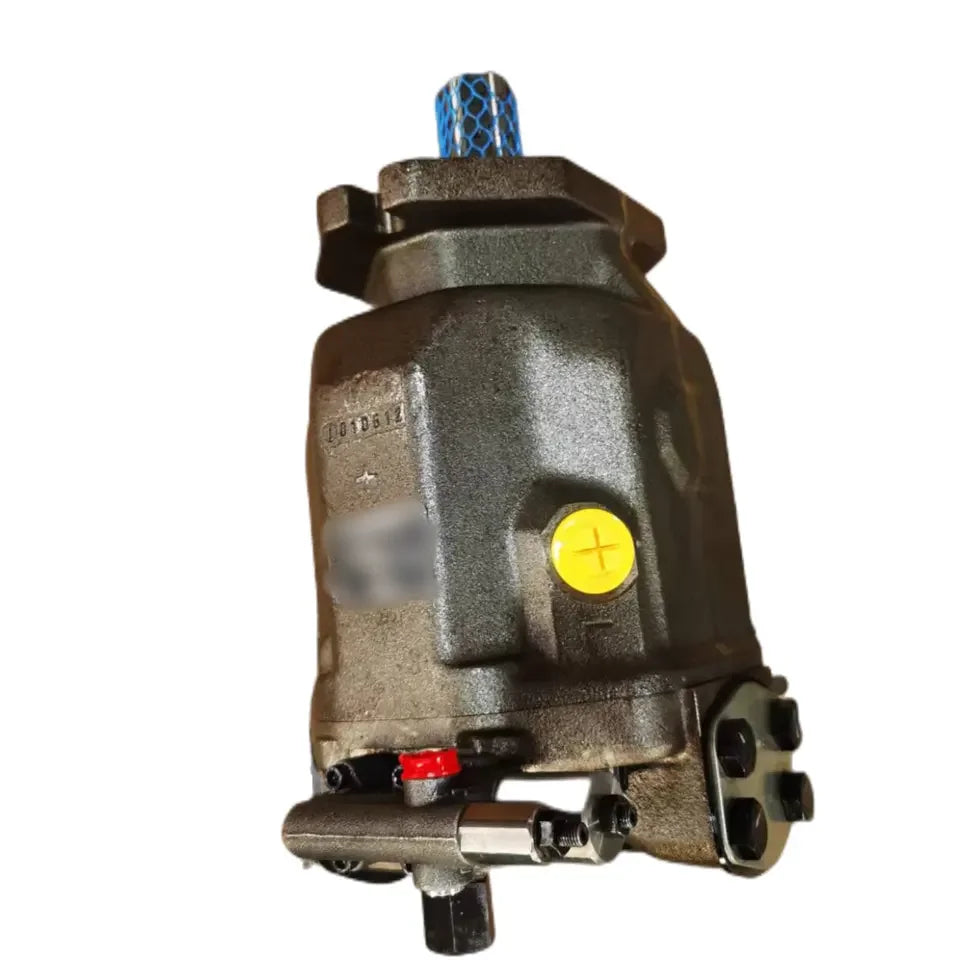

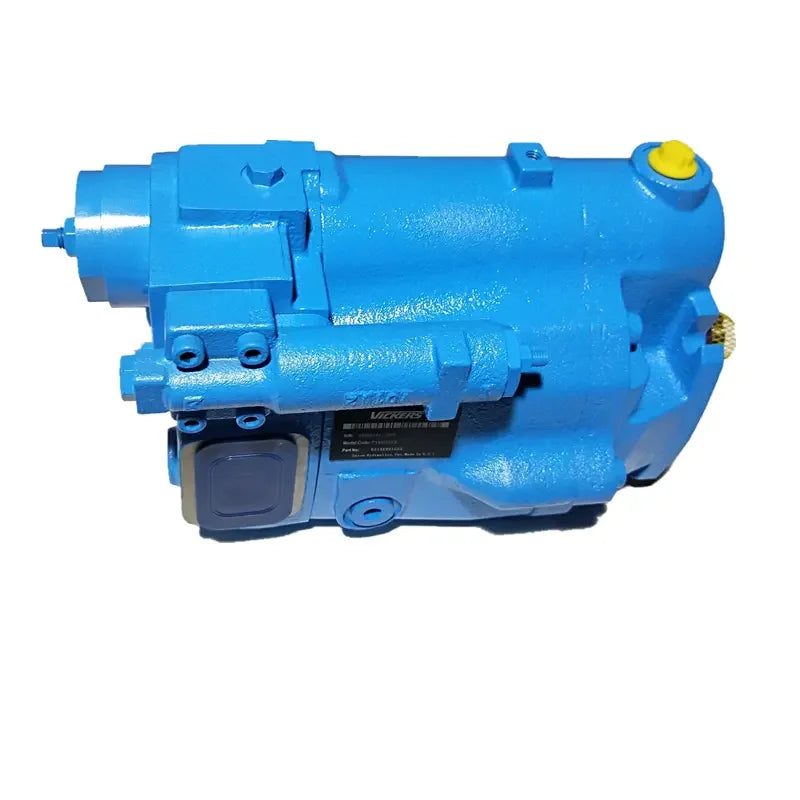

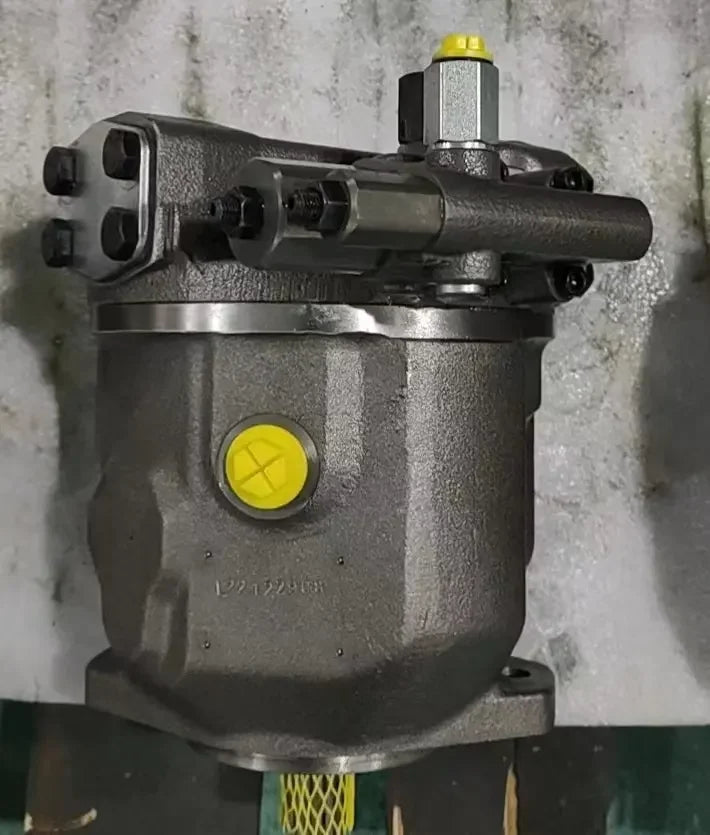

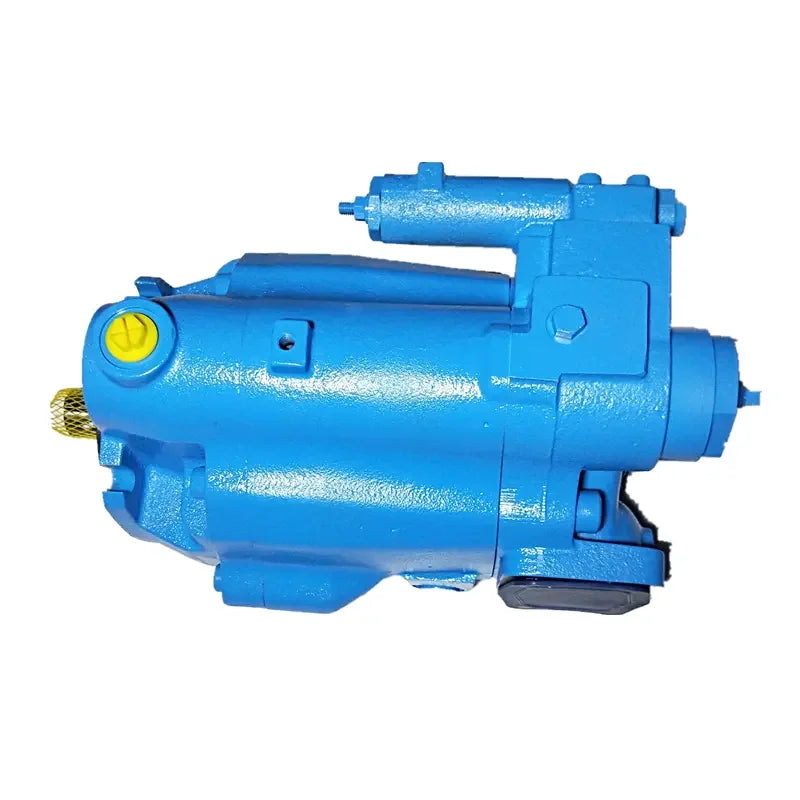

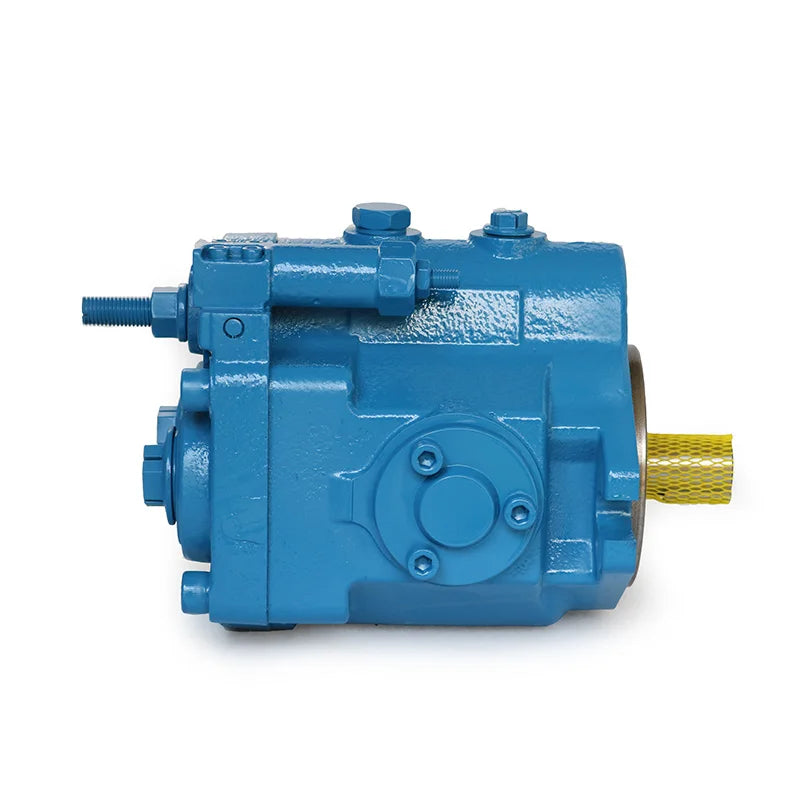

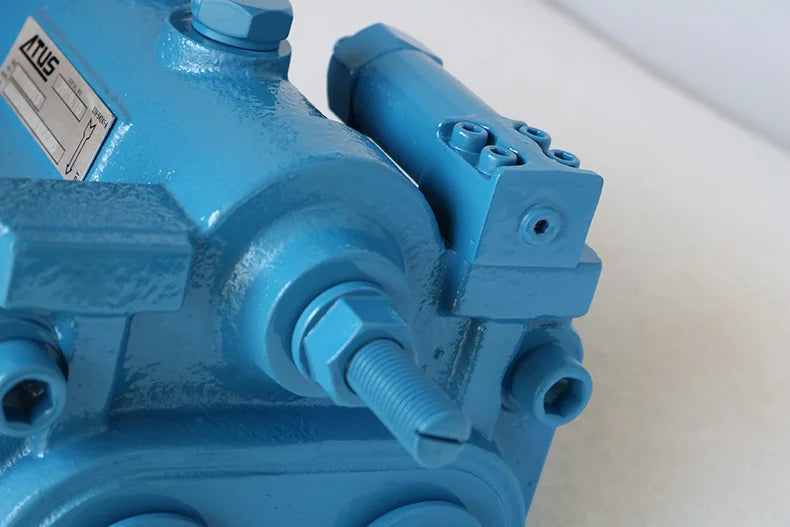

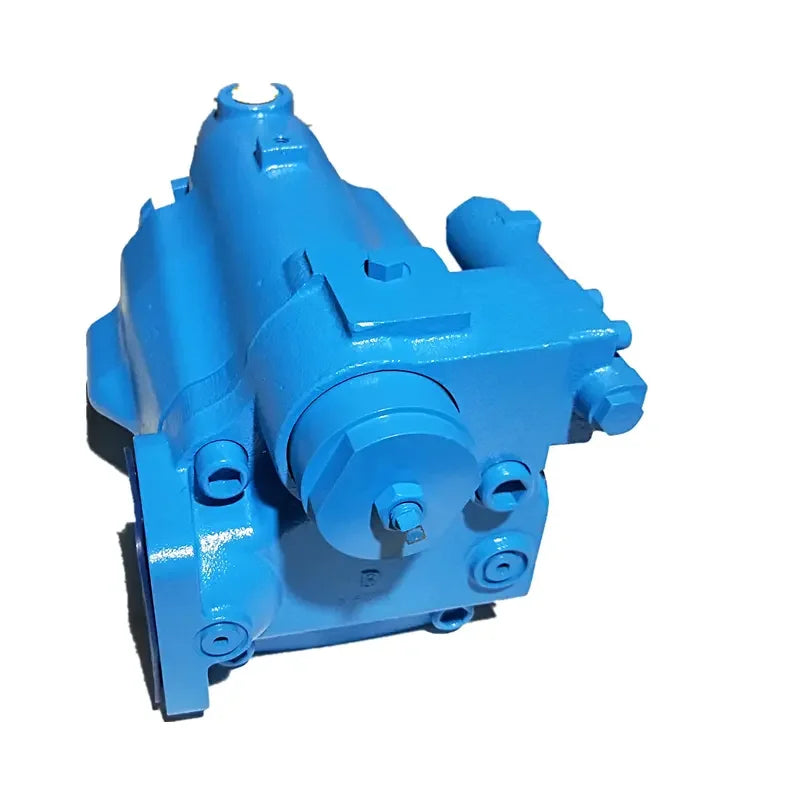

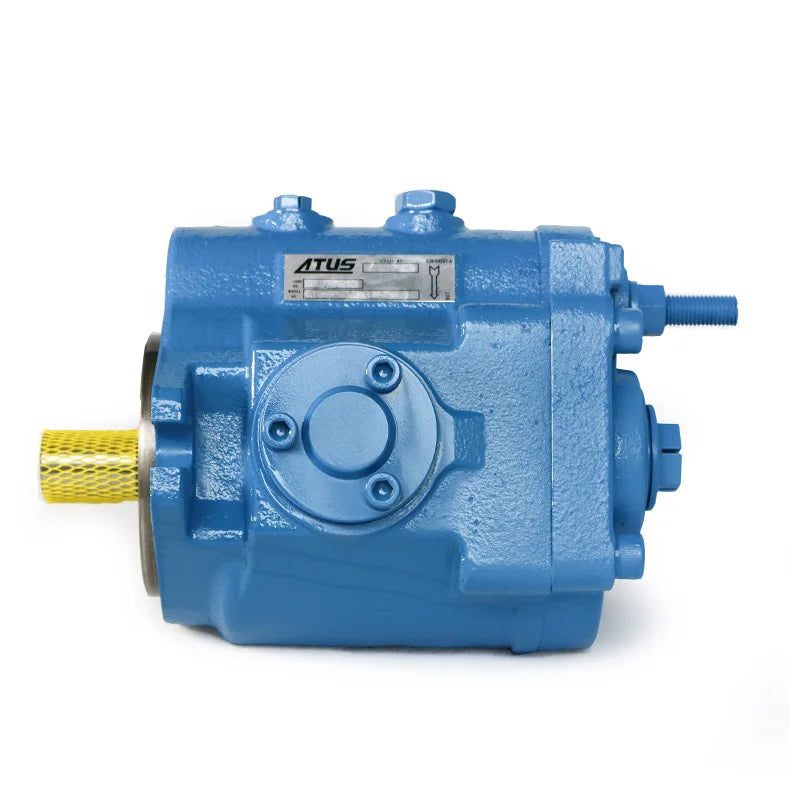

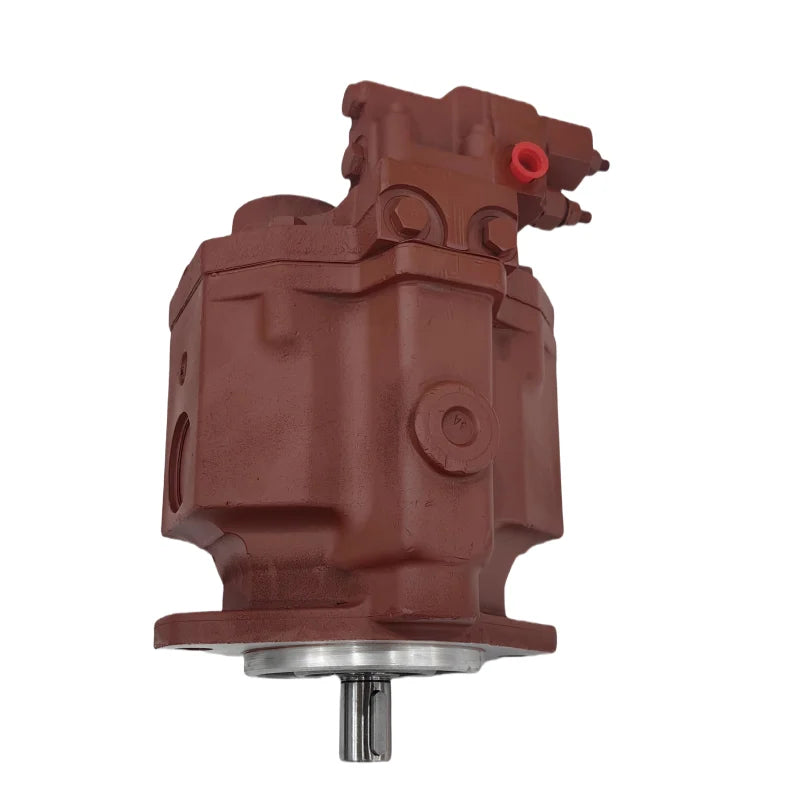

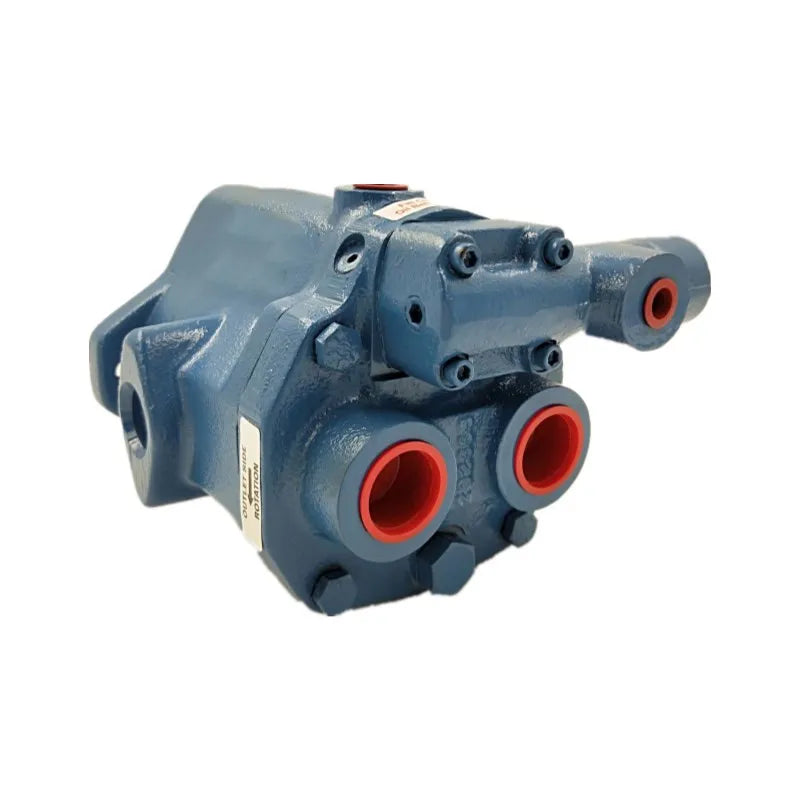

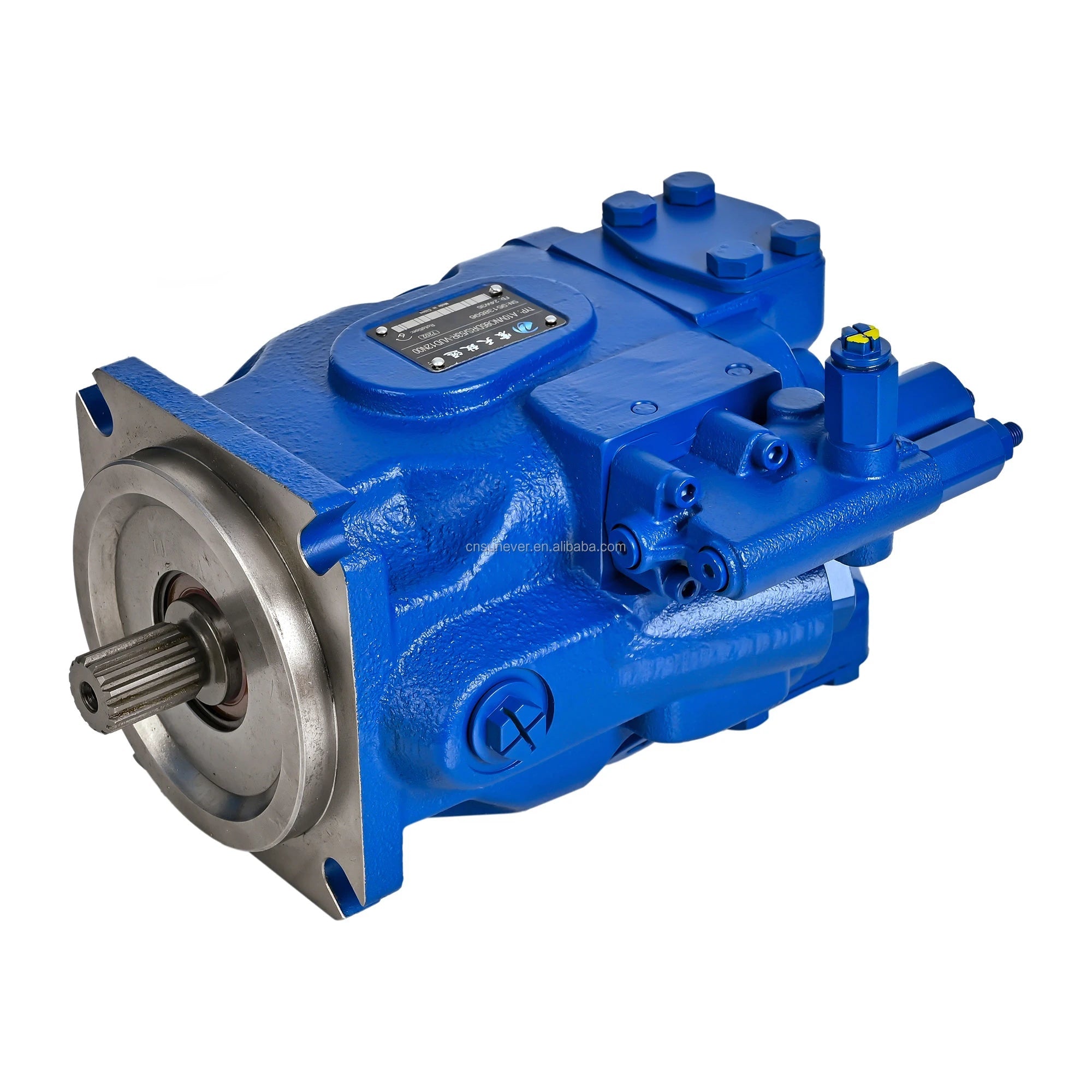

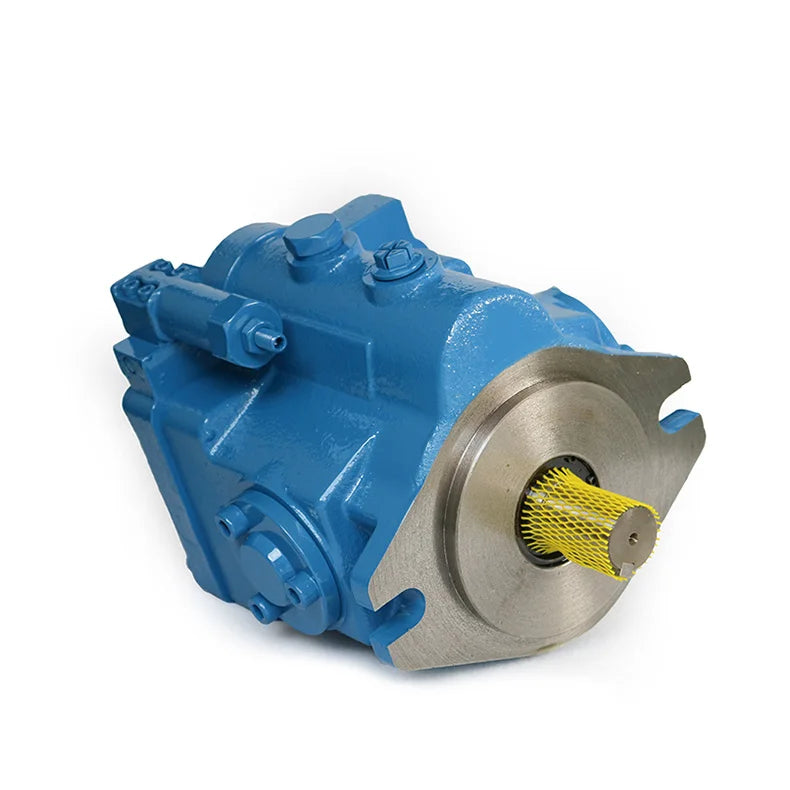

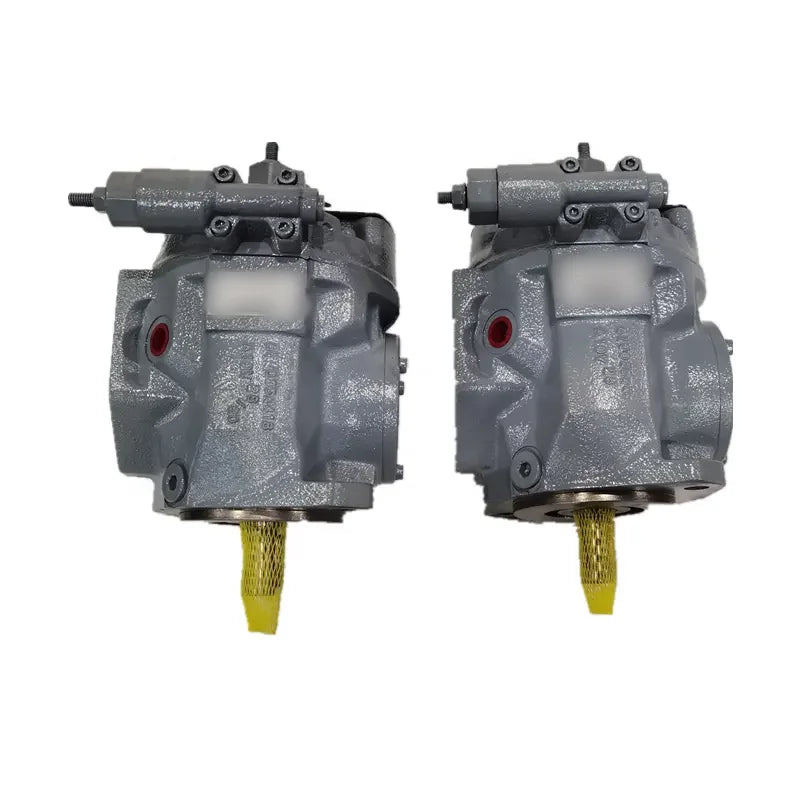

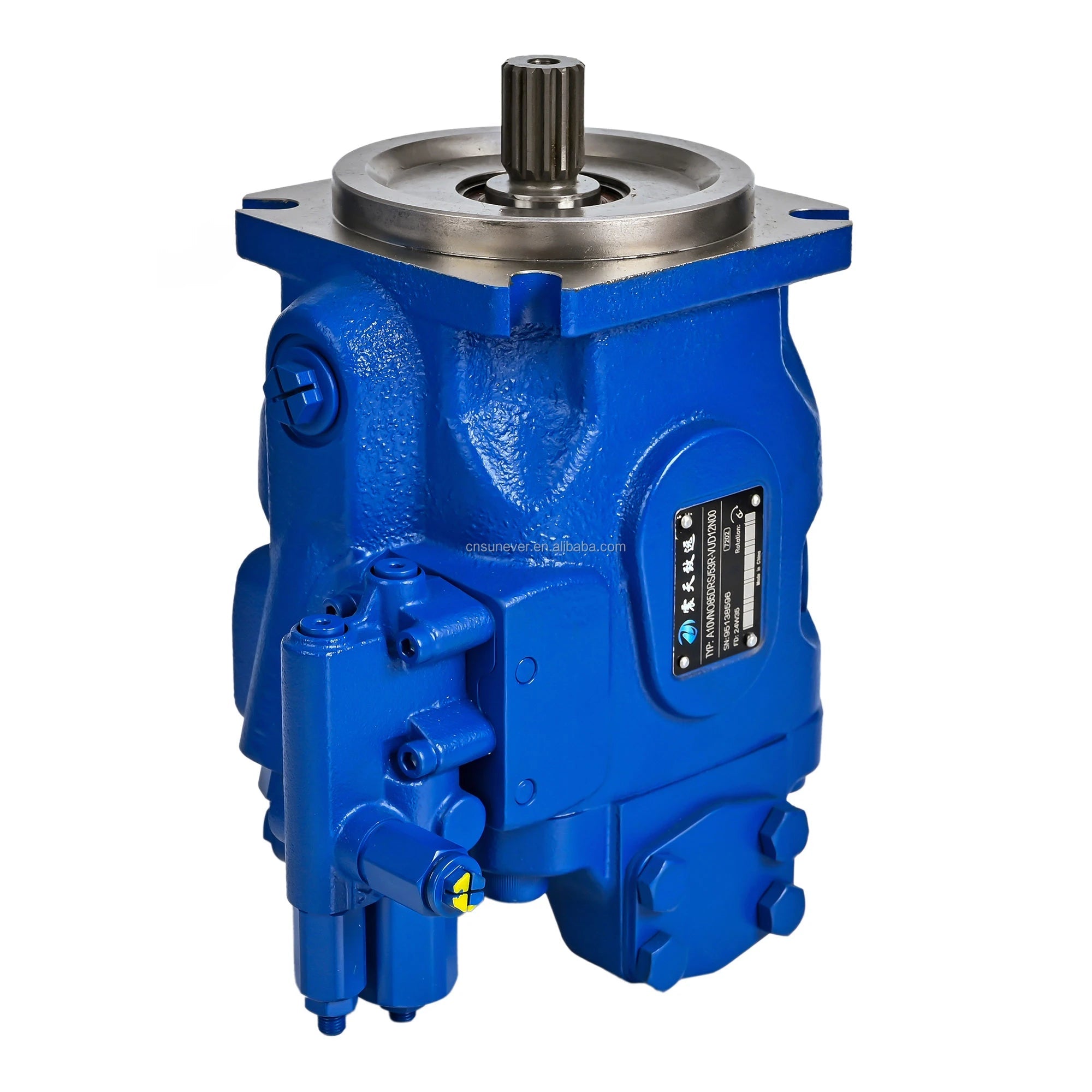

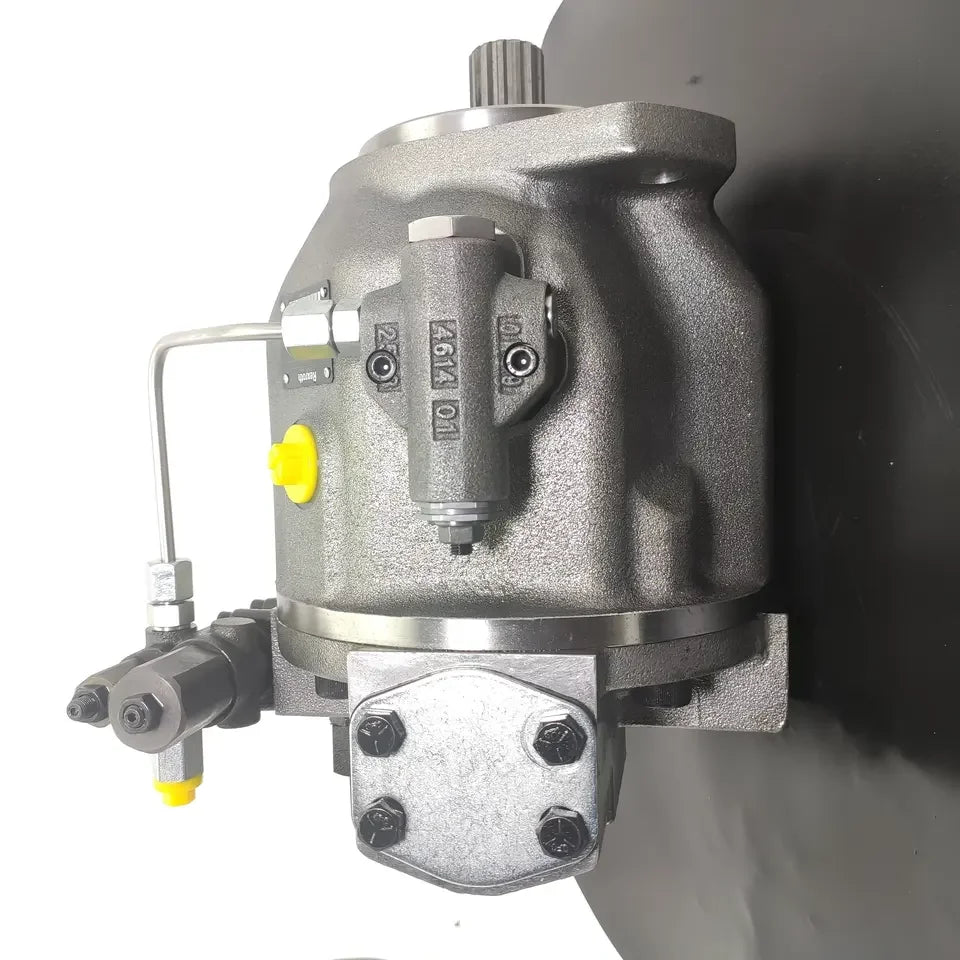

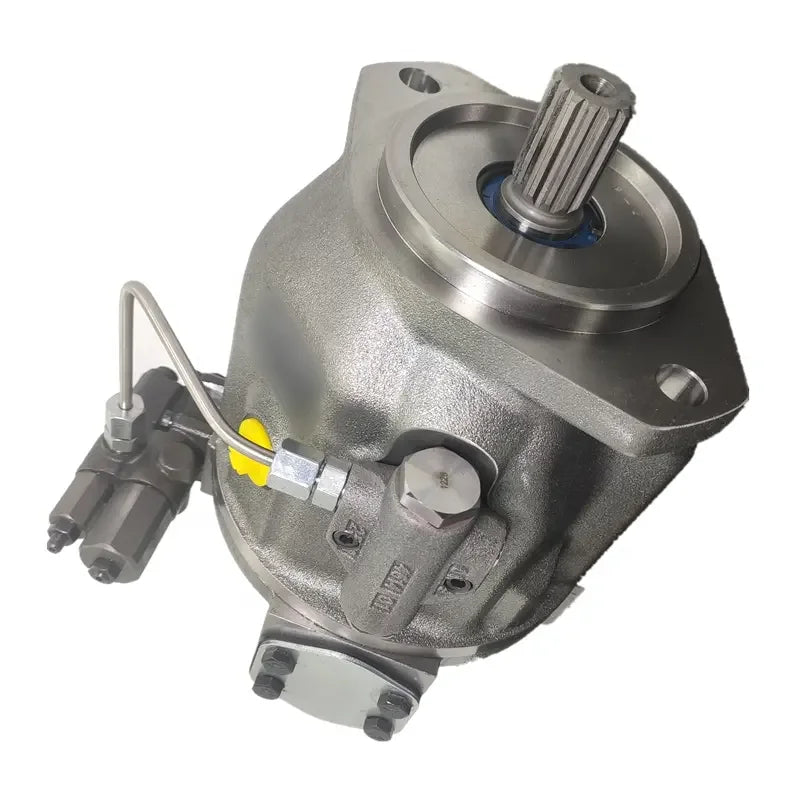

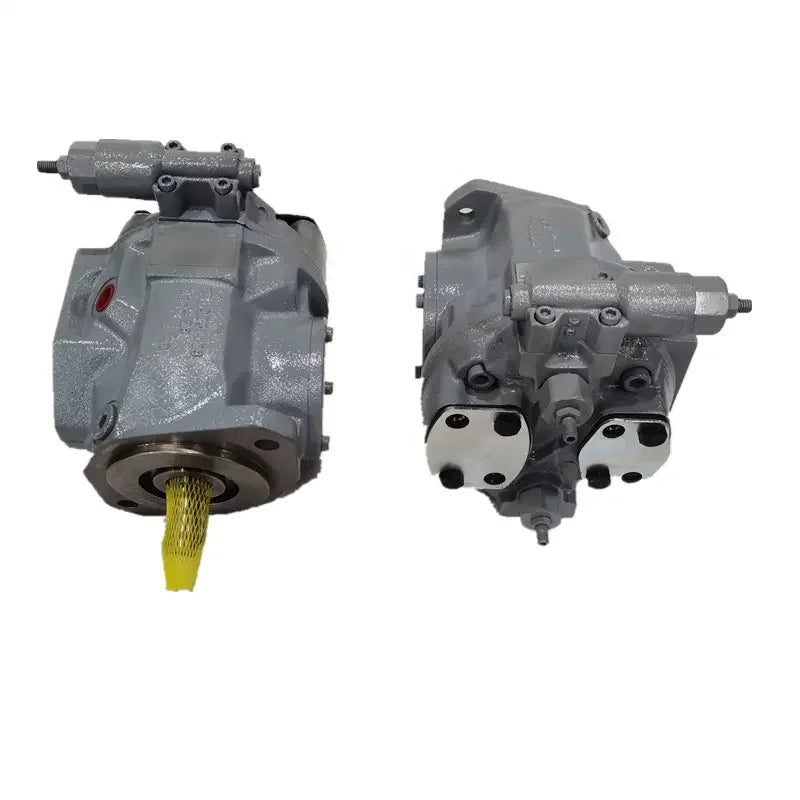

Variable Displacement Axial Piston Pumps

Variable displacement axial piston pumps change their output while running. A control moves the swash plate, or swings the cylinder block on bent axis designs, to deliver only the flow the machine needs. Less wasted flow means less heat, lower fuel or power bills and a longer life for your oil.

Swash Plate or Bent Axis? A Quick Guide

Still deciding? Weigh up these points:

• Size: swash plate pumps are shorter and lighter. Bent axis pumps need more room along the shaft.
• Efficiency: bent axis pumps usually win, especially at high speed and high pressure.
• Controls: swash plate pumps take the widest range of pressure, flow and power controls.
• Tandem setups: swash plate pumps with a through drive make stacking easy.
• Starting torque: bent axis designs perform well when a motor or winch must start under load.
• Cost: swash plate pumps are usually the more affordable of the two.

Rule of thumb: pick swash plate for compact, controllable industrial and mobile circuits. Pick bent axis when efficiency, speed and heavy peak loads matter most.

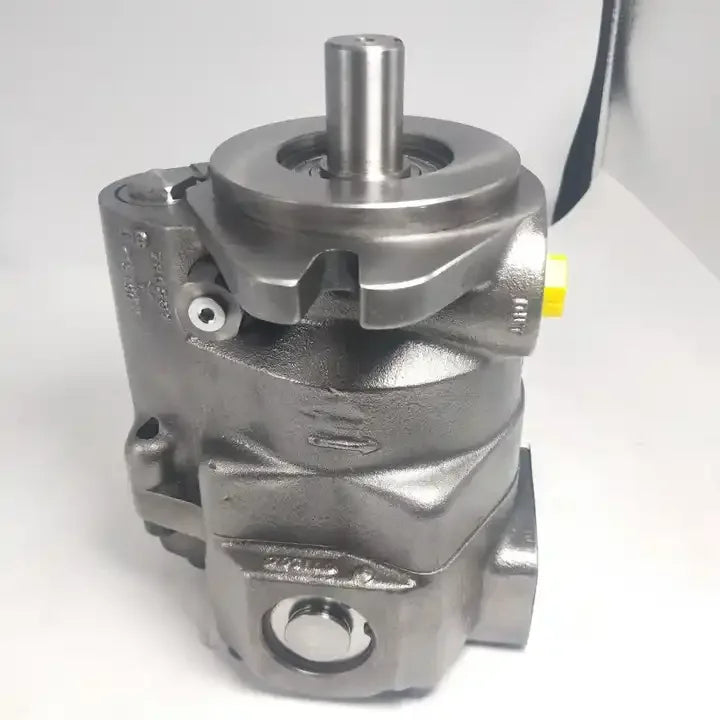

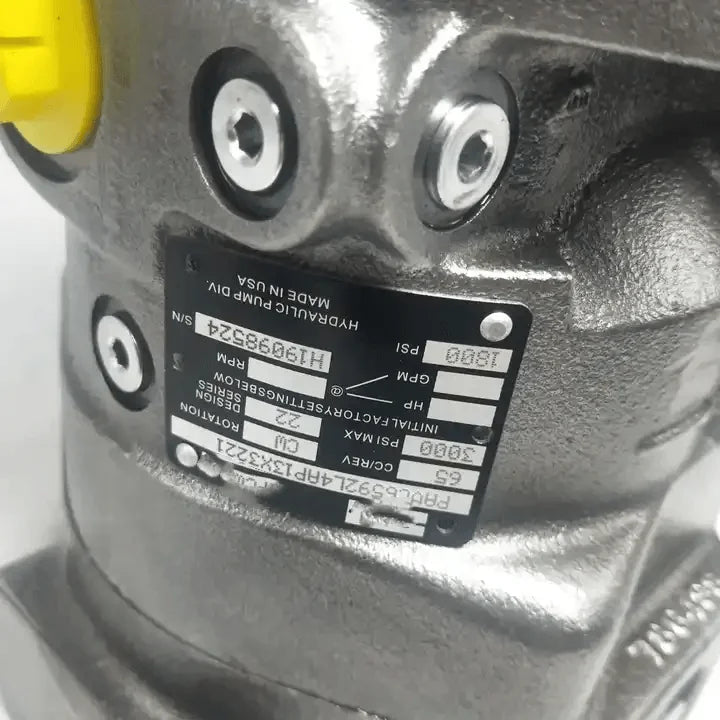

Axial Piston Pumps Specifications That Decide the Fit

Two pumps with the same displacement can still refuse to fit. Check every item below against your old unit:

• Displacement: from under 10 cc/rev to well over 250 cc/rev.

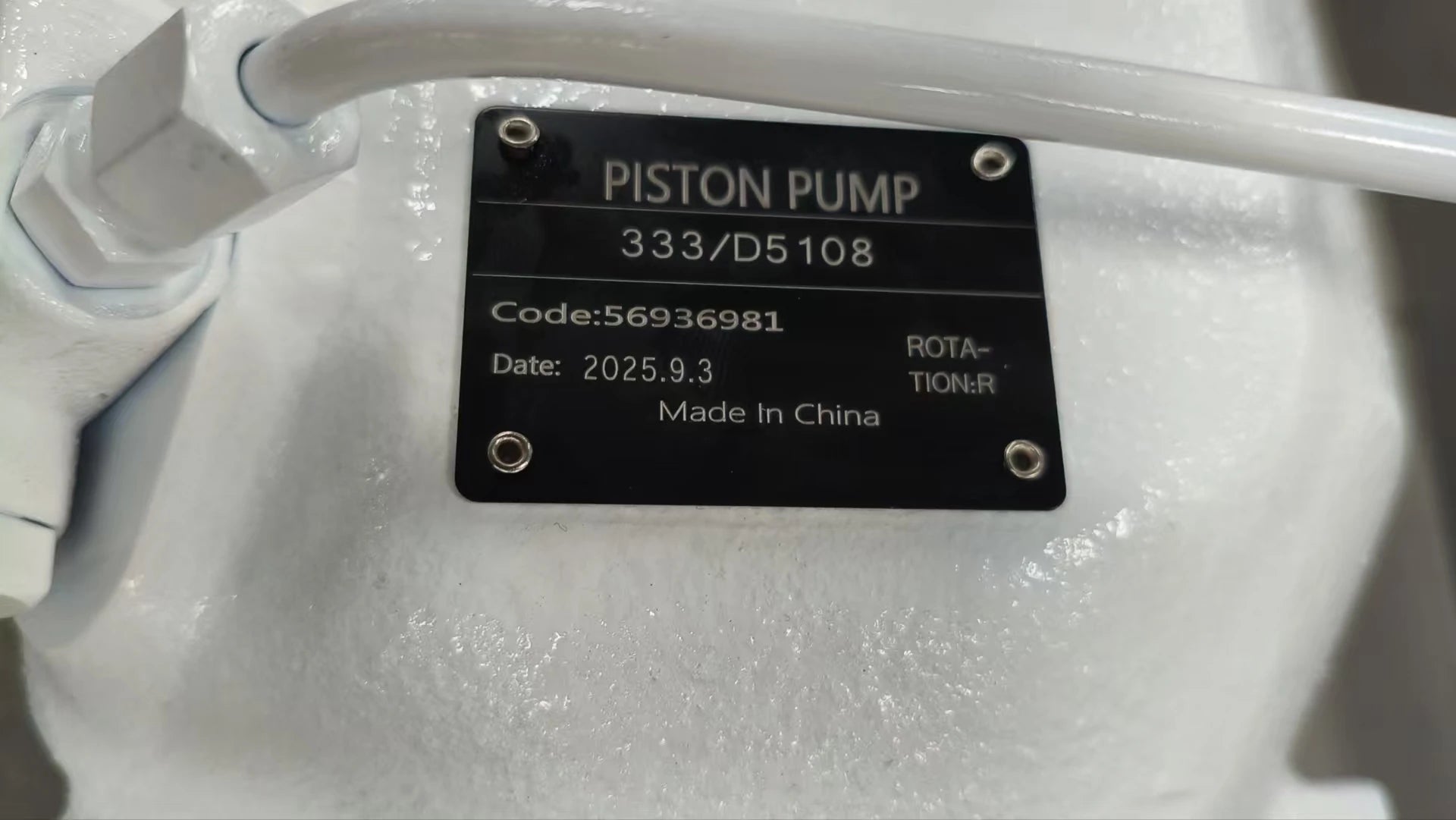

• Rotation: clockwise or anticlockwise, viewed from the shaft end.
• Mounting flange: SAE A, B, C or D, or a metric ISO flange, with 2 or 4 bolts.
• Shaft: keyed or splined, with the right diameter or spline count.
• Port positions: side or rear ports, plus the thread or flange type.

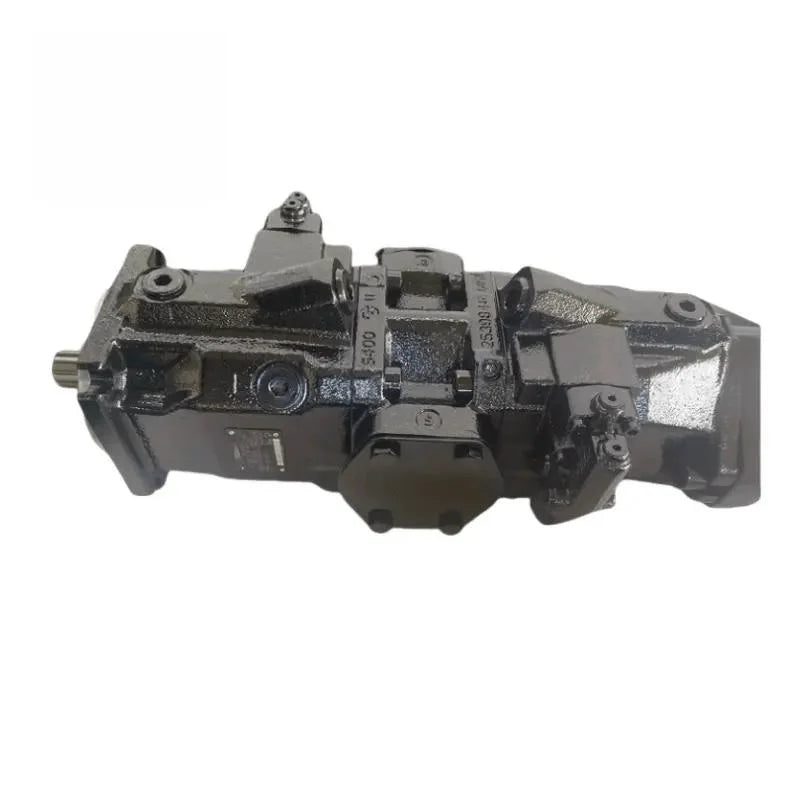

• Through drive: needed if a second pump bolts to the back.

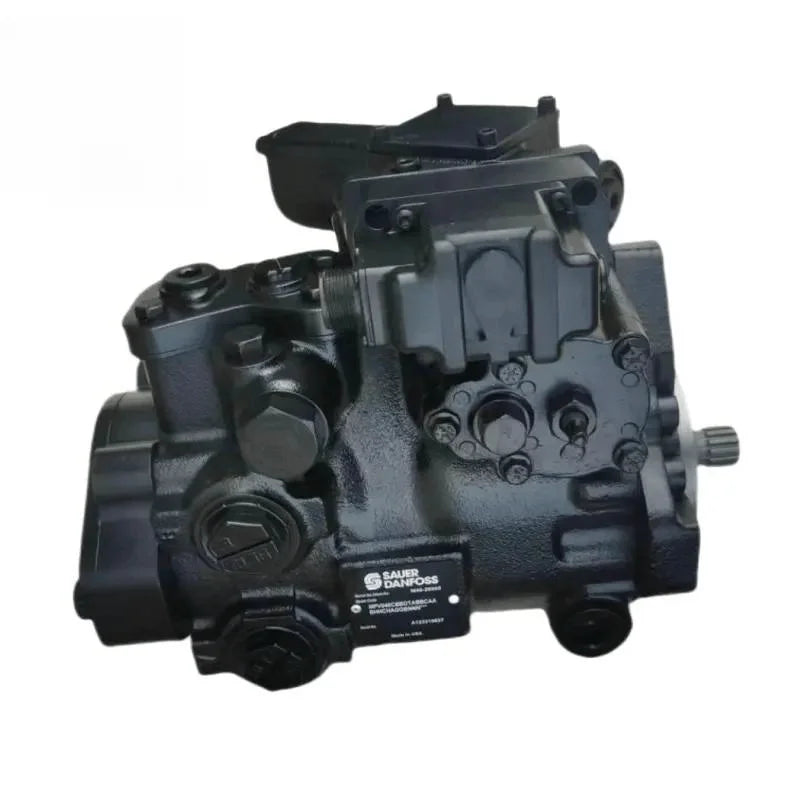

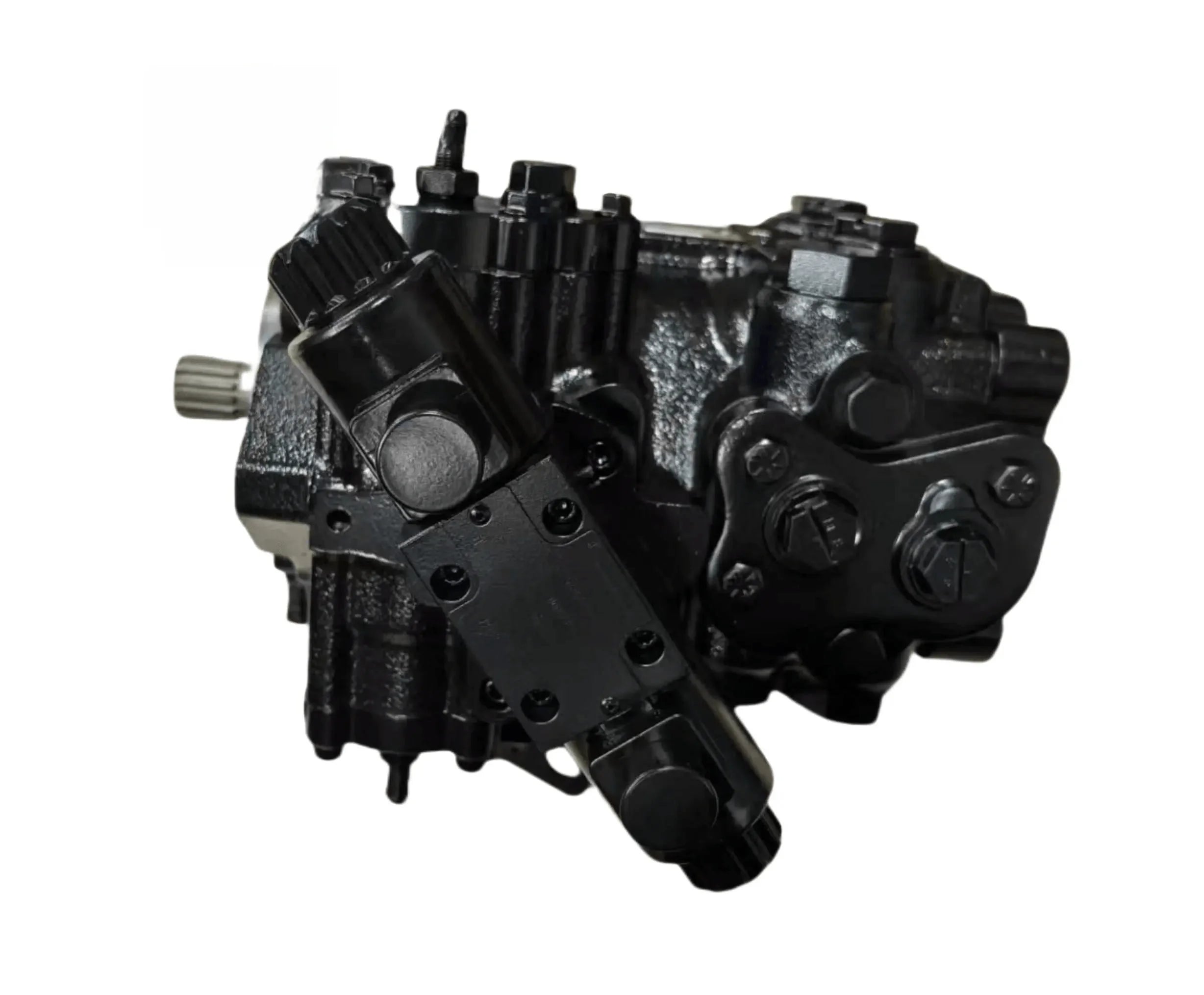

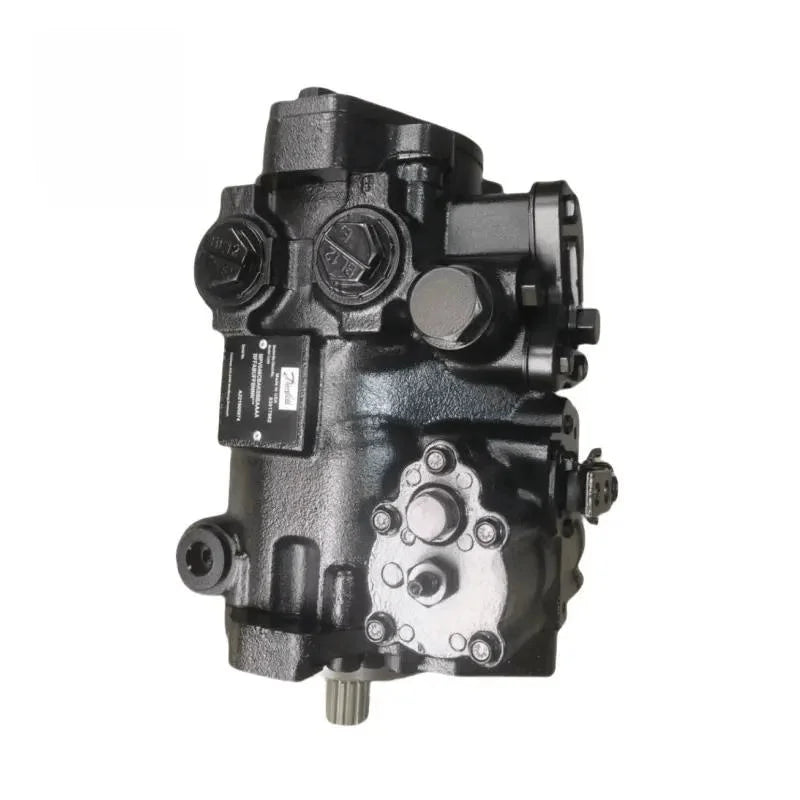

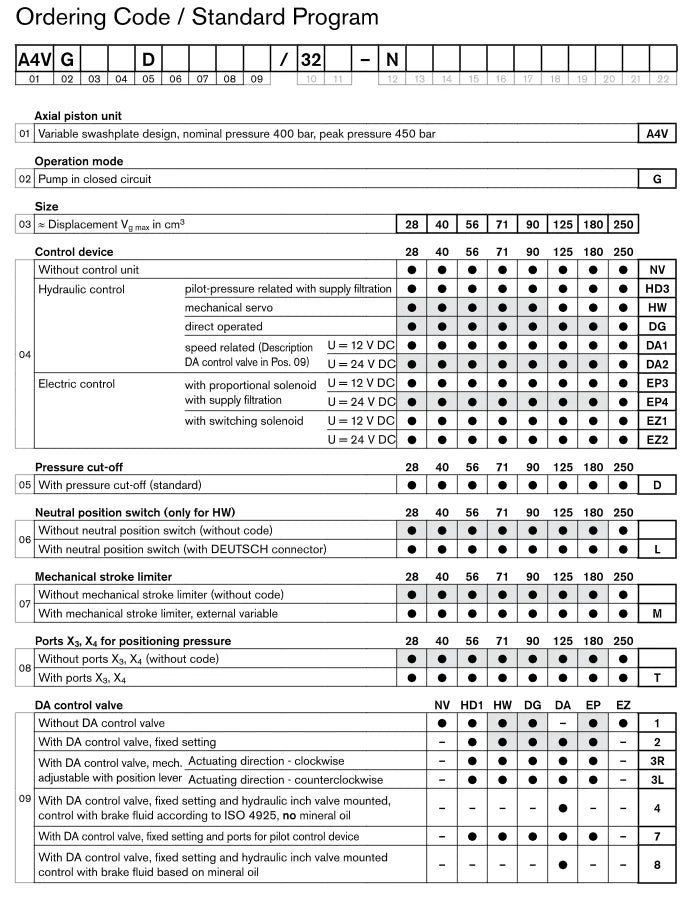

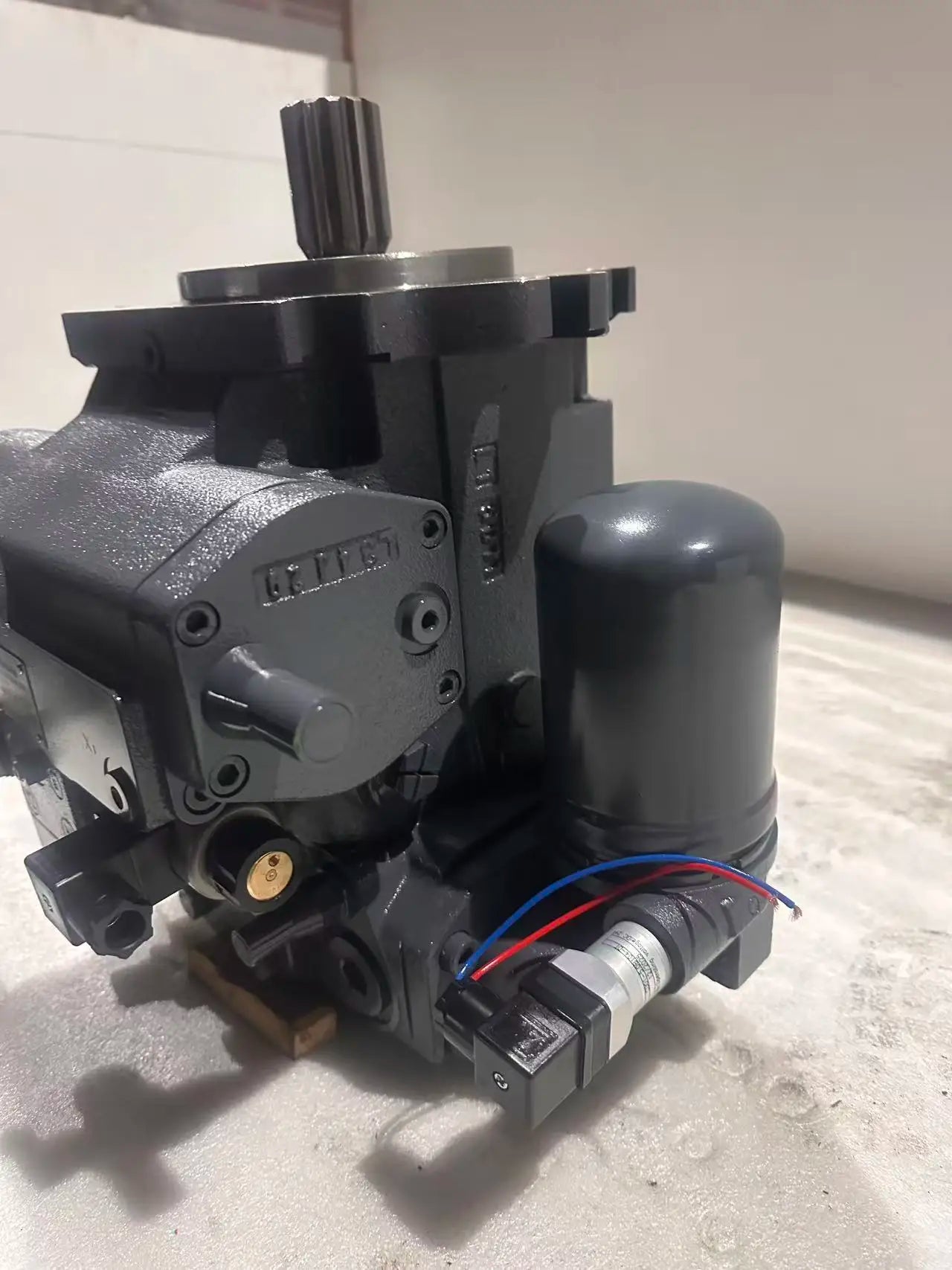

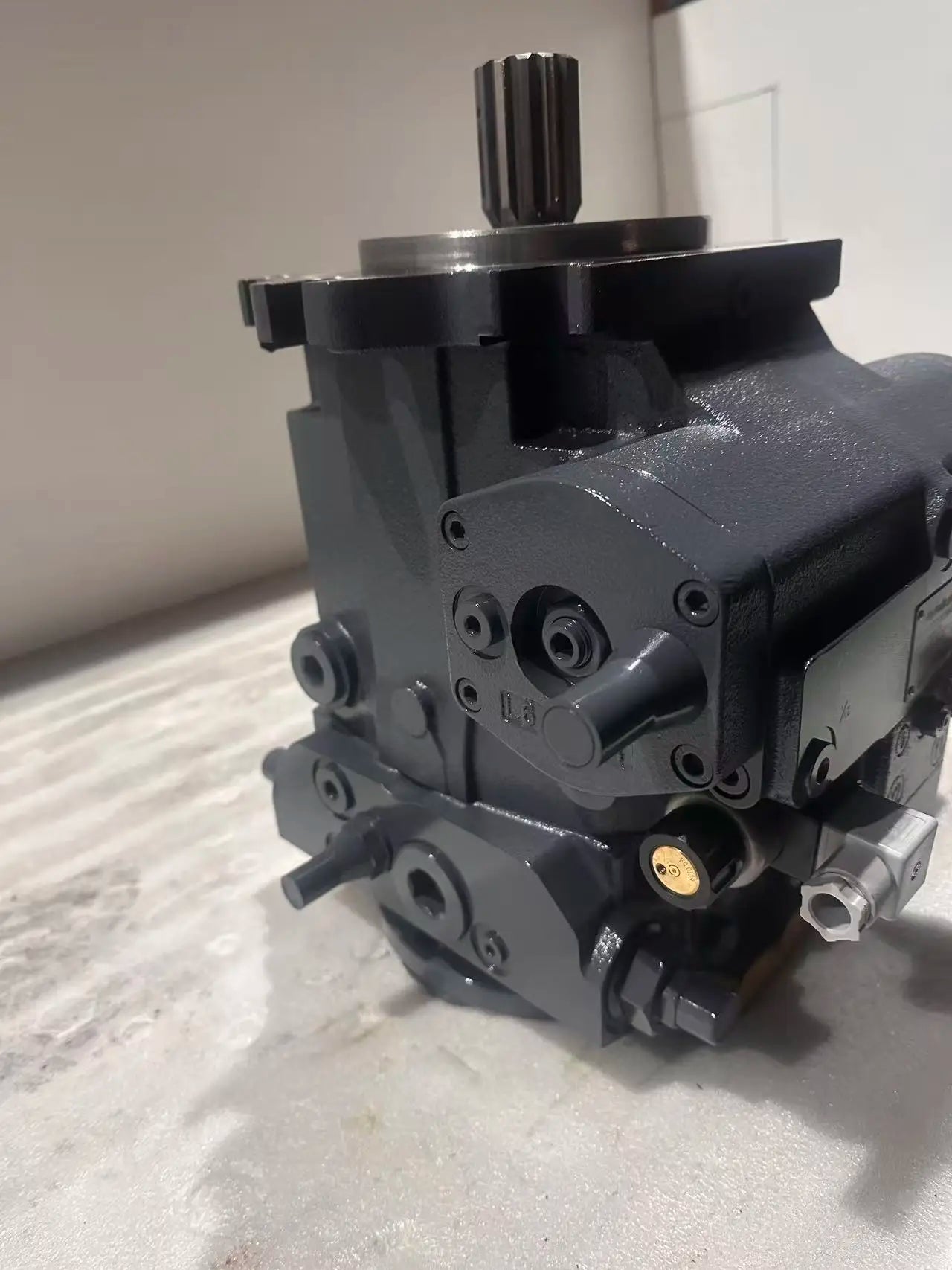

• Circuit type: open circuit, or closed circuit with a built-in charge pump, such as the Danfoss Series 90 used on hydrostatic drives.

Not sure about your duty point? Our pump selection and sizing service checks flow, pressure and power before you buy.

Mobile Machines and Industrial Plant

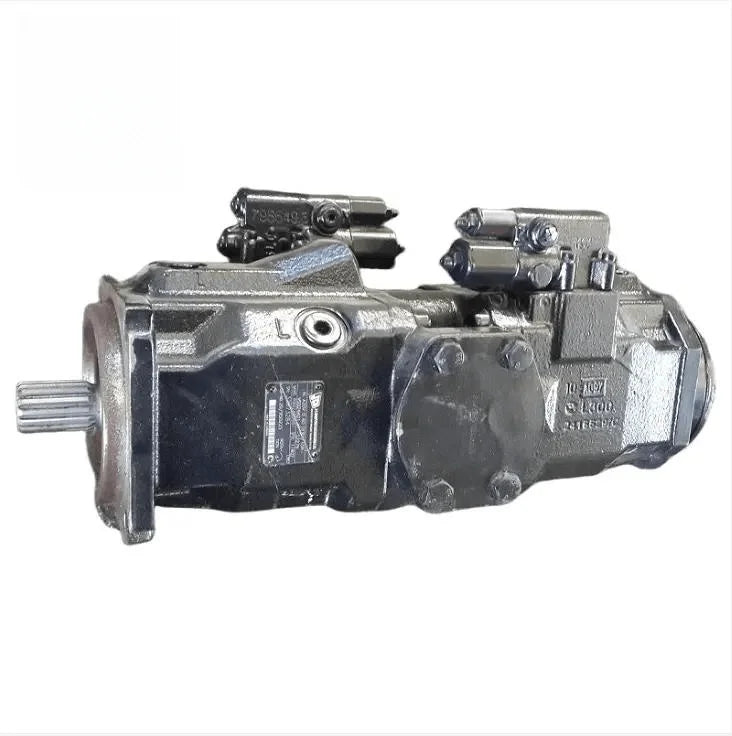

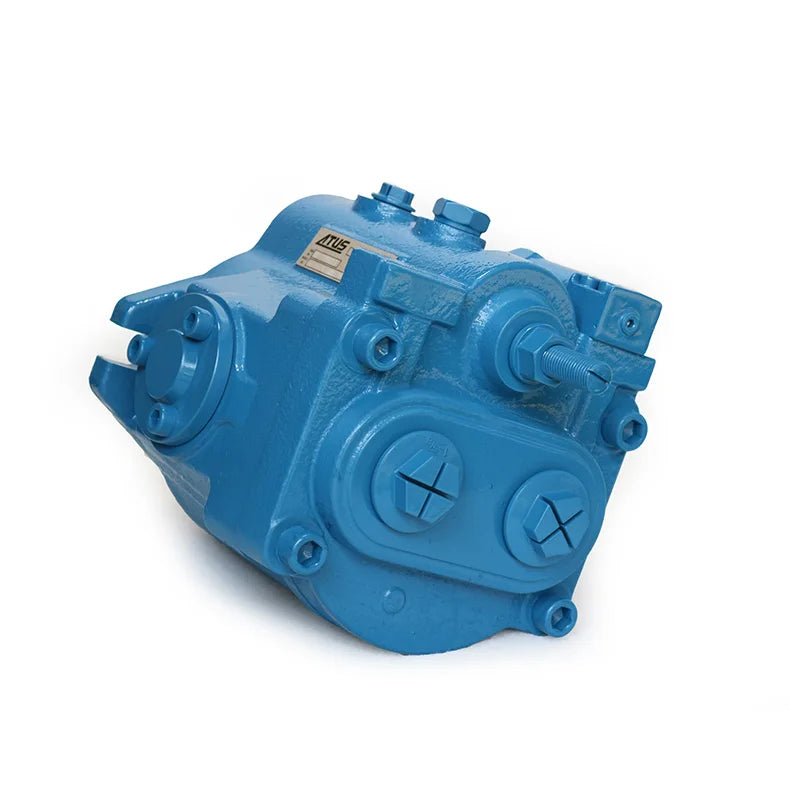

Mobile Machines

On excavators, loaders and drill rigs, axial piston pumps usually run in tandem, with load sensing or power controls that share engine power between functions. We supply pumps for mining equipment, construction plant and forestry machines, including replacements for the self-regulating Linde pumps found on many European machines.

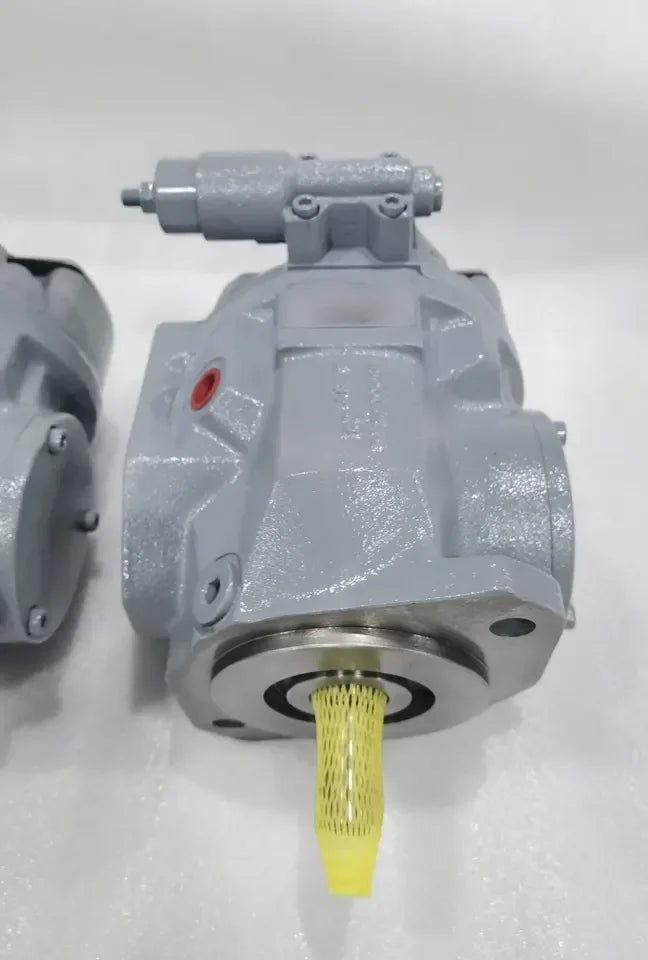

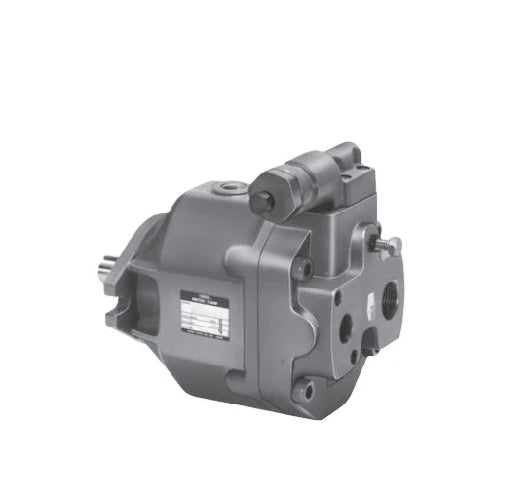

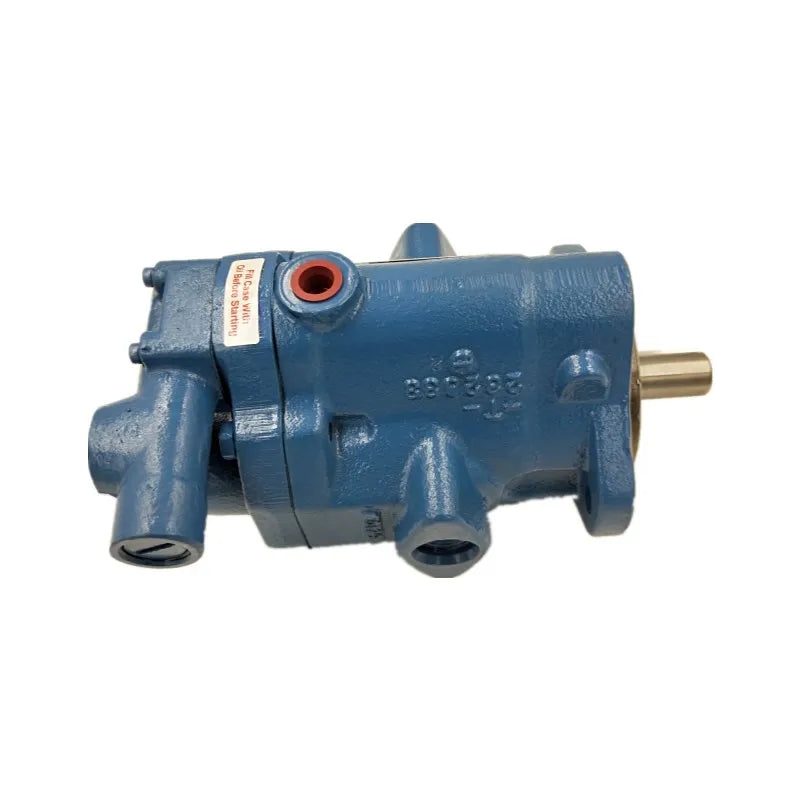

Industrial Plant

In factories, axial piston pumps power injection moulding machines, presses and test benches. Most sit on hydraulic power units with a pressure-compensated or proportional control, running long hours at steady speed. Here, quiet running and fine control matter more than raw speed.

Five Signs Your Axial Piston Pump Is Wearing Out

Axial pumps rarely fail without warning. Watch for these signs:

1. Cylinders slow down under load, even at full engine or motor speed.
2. Case drain flow climbs above the maker's figure.
3. The pump case runs much hotter than the tank.
4. A new whine, knock or rattle appears and changes with pressure.
5. Oil leaks from the shaft seal, often because of a blocked case drain.

Inside the pump, the parts that wear first are usually the valve plate, the piston slippers and the swash plate face. Dirty oil speeds this up, so change your filters on schedule and test the oil once or twice a year.

When Another Pump Makes More Sense

Axial designs are not always the answer. If you need pressure above 450 bar in a compact body, look at our radial piston pumps. For simple, low-cost duties under about 200 bar, gear and vane options in our wider hydraulic pumps range may save you money.
